WU90-MDFTJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )1W

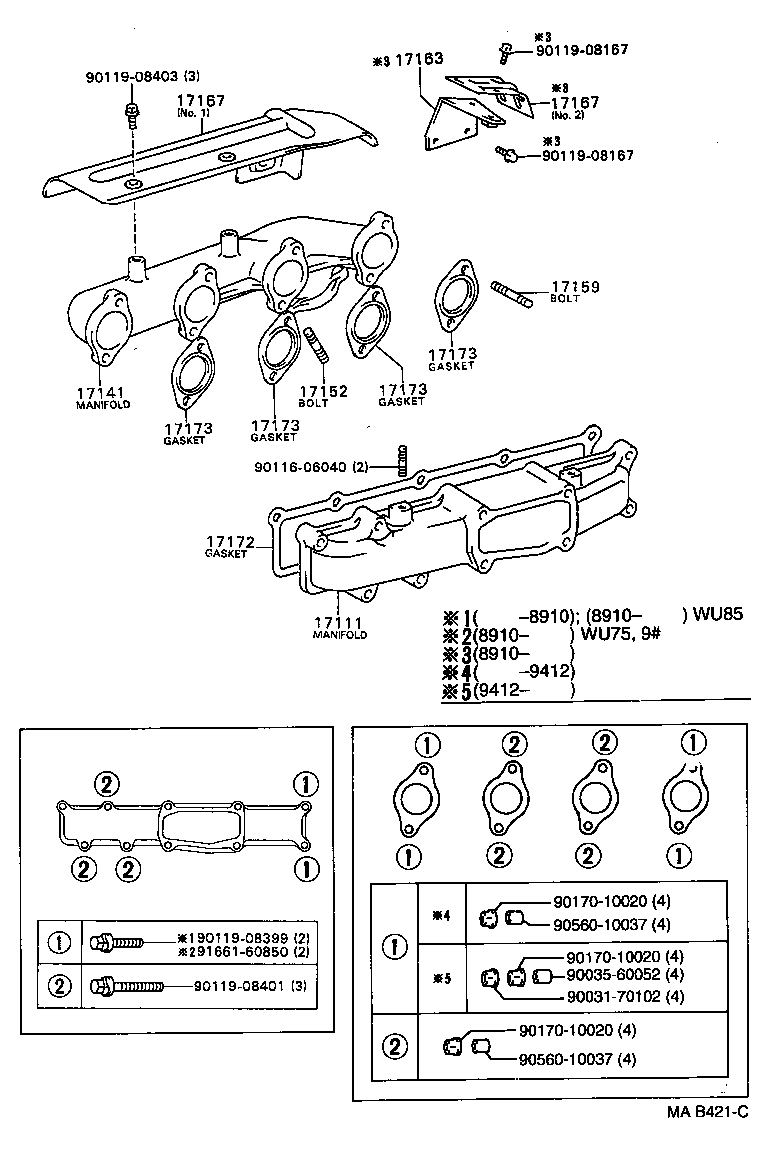

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17163 17167 17167 17172 17173 17173 17173 17173 9003170102 9003560052 9011606040 9011908167 9011908167 9011908399 9011908401 9011908403 9017010020 9017010020 9017010020 9056010037 9056010037 9166160850
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-78010

1W..WU75,85,9#

 1
17141 - MANIFOLD, EXHAUST
17141-78010

1W..WU75,9#

 1
17141-78020

1W..WU75,85,9#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10110

1W..WU75,85,9#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10077

1W..WU75,85,9#

NO.2

 4
90031-16051

1W..WU75,85,9#

NO.1

 4
90116-10077

1W..WU75,85,9#

 8
90116-10077

1W..WU75,90,95

ｶﾝﾚｲﾁ ｼﾖｳ

 8
17163 - BRACKET, HEAT INSULATOR, NO.1
17163-78010

1W..WU75,9#;1W..WU85..DYN;1W..WU85..TOY..T3

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56023

1W..WU75,85,9#

NO.1

 1
17167-78010

1W..WU75,9#;1W..WU85..DYN;1W..WU85..TOY..T3

NO.2

 1
17167-78020

1W..WU75,85,9#

NO.1

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56023

1W..WU75,85,9#

NO.1

 1
17167-78010

1W..WU75,9#;1W..WU85..DYN;1W..WU85..TOY..T3

NO.2

 1
17167-78020

1W..WU75,85,9#

NO.1

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-78010

1W..WU75,85,9#

 1
17172-78011

1W..WU75,85,9#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78010

1W..WU75,9#

 4
17173-78020

1W..WU75,85,9#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78010

1W..WU75,9#

 4
17173-78020

1W..WU75,85,9#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78010

1W..WU75,9#

 4
17173-78020

1W..WU75,85,9#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-78010

1W..WU75,9#

 4
17173-78020

1W..WU75,85,9#

 4
Common parts
90031-70102
90035-60052
90116-06040
90119-08167
90119-08399
90119-08401
90119-08403
90170-10020
90560-10037
91661-60850
