WU90-MDDTJ3 (1988)
Toyota Dyna/Toyoace
(8808- )BU6#,70,78,8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36120 |
WU75,90,95 |
1 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36120 |
WU75,90,95 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-89102 |
WU75,85,9# |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-89102 |
WU75,85,9# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-89101 |
WU75,85,9# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-89101 |
WU75,85,9# |
1 | ||
| Common parts | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61250 | ||||
| 91651-61050 | ||||
(8808- )BU6#,70,78,8#,9#..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08332 | ||||
| 90119-08900 | ||||
| 90119-10121 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 91611-60812 | ||||
| 91611-61010 | ||||
| 91611-61016 | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||

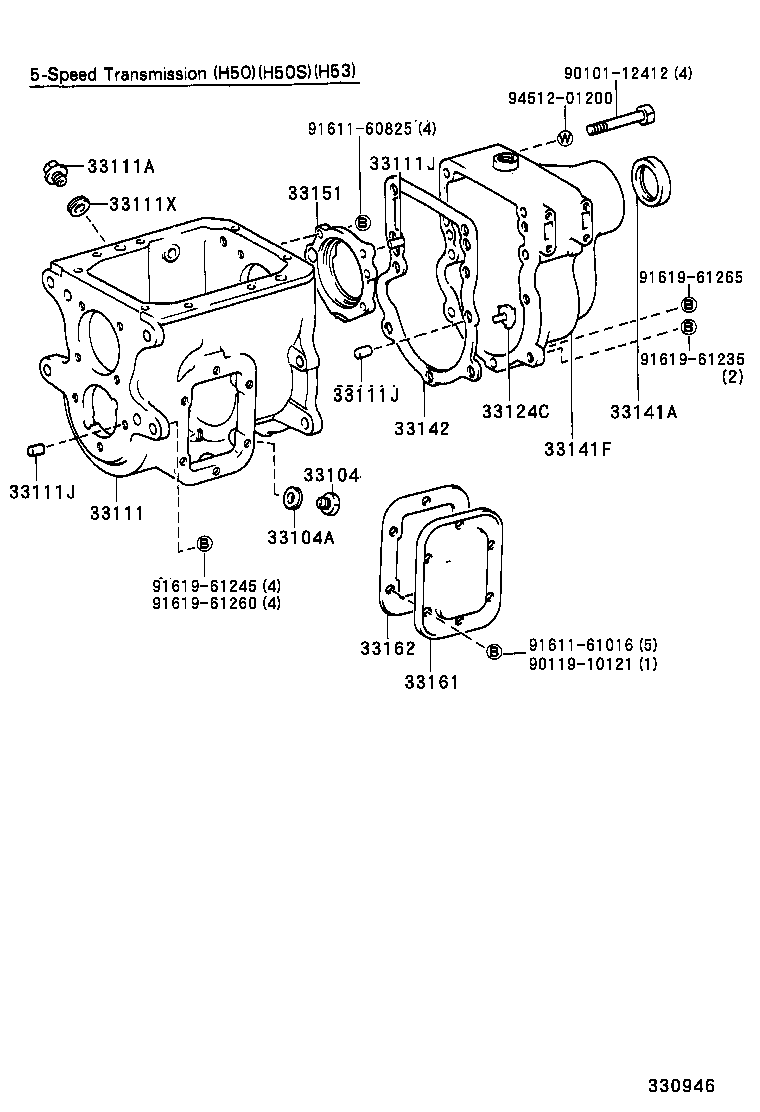

(8808- )WU75,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
WU75,90,95 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
WU75,85,9#,YU6#,70 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-36100 |
WU75,90,95 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
WU75,85,9#,YU6#,70 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
WU75,90,95 長さ=14,外径=10 |
1 | ||
| 90250-12146 |
WU75,85,9#,YU6#,70 長さ=17,外径=12 |
2 | ||
| 90250-12216 |
WU75,85,9#,YU6#,70 長さ=14,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
WU75,90,95 長さ=14,外径=10 |
1 | ||
| 90250-12146 |
WU75,85,9#,YU6#,70 長さ=17,外径=12 |
2 | ||
| 90250-12216 |
WU75,85,9#,YU6#,70 長さ=14,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
WU75,90,95 長さ=14,外径=10 |
1 | ||
| 90250-12146 |
WU75,85,9#,YU6#,70 長さ=17,外径=12 |
2 | ||
| 90250-12216 |
WU75,85,9#,YU6#,70 長さ=14,外径=12 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
WU75,85,9#,YU6#,70 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36010 |
WU75,90,95 |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-45001 |
WU75,90,95 |
1 | ||
| 33141F - HOUSING, EXTENSION(MTM) | ||||
| 33141-36090 |
WU75,90,95 |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-36030 |
WU75,90,95 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36030 |
WU75,90,95 |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
WU75,85,9#,YU6#,70 |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
WU75,85,9#,YU6#,70 |
1 | ||
| Common parts | ||||
| 90101-12412 | ||||
| 90119-10121 | ||||
| 91611-60825 | ||||
| 91611-61016 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61260 | ||||
| 91619-61265 | ||||
| 94512-01200 | ||||

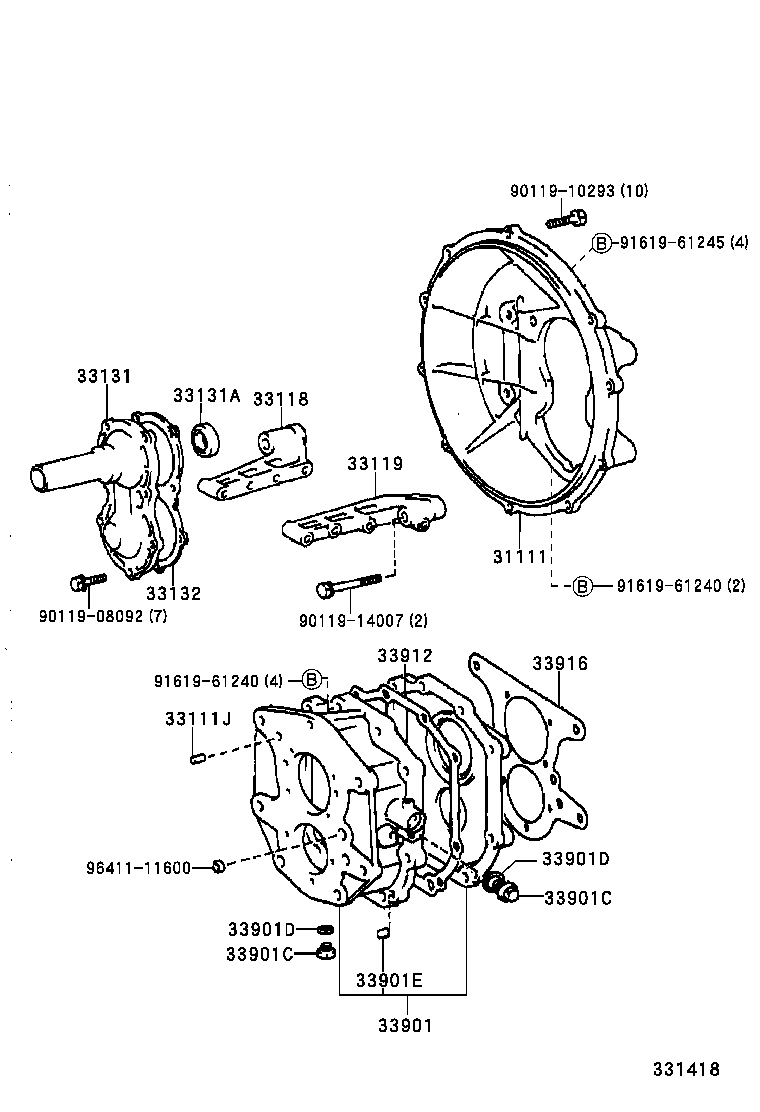

(8808- )WU75,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36120 |
WU75,90,95 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10214 |
WU75,90,95 長さ=14,外径=10 |
1 | ||
| 90250-12146 |
WU75,85,9#,YU6#,70 長さ=17,外径=12 |
2 | ||
| 90250-12216 |
WU75,85,9#,YU6#,70 長さ=14,外径=12 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-89102 |
WU75,85,9# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-89101 |
WU75,85,9# |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36040 |
WU75,90,95 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-28004 |
WU75,90,95 |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36030 |
WU75,90,95 |
1 | ||
| 33901 - CASE SUB-ASSY, ADAPTER | ||||
| 33901-36020 |
WU75,90,95 |
1 | ||
| 33901C - PLUG(FOR ADAPTER CASE) | ||||
| 90341-18006 |
WU75,90,95 FILLER PLUG |
1 | ||
| 90341-18057 |
WU75,90,95 DRAIN PLUG |
1 | ||
| 33901C - PLUG(FOR ADAPTER CASE) | ||||
| 90341-18006 |
WU75,90,95 FILLER PLUG |
1 | ||
| 90341-18057 |
WU75,90,95 DRAIN PLUG |
1 | ||
| 33901D - GASKET(FOR ADAPTER CASE PLUG) | ||||
| 90430-18008 |
WU75,90,95 |
2 | ||
| 33901D - GASKET(FOR ADAPTER CASE PLUG) | ||||
| 90430-18008 |
WU75,90,95 |
2 | ||
| 33901E - PIN, STRAIGHT(FOR ADAPTER CASE) | ||||
| 90250-12216 |
WU75,90,95 |
2 | ||
| 33912 - GASKET, FRONT CASE | ||||
| 33912-36010 |
WU75,90,95 |
1 | ||
| 33916 - GASKET, REAR CASE | ||||
| 33916-36020 |
WU75,90,95 |
1 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 90119-10293 | ||||
| 90119-14007 | ||||
| 91619-61240 | ||||
| 91619-61245 | ||||
| 96411-11600 | ||||
