WU90-MDDT3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )1W

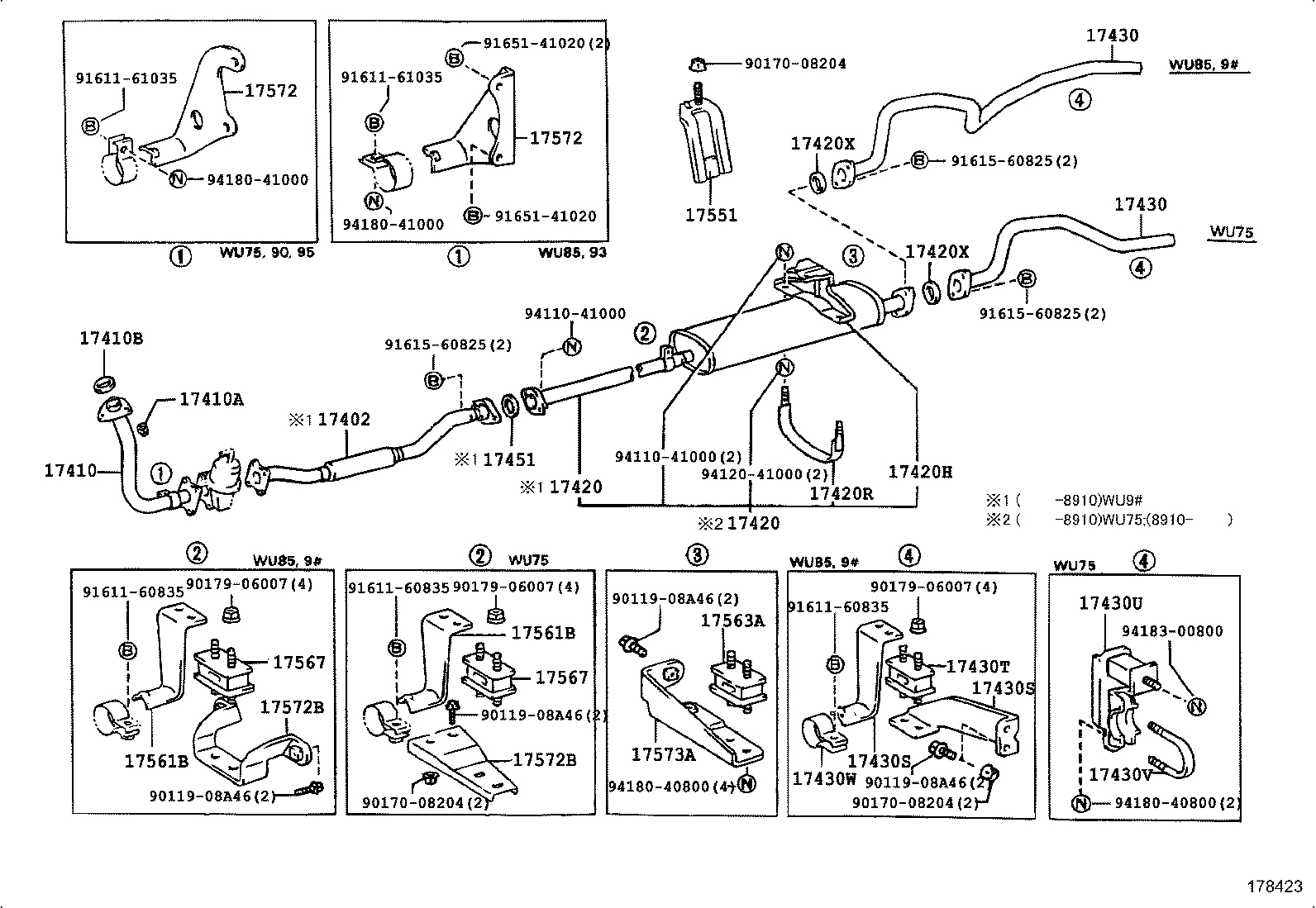

Click highlighted areas on diagram

diagram 17402 17410 17410A 17410B 17420 17420 17420H 17420R 17420X 17420X 17430 17430 17430S 17430S 17430T 17430U 17430V 17430W 17451 17551 17561B 17561B 17563A 17567 17567 17572 17572 17572B 17572B 17573A 9011908A46 9011908A46 9011908A46 9011908A46 9017008204 9017008204 9017008204 9017906007 9017906007 9017906007 9161160835 9161160835 9161160835 9161161035 9161161035 9161560825 9161560825 9161560825 9165141020 9165141020 9411041000 9411041000 9412041000 9418040800 9418040800 9418041000 9418041000 9418300800
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-56040

1W..WU9#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78030

1W..WU85,9#

 1
17401-78021

1W..WU75,85,9#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1W,3Y#..WU75,85,9#,YU6#,70

 3
17410B - GASKET, EXHAUST PIPE
90917-06042

1W..WU75,85,9#

 1
90917-06005

1W..WU75,85,9#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-78011

1W..WU85,90

 1
17420-78010

1W..WU85,90

ｱﾘ(ｵｲﾙﾚﾍﾞﾙ ｾﾝｻ)

 1
17403-56280

1W..WU90

ﾅｼ(ｵｲﾙﾚﾍﾞﾙ ｾﾝｻ)

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-78011

1W..WU85,90

 1
17420-78010

1W..WU85,90

ｱﾘ(ｵｲﾙﾚﾍﾞﾙ ｾﾝｻ)

 1
17403-56280

1W..WU90

ﾅｼ(ｵｲﾙﾚﾍﾞﾙ ｾﾝｻ)

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56040

1W..WU75,85,9#

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56020

1W..WU75,85,9#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

1W,3YP..WU75,85,9#,YU60

 1
90917-06008

1W,3Y#..WU75,85,9#,YU6#,70

 1
90917-06047

1W,3Y#..WU75,85,9#,YU6#,70

 1
90917-06045

1W,3Y#..WU75,85,9#,YU6#,70

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06008

1W,3YP..WU75,85,9#,YU60

 1
90917-06008

1W,3Y#..WU75,85,9#,YU6#,70

 1
90917-06047

1W,3Y#..WU75,85,9#,YU6#,70

 1
90917-06045

1W,3Y#..WU75,85,9#,YU6#,70

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58210

1W..WU85,9#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58210

1W..WU85,9#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010

1W..WU85,9#

PIPE SIDE

 1
17574-58040

1W..WU85,9#;3Y#..YU60..T2,TW2

BODY SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-58040

1W..WU85,9#;3Y#..YU60..T2,TW2

BODY SIDE

 1
17561-47010

1W..WU85,9#

PIPE SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

1W,3Y#..WU85,9#,YU6#,70

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007

1W..WU85,9#

 1
17451 - GASKET, EXHAUST PIPE
90917-06008

1W,3Y#..WU9#,YU6#,70

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-58020

1W..WU90

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-47010

1W..WU75,85,9#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-47010

1W..WU75,85,9#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17567-58010

1W..WU75,85,9#

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-61030

1W..WU75,85,9#

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-61030

1W..WU75,85,9#

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58060

1W..WU75,90,95

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58060

1W..WU75,90,95

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-58030

1W..WU85,9#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-58030

1W..WU85,9#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58060

1W..WU75,85,9#

 1
17573-58061

1W..WU75,85,9#

 1
Common parts
90119-08A46
90170-08204
90179-06007
91611-60835
91611-61035
91615-60825
91651-41020
94110-41000
94120-41000
94180-40800
94180-41000
94183-00800
