WU85-MDDT (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )WU85..T3..20T

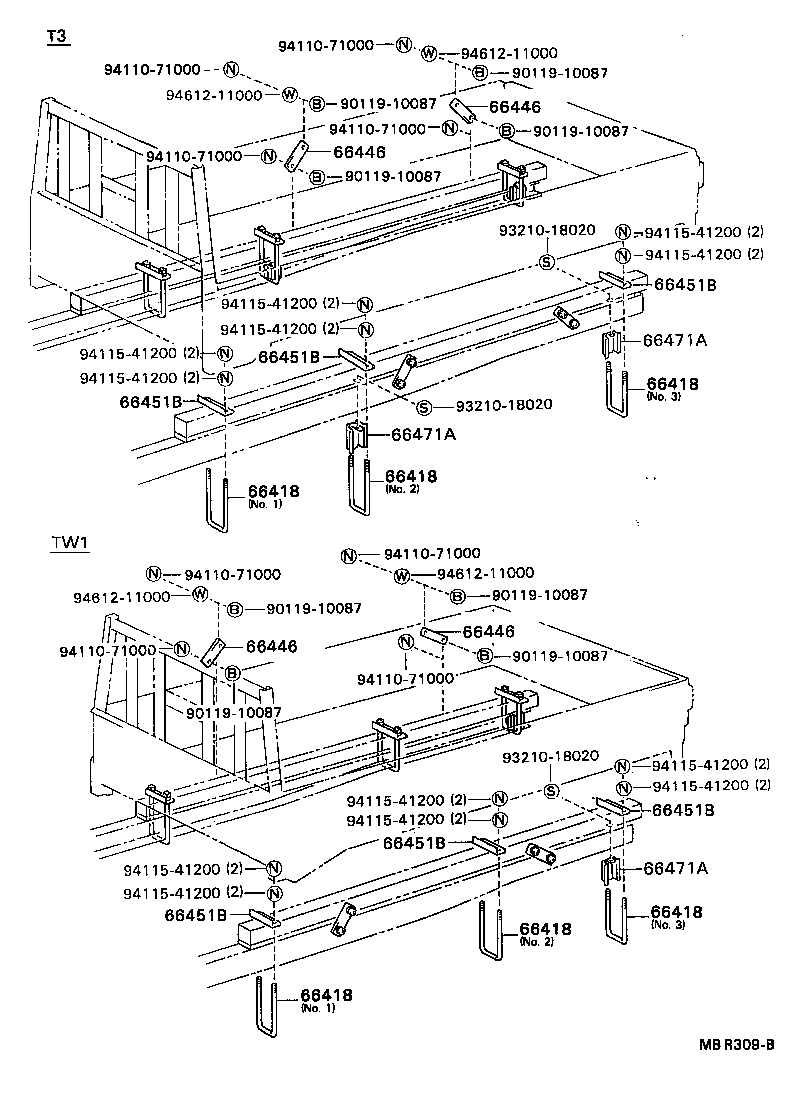

Click highlighted areas on diagram

diagram 66418 66418 66418 66418 66418 66418 66446 66446 66446 66446 66451B 66451B 66451B 66451B 66451B 66451B 66471A 66471A 66471A 9011910087 9011910087 9011910087 9011910087 9011910087 9011910087 9011910087 9011910087 9321018020 9321018020 9321018020 9411071000 9411071000 9411071000 9411071000 9411071000 9411071000 9411071000 9411071000 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9411541200 9461211000 9461211000 9461211000 9461211000
Part # Description Qty Price
66418 - BOLT, MOUNTING
66463-92707

WU85,YU60..T3..WT..CBU

NO.2

 2
90117-12027

WU93..T3..CBU;WU85,90,95..T3..(20T,35T)..CBU

NO.3

 2
66461-92820

WU85..T3..20T..CBU

NO.1,

 2
66418 - BOLT, MOUNTING
66463-92707

WU85,YU60..T3..WT..CBU

NO.2

 2
90117-12027

WU93..T3..CBU;WU85,90,95..T3..(20T,35T)..CBU

NO.3

 2
66461-92820

WU85..T3..20T..CBU

NO.1,

 2
66418 - BOLT, MOUNTING
66463-92707

WU85,YU60..T3..WT..CBU

NO.2

 2
90117-12027

WU93..T3..CBU;WU85,90,95..T3..(20T,35T)..CBU

NO.3

 2
66461-92820

WU85..T3..20T..CBU

NO.1,

 2
66418 - BOLT, MOUNTING
66463-92707

WU85,YU60..T3..WT..CBU

NO.2

 2
90117-12027

WU93..T3..CBU;WU85,90,95..T3..(20T,35T)..CBU

NO.3

 2
66461-92820

WU85..T3..20T..CBU

NO.1,

 2
66418 - BOLT, MOUNTING
66463-92707

WU85,YU60..T3..WT..CBU

NO.2

 2
90117-12027

WU93..T3..CBU;WU85,90,95..T3..(20T,35T)..CBU

NO.3

 2
66461-92820

WU85..T3..20T..CBU

NO.1,

 2
66418 - BOLT, MOUNTING
66463-92707

WU85,YU60..T3..WT..CBU

NO.2

 2
90117-12027

WU93..T3..CBU;WU85,90,95..T3..(20T,35T)..CBU

NO.3

 2
66461-92820

WU85..T3..20T..CBU

NO.1,

 2
66446 - BRACE, FRAME FLOOR
66446-92701

WU85,90..T3..CBU

 4
66446 - BRACE, FRAME FLOOR
66446-92701

WU85,90..T3..CBU

 4
66446 - BRACE, FRAME FLOOR
66446-92701

WU85,90..T3..CBU

 4
66446 - BRACE, FRAME FLOOR
66446-92701

WU85,90..T3..CBU

 4
66451B - PLATE, U BOLT
66466-92580

WU85,YU60..T3..CBU

 4
66451B - PLATE, U BOLT
66466-92580

WU85,YU60..T3..CBU

 4
66451B - PLATE, U BOLT
66466-92580

WU85,YU60..T3..CBU

 4
66451B - PLATE, U BOLT
66466-92580

WU85,YU60..T3..CBU

 4
66451B - PLATE, U BOLT
66466-92580

WU85,YU60..T3..CBU

 4
66451B - PLATE, U BOLT
66466-92580

WU85,YU60..T3..CBU

 4
66471A - REINFORCEMENT, FRAME U BOLT
66471-92801

WU85..T3..20T..CBU

右側

 1
66472-92803

WU85..T3..20T..CBU

左側

 1
66471A - REINFORCEMENT, FRAME U BOLT
66471-92801

WU85..T3..20T..CBU

右側

 1
66472-92803

WU85..T3..20T..CBU

左側

 1
66471A - REINFORCEMENT, FRAME U BOLT
66471-92801

WU85..T3..20T..CBU

右側

 1
66472-92803

WU85..T3..20T..CBU

左側

 1
Common parts
90119-10087
93210-18020
94110-71000
94115-41200
94612-11000
