WU85-MDDT (1989)
Toyota Dyna/Toyoace
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 48155-3B470 | ||||
(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 48216-3B060 | ||||
| 94110-71000 | ||||
(8910- )
| Part # | Description | Qty | Price |
|---|
(8910- )
| Part # | Description | Qty | Price |
|---|
(8910- ) ; (9005- )
| Part # | Description | Qty | Price |
|---|
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-71000 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48282-3B560 |
WU85,93..20T |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48282-3B560 |
WU85,93..20T |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48282-3B560 |
WU85,93..20T |
10 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-71000 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-40800 | ||||
| 94110-71000 | ||||
(9307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48282-3B560 |
WU85,93..20T |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||

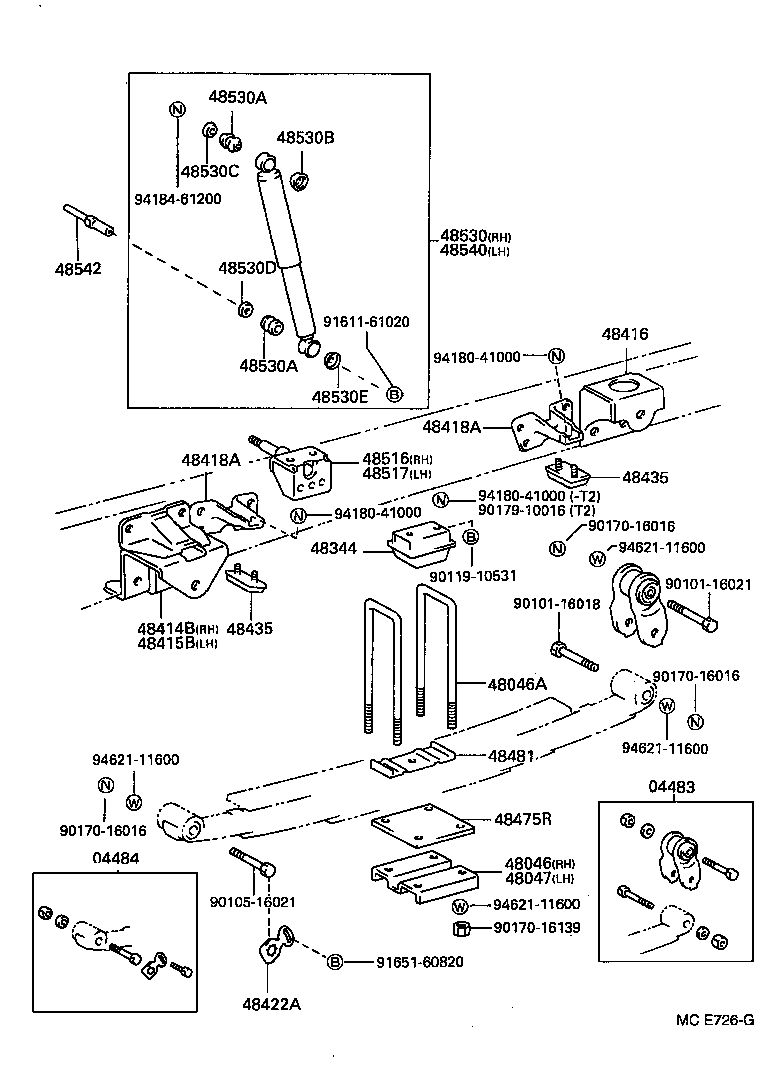

(8910- )WU85,93,YU61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36070 |
WU85,93 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36050 |
WU85,93 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-36110 |
WU85,93 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16103 |
WU85,93..20T 長さ=275 |
2 | ||
| 90117-16022 |
WU85,93..20T 長さ=280 |
2 | ||
| 90117-16012 |
WU85,93..20T 長さ=245 |
6 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-36110 |
WU85,93 |
1 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36220 |
WU90..T4;WU85,93..T3..20T |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36210 |
WU85,93 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36210 |
WU85,93 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-36190 |
WU85,93 |
2 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
WU85,93 |
4 | ||
| 48418A - BRACKET, HELPER SPRING, FRONT | ||||
| 48418-36090 |
WU85,93 |
4 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36030 |
WU85,93 |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
WU85,93 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
WU85,93 |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36090 |
WU85,93 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36050 |
WU85,93 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36050 |
WU85,YU60..WT..(175,20T) |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36050 |
WU85,YU60..WT..(175,20T) |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39735 |
WU85,93 |
1 | ||
| 48531-39736 |
WU85,93 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
WU75,85,9#,YU6#,70 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
WU75,85,9#,YU6#,70 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
WU85,93 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
WU75,85,9#,YU6#..WT |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
WU85,93,YU60,70 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
WU75,85,9#,YU6#,70 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39735 |
WU85,93 |
1 | ||
| 48531-39736 |
WU85,93 |
1 | ||
| 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR | ||||
| 48542-26020 |
WU85,93 |
2 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90101-16021 | ||||
| 90105-16021 | ||||
| 90119-10531 | ||||
| 90170-16016 | ||||
| 90170-16139 | ||||
| 90179-10016 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| 94180-41000 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
WU85,93 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B560 |
WU85,93..T3..20T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3B560 |
WU85,93..T3..20T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-3B560 |
WU85,93..T3..20T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B560 |
WU85,93..T3..20T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B560 |
WU85,93..T3..20T ﾒｲﾝ4枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3B560 |
WU85,93..20T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3B560 |
WU85,93..T3..20T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48207-3B560 |
WU85,93..T3..20T |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
