WU85-MDDHTJ3 (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)BU66,67,88..4FC ; (9008- )BU66,88..4FC ; (9008- )BU87..4FC..CBU ;

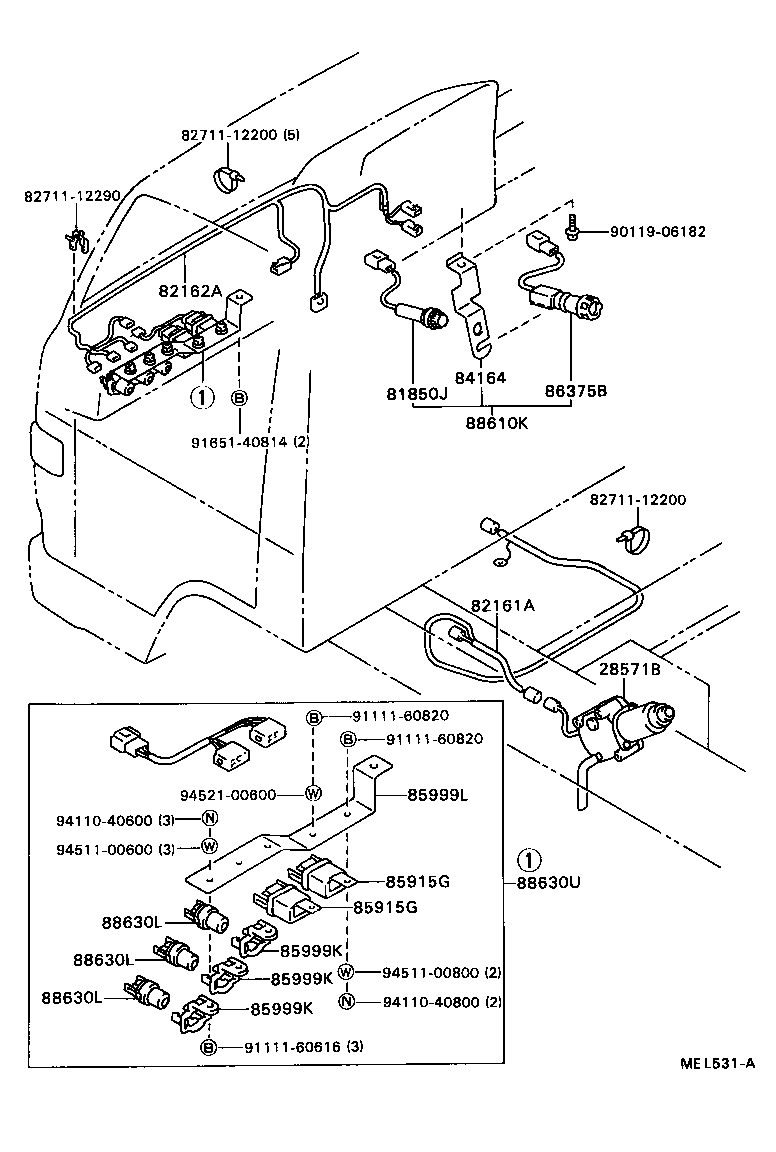

Click highlighted areas on diagram

diagram 28571B 81850J 82161A 82162A 8271112200 8271112200 8271112290 84164 85915G 85915G 85999K 85999K 85999K 85999L 86375B 88610K 88630L 88630L 88630L 88630U 9011906182 9111160616 9111160820 9111160820 9165140814 9411040600 9411040800 9451100600 9451100800 9452100600
Part # Description Qty Price
Common parts
82711-12200
82711-12290
90119-06182
91111-60616
91111-60820
91651-40814
94110-40600
94110-40800
94511-00600
94511-00800
94521-00600
