WU85-MDDHTJ3 (1989)
Toyota Dyna/Toyoace
Production
Oct 1989
-
May 1995
Engine
1W
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

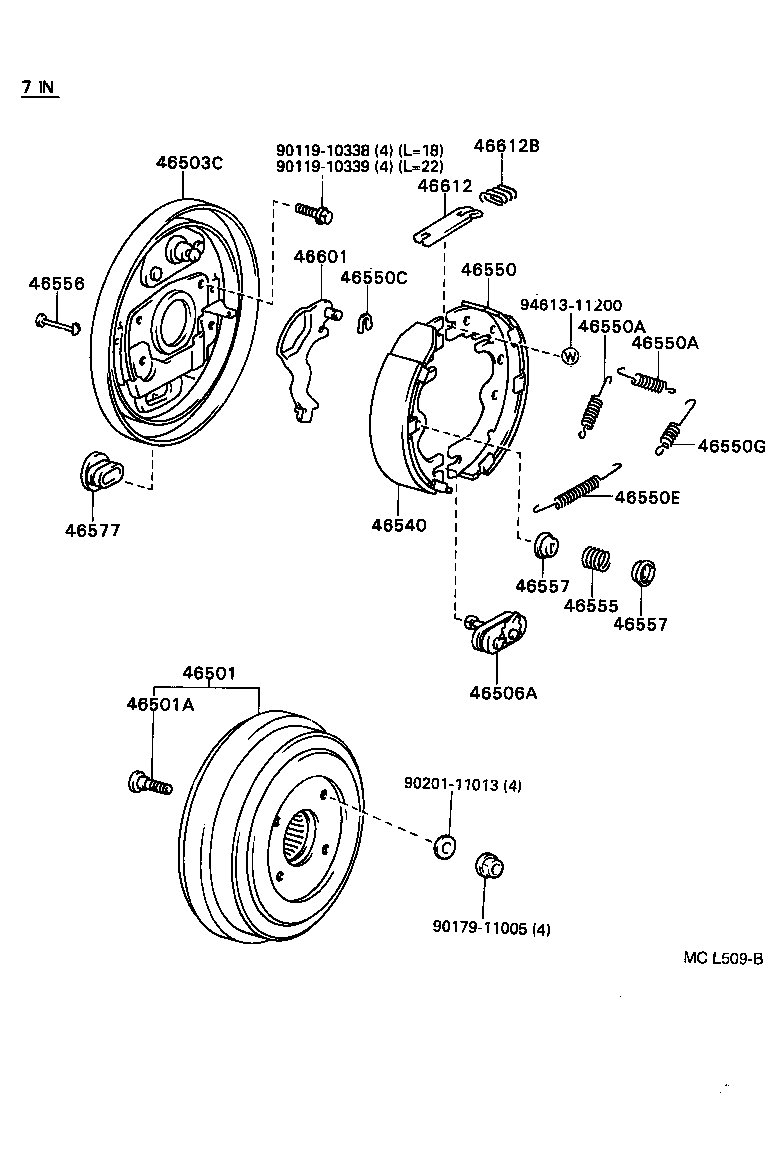

ILLUST NO. 3 OF 3(8910- )WU85..30T
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-36180 |
WU85,93..30T |
1 | ||
| 46501-36130 |
WU85..30T |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
WU75,85,9#,YU6#,70 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36011 |
WU85,93..30T |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36010 |
WU85..30T |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-25010 |
WU85,93..30T |
1 | ||
| 46530-36010 |
WU85..30T |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-36010 |
WU85..30T |
1 | ||
| 46530-25010 |
WU85,93..30T |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
WU85..30T |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
WU85..30T |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06013 |
WU75,85,9#..30T,35T |
1 | ||
| 90213-06013 |
WU85,93..30T |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
WU85,93..30T |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14013 |
WU85,93..30T |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
WU85,93..30T |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
WU85,93..30T |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
WU75,85,9#..30T,35T |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
WU75,85,9#..30T,35T |
4 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
WU93..20T;WU85,YU6#,70 |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36010 |
WU85,93..30T |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
WU85,93..30T |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
WU85,93..30T |
1 | ||
| Common parts | ||||
| 90119-10338 | ||||
| 90119-10339 | ||||
| 90179-11005 | ||||
| 90201-11013 | ||||
| 94613-11200 | ||||
