WU85-MDDHT3 (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )WU75,85,9#

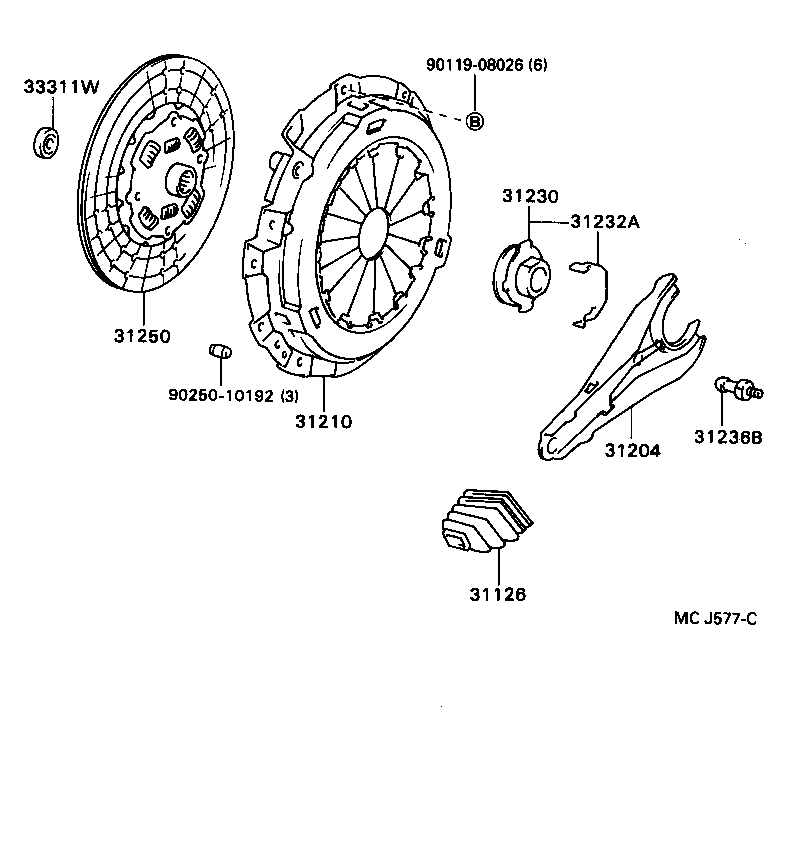

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011908026 9025010192
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-36040

WU85,93

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-36120

WU85,93

 1
31210 - COVER ASSY, CLUTCH
31210-36170

WU75,85,9#

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36170

WU85,93

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36030

WU85,93

 1
31236B - SUPPORT, RELEASE FORK
31236-35030

WU85,93,YU6#,70

 1
31250 - DISC ASSY, CLUTCH
31250-36402

WU85,93

 1
31250-36401

WU85,93

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-15004

WU75,85,9#

 1
Common parts
90119-08026
90250-10192
