WU85-MDDHT (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )

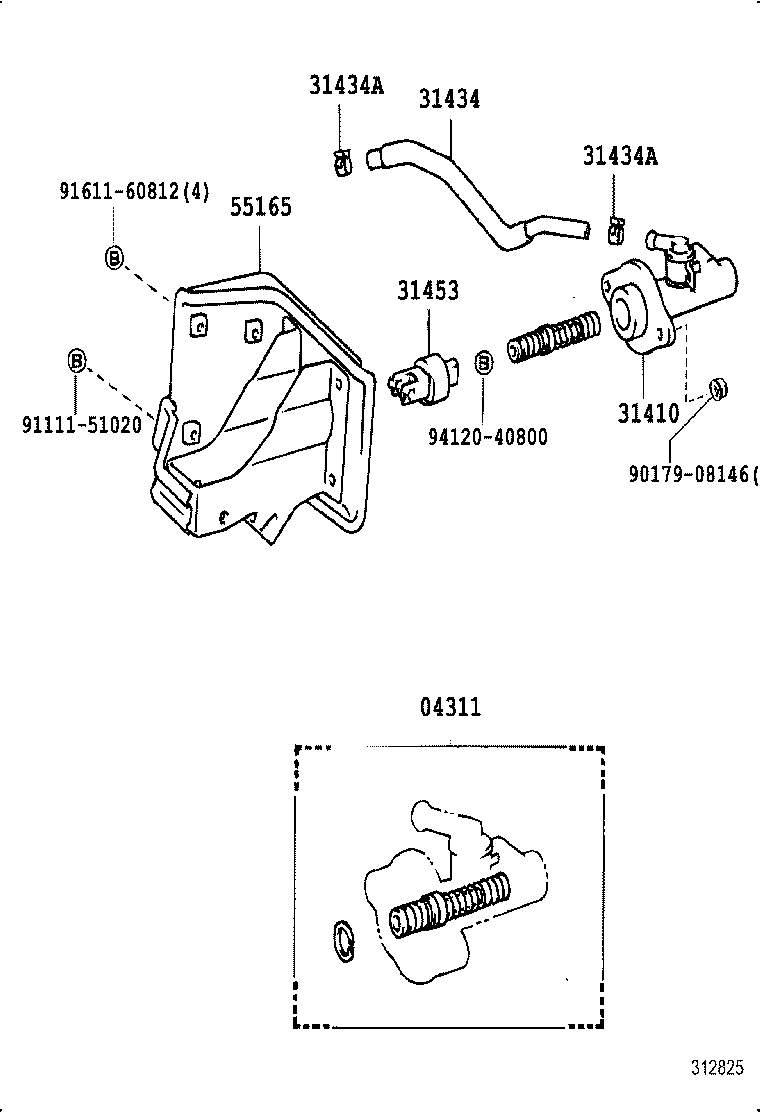

Click highlighted areas on diagram

diagram 04311 31410 31434 31434A 31434A 31453 55165 9111151020 9161160812 9412040800
Part # Description Qty Price
Common parts
91111-51020
91611-60812
94120-40800

(8910- )WU75,85,9#

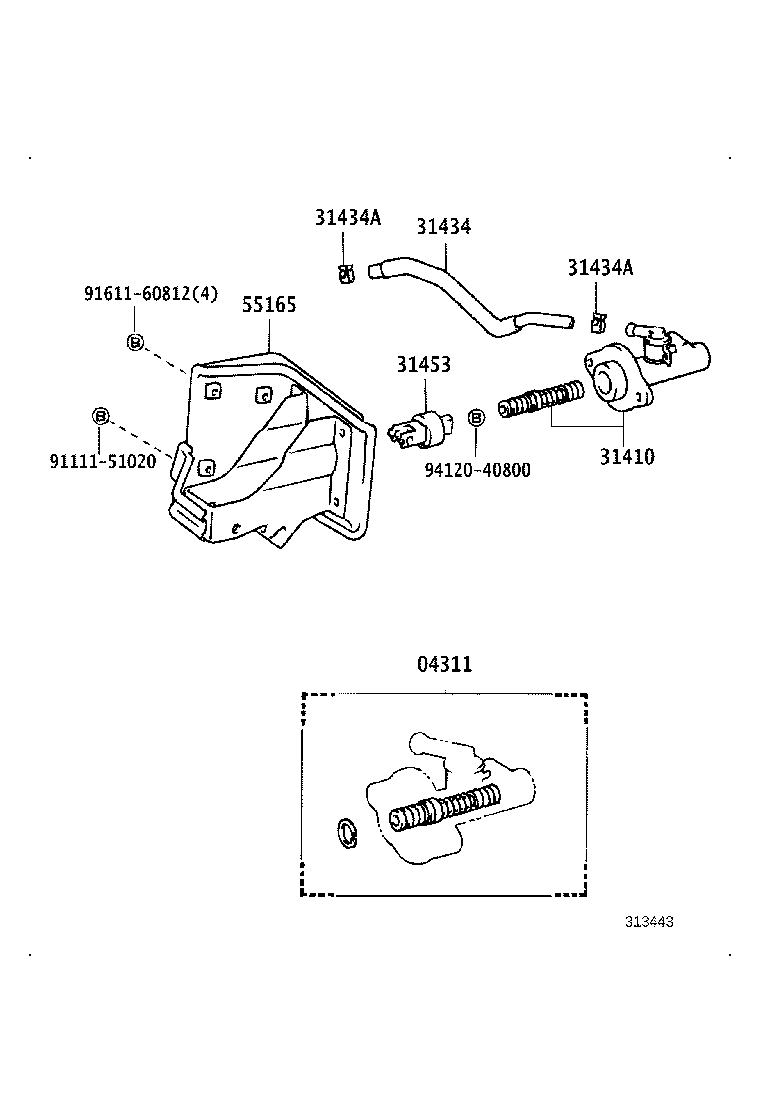

Click highlighted areas on diagram

diagram 04311 31410 31434 31434A 31434A 31453 55165 9017908146 9111151020 9161160812 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-36110

WU75,85,9#

 1
04311-36111

WU75,85,9#

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-36050

WU75,85,9#

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-36240

WU75,85,9#

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

WU75,85,9#,YU6#,70

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

WU75,85,9#,YU6#,70

 2
55165 - SUPPORT, CLUTCH MASTER CYLINDER
55105-95411

WU75,85,9#

 1
Common parts
90179-08146
91111-51020
91611-60812
94120-40800
