WU75D-MDTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8708- )DM1,DM2,DM4

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38904P 38920A 38920B 38920B 38923A 38930A 38962 38963 38964 38964 38966 38982 38982 9046108047 9046108047 9046108047 9046108047 9046108047 9046108050 9046108058 9161140610 9161140614 9161160616 9161160812 9161160812 9161160812 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161541030 9165161030 9411040600 9411040600 9411040800 9411040800 9412040800 9418040800 9418040800 9451100800 9451200600 9451200600 9461110800 9461210800
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

WU75..IV3;WU9#,YU60

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

WU75..IV3;WU9#,YU60

 2
38904C - GROMMET, PUSH PULL CABLE
90480-22013

WU75..IV3;WU9#,YU60

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93108

WU75..IV3;WU9#,YU60

 1
38930A - CABLE ASSY, PUSH PULL
38930-93119

WU9#;WU75..IV3

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-96304

WU75..IV3;WU9#,YU60

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

WU75..IV3;WU9#,YU60

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

WU75..IV3;WU9#,YU60

 2
Common parts
90461-08047
90461-08050
90461-08058
91611-40610
91611-40614
91611-60616
91611-60812
91611-60816
91611-60820
91615-41030
91651-61030
94110-40600
94110-40800
94120-40800
94180-40800
94511-00800
94512-00600
94611-10800
94612-10800

ILLUST NO. 1 OF 3(8808-9008)BU67..4FC ; (8808- )BU66,88..4FC ;(8808- )BU87..4FC..CBU ; (8808-

Click highlighted areas on diagram

diagram 38906B 38907A 38907E 38908C 38920A 38920A 38927 38970 8271195410 8413 9010906043 9024910110 9046107033 9048040004 9052015002 9111160670 9161160610 9161160855 9161161025 9161161055 9411040600 9411041000 9412041000 9451100600 9451101000 9461111600 9616000900 9645101000
Part # Description Qty Price
Common parts
82711-95410
90109-06043
90249-10110
90461-07033
90480-40004
90520-15002
91111-60670
91611-60610
91611-60855
91611-61025
91611-61055
94110-40600
94110-41000
94120-41000
94511-00600
94511-01000
94611-11600
96160-00900
96451-01000
Linked diagrams
8413

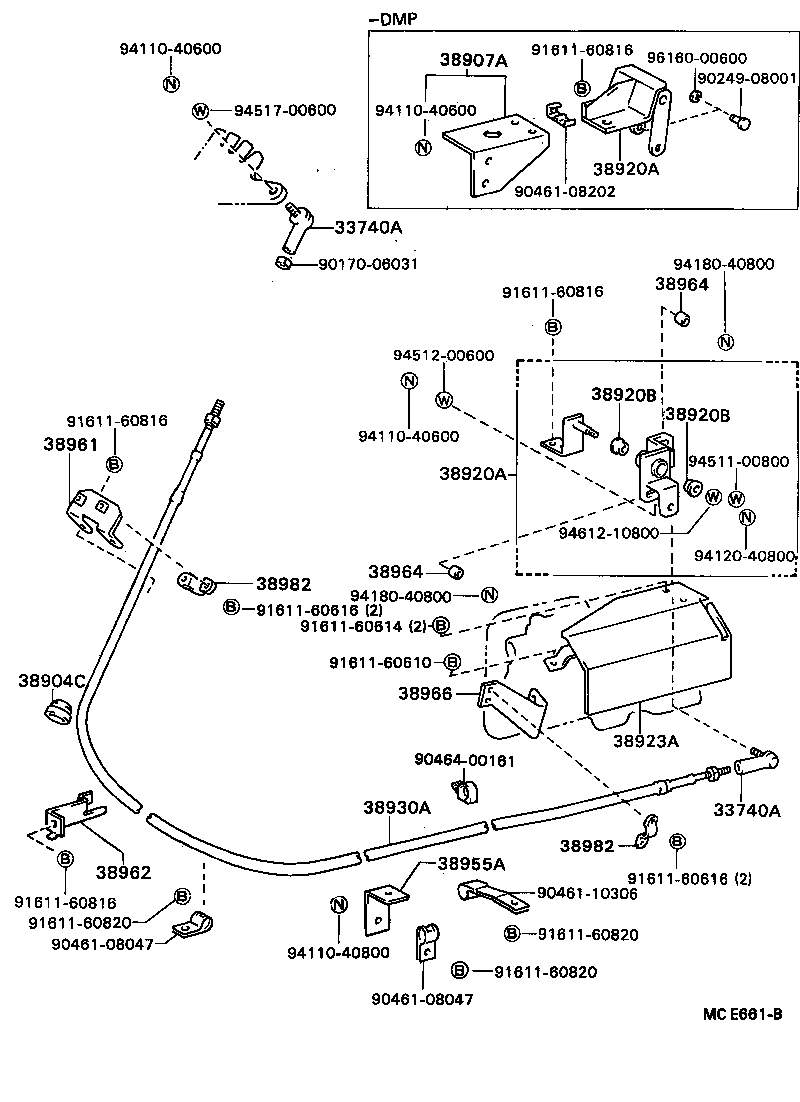

ILLUST NO. 2 OF 2(8708- )WU75,9#

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38907A 38920A 38920A 38920B 38920B 38923A 38930A 38955A 38961 38962 38964 38964 38966 38982 38982 9017006031 9024908001 9046108047 9046108047 9046108202 9046110306 9046400161 9161160610 9161160614 9161160616 9161160616 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9411040600 9411040600 9411040600 9411040800 9412040800 9418040800 9418040800 9451100800 9451200600 9451700600 9461210800 9616000600
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

WU75..IV3;WU9#,YU60

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

WU75..IV3;WU9#,YU60

 2
38904C - GROMMET, PUSH PULL CABLE
90480-22013

WU75..IV3;WU9#,YU60

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93108

WU75..IV3;WU9#,YU60

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93108

WU75..IV3;WU9#,YU60

 1
38930A - CABLE ASSY, PUSH PULL
38930-93119

WU9#;WU75..IV3

 1
38955A - BRACKET, CONTROL CABLE, NO.5
38955-93101

WU9#;WU75..IV3

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-96304

WU75..IV3;WU9#,YU60

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

WU75..IV3;WU9#,YU60

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

WU75..IV3;WU9#,YU60

 2
Common parts
90170-06031
90249-08001
90461-08047
90461-08202
90461-10306
90464-00161
91611-60610
91611-60614
91611-60616
91611-60816
91611-60820
94110-40600
94110-40800
94120-40800
94180-40800
94511-00800
94512-00600
94517-00600
94612-10800
96160-00600
