WU75D-MDTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )1W

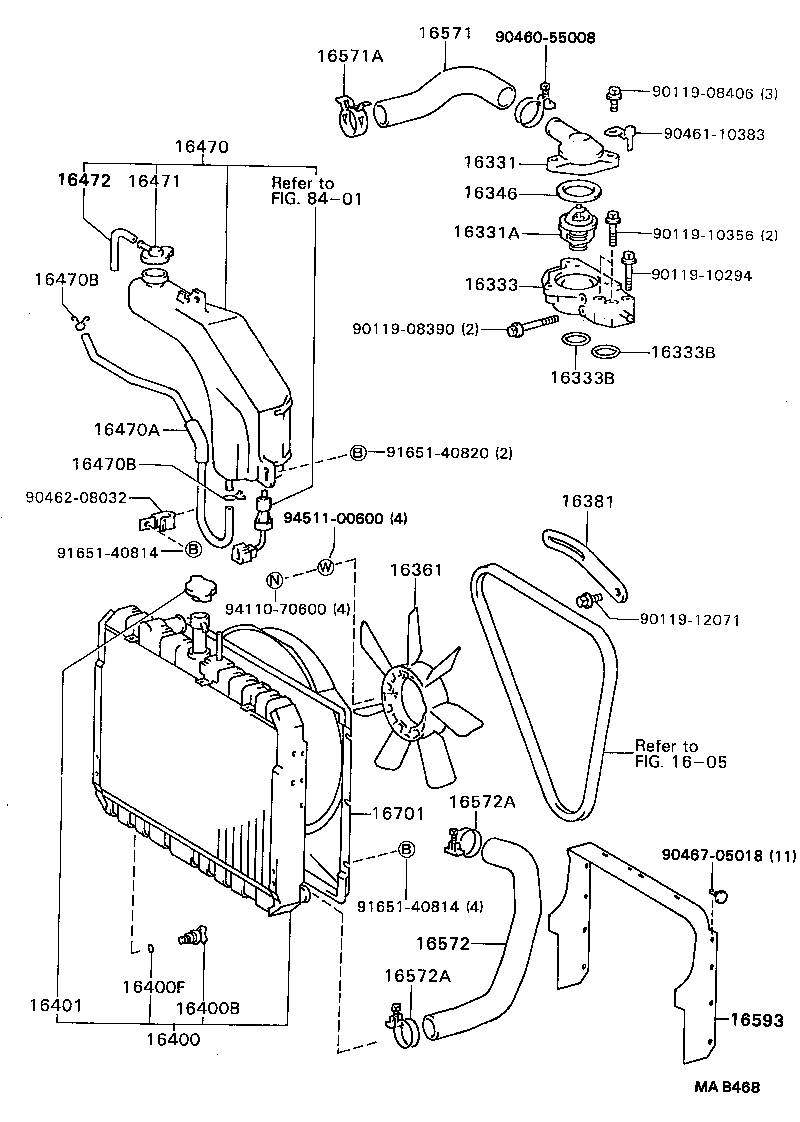

Click highlighted areas on diagram

diagram 1605 16331 16331A 16333 16333B 16333B 16346 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16471 16472 16571 16571A 16572 16572A 16572A 16593 16701 8401 9011908390 9011908406 9011910294 9011910356 9011912071 9046055008 9046110383 9046208032 9046705018 9165140814 9165140814 9165140820 9411070600 9451100600
Part # Description Qty Price
16331 - OUTLET, WATER
16331-78010

1W..WU75,9#

 1
16331A - THERMOSTAT
90916-03068

1W..WU75,9#

*WAX 88−100

 1
16333 - HOUSING, WATER OUTLET
16303-78010

1W..WU75,9#

 1
16333B - RING, O(FOR WATER OUTLET HOUSING)
90301-31001

1W..WU75,9#

 2
16333B - RING, O(FOR WATER OUTLET HOUSING)
90301-31001

1W..WU75,9#

 2
16346 - GASKET, THERMOSTAT
16346-78010

1W..WU75,9#

 1
16361 - FAN
16361-78010

1W..WU75,9#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-78020

1W..WU75,9#

 1
16400 - RADIATOR ASSY
16400-58142

1W..WU75,9#

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24051

1W..WU75,9#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24051

1W..WU75,9#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

1W..WU75,9#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58020

1W..WU75,9#

 1
16470-58010

1W..WU75,9#

ｱﾘ(OK ﾓﾆﾀ)

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12143

1W..WU75,9#

長さ=620

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1W..WU75,9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1W..WU75,9#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-56070

1W..WU75,9#

 1
16472 - HOSE, BREATHER
16472-58010

1W..WU75,9#

 1
16571 - HOSE, RADIATOR, INLET
16571-78020

1W..WU75,9#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

1W..WU75,9#

 1
16572 - HOSE, RADIATOR, OUTLET
16572-78011

1W..WU75,9#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

1W..WU75,9#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10510

1W..WU75,9#

 2
16593 - GUIDE, RADIATOR AIR, NO.1
16593-58050

1W..WU75,9#

 1
16701 - SHROUD SUB-ASSY, FAN
16701-58040

1W..WU75,9#

 1
Common parts
90119-08390
90119-08406
90119-10294
90119-10356
90119-12071
90460-55008
90461-10383
90462-08032
90467-05018
91651-40814
91651-40820
94110-70600
94511-00600
Linked diagrams
1605
8401
