WU75D-MDT3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

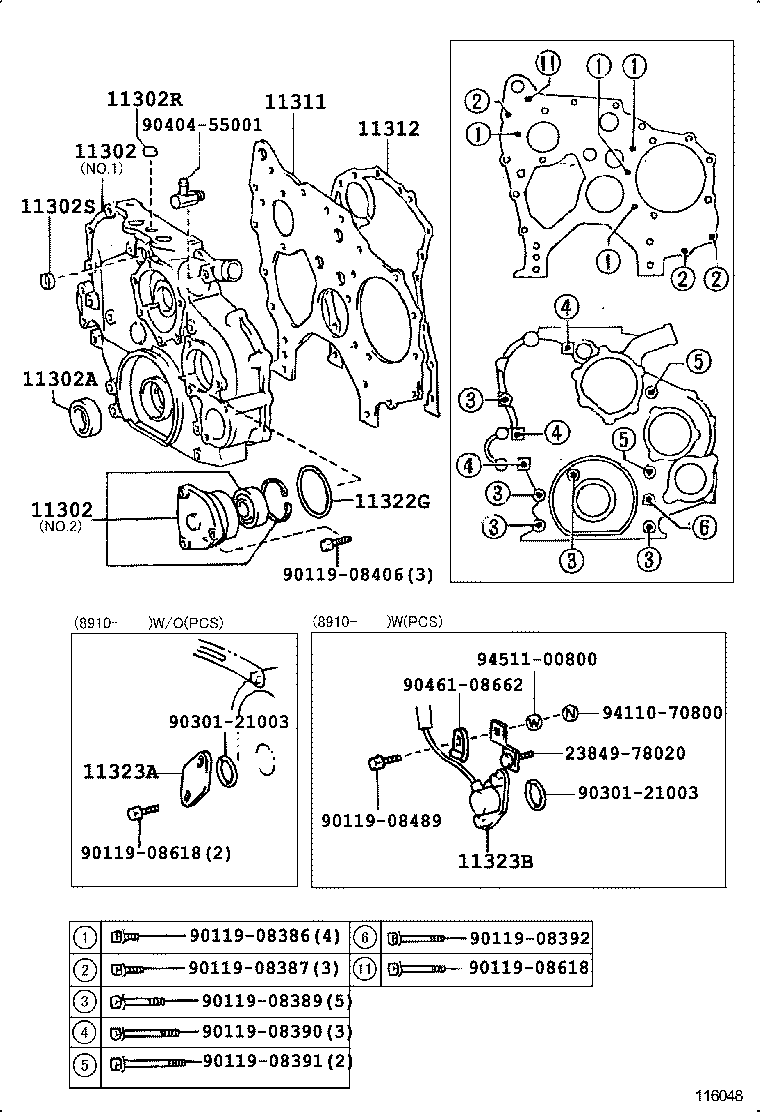

ILLUST NO. 1 OF 2(8808- )1W

Click highlighted areas on diagram

diagram 11302 11302 11302A 11302R 11302S 11311 11312 11322G 11323A 11323B 2384978020 9011908386 9011908387 9011908389 9011908390 9011908391 9011908392 9011908406 9011908489 9011908618 9011908618 9030121003 9030121003 9040455001 9046108662 9411070800 9451100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-78010

1W..WU75,9#

NO.2

 1
11321-78020

1W..WU75,9#

NO.1

 1
11321-78040

1W..WU75,85,9#

NO.1

 1
11302-78020

1W..WU75,85,9#

NO.2

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-78010

1W..WU75,9#

NO.2

 1
11321-78020

1W..WU75,9#

NO.1

 1
11321-78040

1W..WU75,85,9#

NO.1

 1
11302-78020

1W..WU75,85,9#

NO.2

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-58005

1W..WU75,85,9#

 1
11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
90331-22002

1W..WU75,85,9#

 1
11302S - PLUG, TIGHT, NO.2(FOR TIMING GEAR COVER)
90331-32002

1W..WU75,85,9#

 1
11311 - PLATE, FRONT END
11311-78010

1W..WU75,85,9#

 1
11312 - GASKET, FRONT END PLATE
11312-78010

1W..WU75,85,9#

 1
11312-78011

1W..WU75,85,9#

 1
11322G - RING, O(FOR TIMING GEAR COVER)
90301-81003

1W..WU75,85,9#

 1
11323B - DETECTOR ASSY, REVOLUTION
83180-89102

1W..WU75,90,95

 1
Common parts
23849-78020
90119-08386
90119-08387
90119-08389
90119-08390
90119-08391
90119-08392
90119-08406
90119-08489
90119-08618
90301-21003
90404-55001
90461-08662
94110-70800
94511-00800

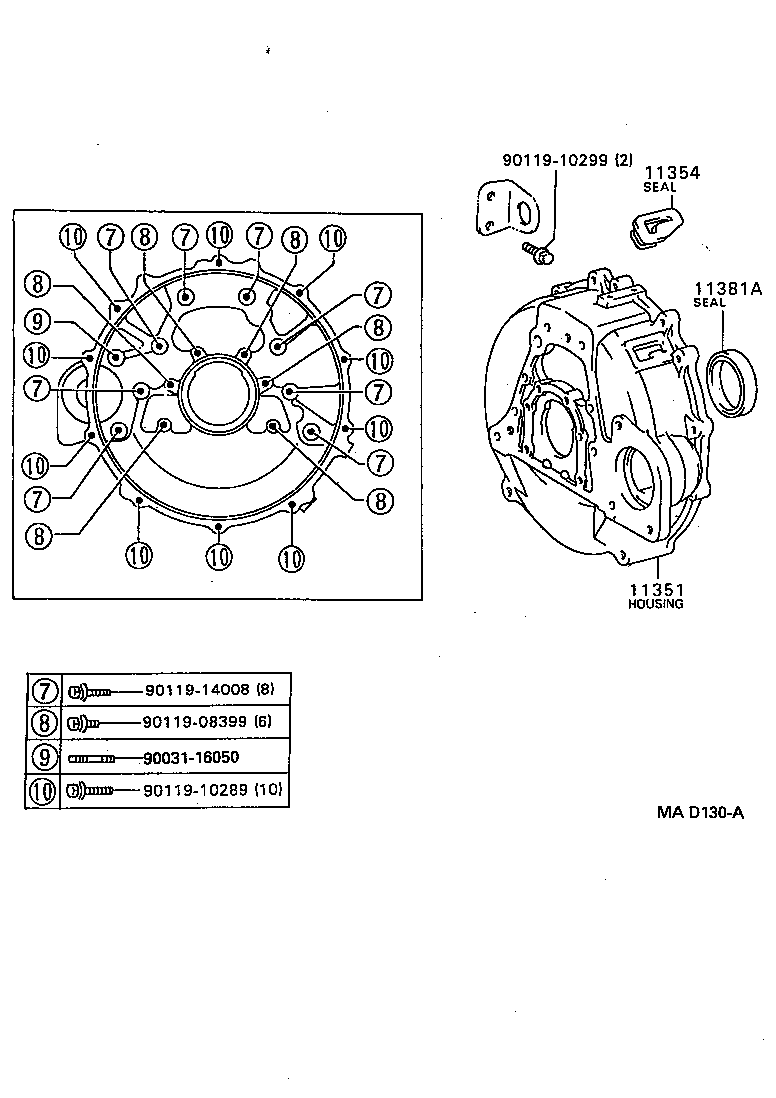

ILLUST NO. 2 OF 2(8808- )1W

Click highlighted areas on diagram

diagram 11351 11354 11381A 9003116050 9011908399 9011910289 9011910299 9011914008
Part # Description Qty Price
11351 - HOUSING, FLYWHEEL
11351-78021

1W..WU75,85,9#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-78010

1W..WU75,85,9#

 1
11381A - SEAL, ENGINE REAR OIL
90311-99002

1W..WU75,85,9#

 1
Common parts
90031-16050
90119-08399
90119-10289
90119-10299
90119-14008
