WU75D-MDT3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )1W

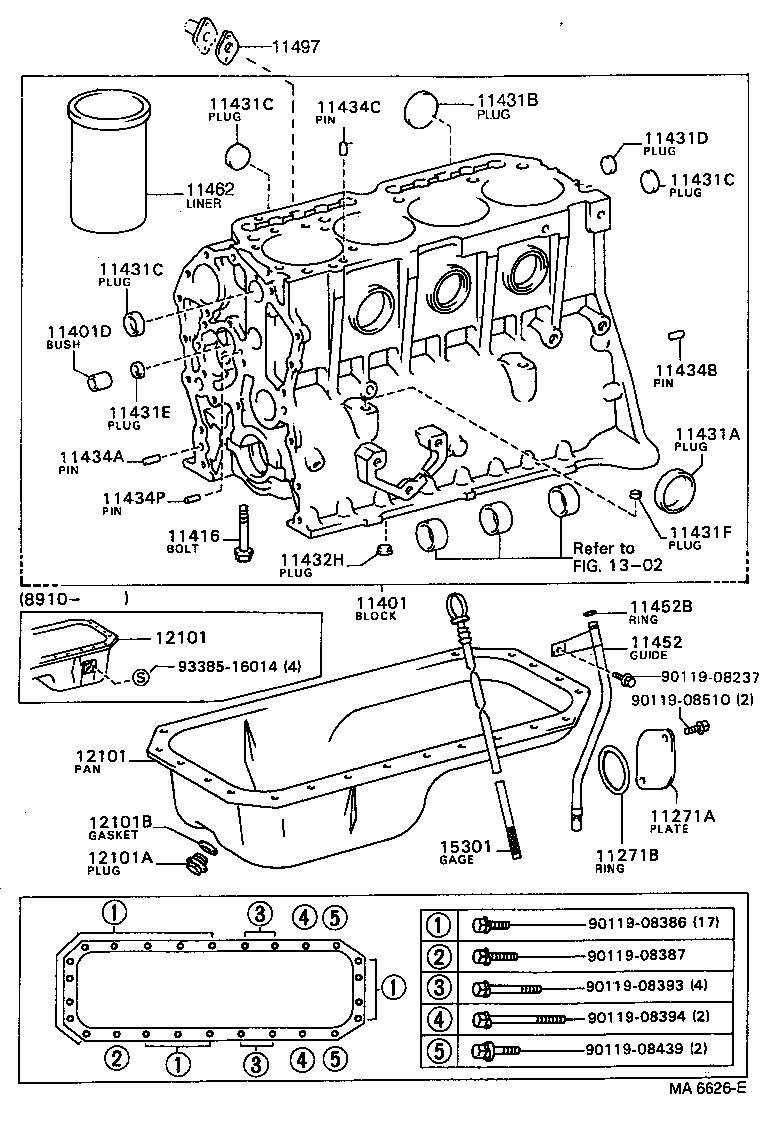

Click highlighted areas on diagram

diagram 11271A 11271B 11401 11401D 11416 11431A 11431B 11431C 11431C 11431C 11431D 11431E 11431F 11432H 11434A 11434B 11434C 11434P 11452 11452B 11462 11497 12101 12101 12101A 12101B 1302 15301 9011908237 9011908386 9011908387 9011908393 9011908394 9011908439 9011908510 9338516014
Part # Description Qty Price
11271A - COVER, CYLINDER BLOCK, REAR
11271-78010

1W..WU75,85,9#

 1
11271-78020

1W..WU75,85,9#

 1
11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE)
90301-69001

1W..WU75,85,9#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-78010

1W..WU75,85,9#

 1
11401D - BUSH(FOR OIL PUMP COVER)
90999-71055

1W..WU75,85,9#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-14024

1W..WU75,85,9#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-50002

1W..WU75,85,9#

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-40003

1W..WU75,85,9#

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90331-36001

1W..WU75,85,9#

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90331-36001

1W..WU75,85,9#

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90331-36001

1W..WU75,85,9#

 5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-24001

1W..WU75,85,9#

 1
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
90331-17002

1W..WU75,85,9#

 5
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
90331-14005

1W..WU75,85,9#

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90033-45014

1W..WU75,85,9#

 2
90344-21001

1W..WU75,85,9#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08015

1W..WU75,85,9#

長さ=24,外径=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-12003

1W..WU75,85,9#

外径=12

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08016

1W..WU75,85,9#

長さ=16,外径=8

 2
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90250-05022

1W..WU75,85,9#

長さ=10,外径=5

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-78010

1W..WU75,85,9#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-09006

1W..WU75,85,9#

 1
11462 - LINER, CYLINDER
11461-78040

1W..WU75,85,9#

MARK"Y"

 4
11461-78020

1W..WU75,85,9#

MARK"W"

 4
11461-78050

1W..WU75,85,9#

MARK"Z"

 4
11461-78030

1W..WU75,85,9#

MARK"X"

 4
11497 - GASKET, CYLINDER BLOCK OIL HOLE
11497-78010

1W..WU75,85,9#

 1
12101 - PAN SUB-ASSY, OIL
12111-78020

1W..WU90;1W..WU75,85,95..DM1,T3

 1
12111-78010

1W..WU75,9#

 1
12101 - PAN SUB-ASSY, OIL
12111-78020

1W..WU90;1W..WU75,85,95..DM1,T3

 1
12111-78010

1W..WU75,9#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1W..WU75,85,9#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90202-18001

1W..WU75,85,9#

 1
90202-18002

1W..WU75,85,9#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-78010

1W..WU75,85,9#

 1
Common parts
90119-08237
90119-08386
90119-08387
90119-08393
90119-08394
90119-08439
90119-08510
93385-16014
