WU75D-MDT (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

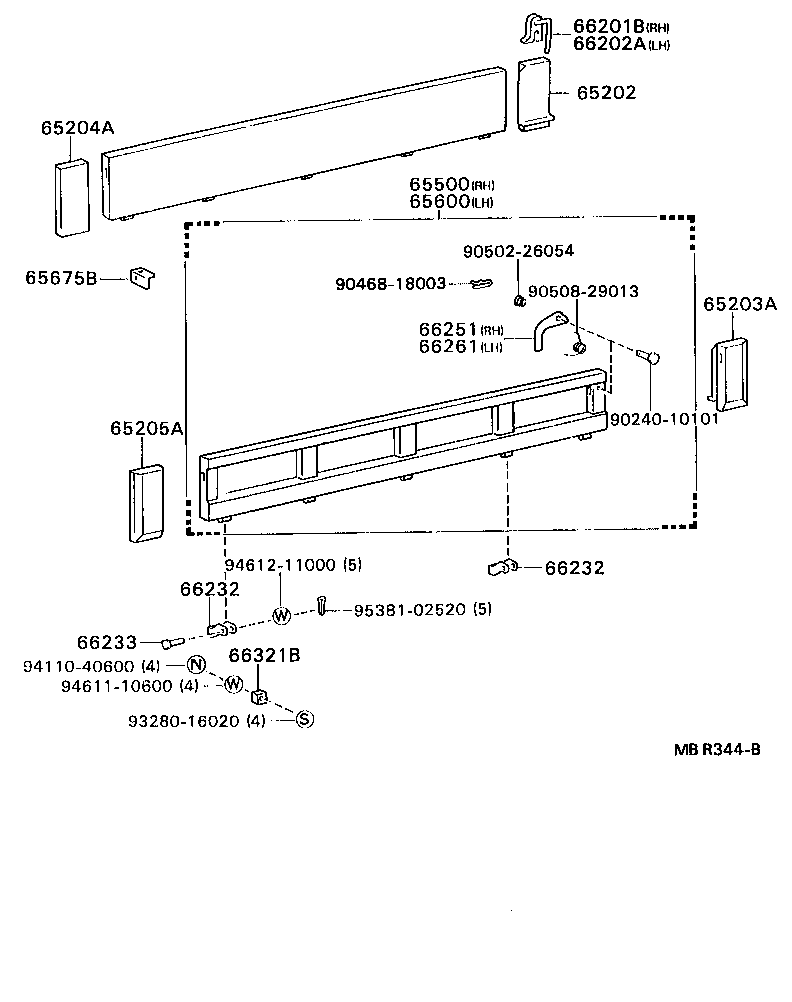

(8808-9109)WU75

Click highlighted areas on diagram

diagram 65202 65203A 65204A 65205A 65500 65600 65675B 66201B 66202A 66232 66232 66233 66251 66261 66321B 9024010101 9046818003 9050226054 9050829013 9328016020 9411040600 9461110600 9461211000 9538102520
Part # Description Qty Price
65202 - POST SUB-ASSY, SIDE GATE, REAR RH
65202-96309

WU75..CBU

 1
65202-93200

WU75..CBU

 1
65203A - POST SUB-ASSY, SIDE GATE, REAR LH
65203-93200

WU75..CBU

 1
65203-96309

WU75..CBU

 1
65204A - POST SUB-ASSY, SIDE GATE, RH
65233-93200

WU75..CBU

 1
65204-96304

WU75..CBU

 1
65205A - POST SUB-ASSY, SIDE GATE, LH
65234-93202

WU75..CBU

 1
65205-96304

WU75..CBU

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65501-96311

WU75..CBU

 1
65500-93200

WU75..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65501-96311

WU75..CBU

 1
65600-93200

WU75..CBU

 1
65675B - BRACKET, ROLLER ARM STOPPER
65675-96303

WU75..CBU

 2
66201B - LATCH SUB-ASSY, TAIL GATE, RH
66201-93202

WU75..CBU

 1
66201-96304

WU75..CBU

 1
66202A - LATCH SUB-ASSY, TAIL GATE, LH
66202-96303

WU75..CBU

 1
66202-93202

WU75..CBU

 1
66202-93200

WU75..CBU

 1
66232 - HINGE, SIDE GATE, LOWER NO.1
66232-96304

WU75..CBU

 10
66232 - HINGE, SIDE GATE, LOWER NO.1
66232-96304

WU75..CBU

 10
66233 - PIN, SIDE GATE HINGE
66233-96304

WU75..CBU

 10
90240-10024

WU75..CBU

 10
66251 - LEVER, SIDE GATE STOPPER, RH
66251-96304

WU75..CBU

FRONT

 1
66261-96304

WU75..CBU

REAR

 1
66261 - LEVER, SIDE GATE STOPPER, LH
66261-96304

WU75..CBU

FRONT

 1
66251-96304

WU75..CBU

REAR

 1
66321B - BUMPER, GATE RUBBER
66321-93103

WU75,YU61..CBU

 4
Common parts
90240-10101
90468-18003
90502-26054
90508-29013
93280-16020
94110-40600
94611-10600
94612-11000
95381-02520

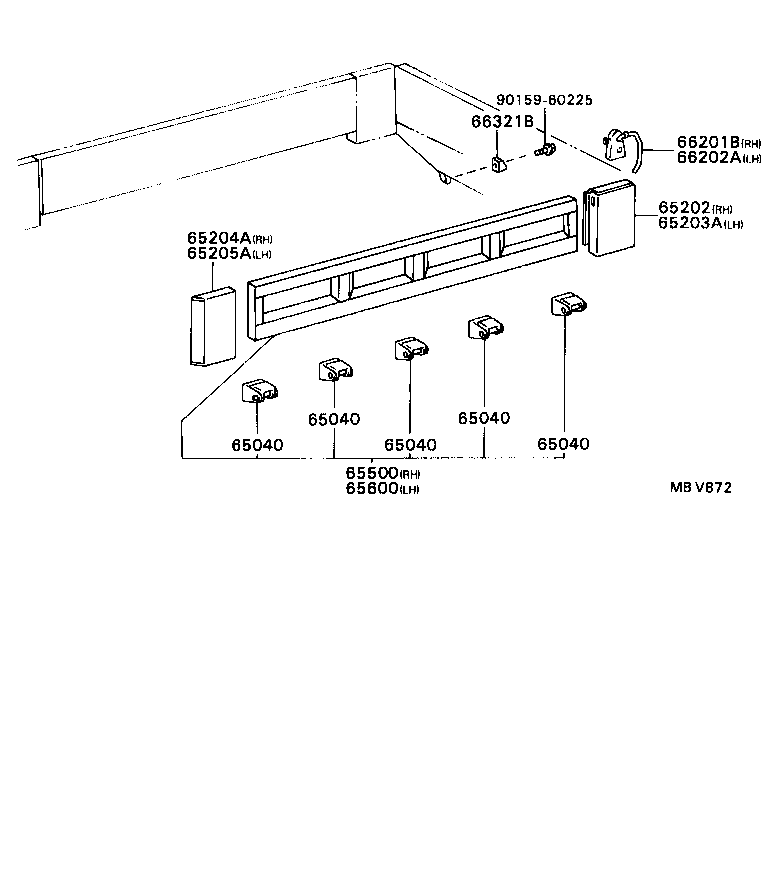

(9109- )WU75

Click highlighted areas on diagram

diagram 65040 65040 65040 65040 65040 65202 65203A 65204A 65205A 65500 65600 66201B 66202A 66321B 9015960225
Part # Description Qty Price
65040 - HINGE ASSY, SIDE GATE 1
65050-93200

WU75..CBU

LH−1ST,3RD,4TH,5TH

 4
65040-93200

WU75..CBU

RH−2ND

 1
65040-93200

WU75..CBU

RH−1ST,3RD,4TH,5TH

 4
65050-93200

WU75..CBU

LH−2ND

 1
65040 - HINGE ASSY, SIDE GATE 1
65050-93200

WU75..CBU

LH−1ST,3RD,4TH,5TH

 4
65040-93200

WU75..CBU

RH−2ND

 1
65040-93200

WU75..CBU

RH−1ST,3RD,4TH,5TH

 4
65050-93200

WU75..CBU

LH−2ND

 1
65040 - HINGE ASSY, SIDE GATE 1
65050-93200

WU75..CBU

LH−1ST,3RD,4TH,5TH

 4
65040-93200

WU75..CBU

RH−2ND

 1
65040-93200

WU75..CBU

RH−1ST,3RD,4TH,5TH

 4
65050-93200

WU75..CBU

LH−2ND

 1
65040 - HINGE ASSY, SIDE GATE 1
65050-93200

WU75..CBU

LH−1ST,3RD,4TH,5TH

 4
65040-93200

WU75..CBU

RH−2ND

 1
65040-93200

WU75..CBU

RH−1ST,3RD,4TH,5TH

 4
65050-93200

WU75..CBU

LH−2ND

 1
65040 - HINGE ASSY, SIDE GATE 1
65050-93200

WU75..CBU

LH−1ST,3RD,4TH,5TH

 4
65040-93200

WU75..CBU

RH−2ND

 1
65040-93200

WU75..CBU

RH−1ST,3RD,4TH,5TH

 4
65050-93200

WU75..CBU

LH−2ND

 1
65202 - POST SUB-ASSY, SIDE GATE, REAR RH
65202-96309

WU75..CBU

 1
65202-93200

WU75..CBU

 1
65203A - POST SUB-ASSY, SIDE GATE, REAR LH
65203-93200

WU75..CBU

 1
65203-96309

WU75..CBU

 1
65204A - POST SUB-ASSY, SIDE GATE, RH
65233-93200

WU75..CBU

 1
65204-96304

WU75..CBU

 1
65205A - POST SUB-ASSY, SIDE GATE, LH
65234-93202

WU75..CBU

 1
65205-96304

WU75..CBU

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65501-96311

WU75..CBU

 1
65500-93200

WU75..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65501-96311

WU75..CBU

 1
65600-93200

WU75..CBU

 1
66201B - LATCH SUB-ASSY, TAIL GATE, RH
66201-93202

WU75..CBU

 1
66201-96304

WU75..CBU

 1
66202A - LATCH SUB-ASSY, TAIL GATE, LH
66202-96303

WU75..CBU

 1
66202-93202

WU75..CBU

 1
66202-93200

WU75..CBU

 1
66321B - BUMPER, GATE RUBBER
66321-93103

WU75,YU61..CBU

 4
Common parts
90159-60225
