WU75D-MDT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )B,11B,13B#..CBU,IV3

Click highlighted areas on diagram

24V 30A

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9009914055 9010510041 9011908344 9017906158 9165140616 9331515012
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90105-10041
90119-08344
90179-06158
91651-40616
93315-15012

(0610-1010)N04C..XZU378..IV4 ; (0610-1010)N04C..XZU304..T3,T4,T5..IV3,IV4 ; (0610-1

Click highlighted areas on diagram

24V 80A

diagram 27020 27020E 27352 27370 27387 27411 9009905171 9009905284 9017906158
Part # Description Qty Price
Common parts
90099-05171
90099-05284
90179-06158

(8708- )1W

Click highlighted areas on diagram

24V 30A

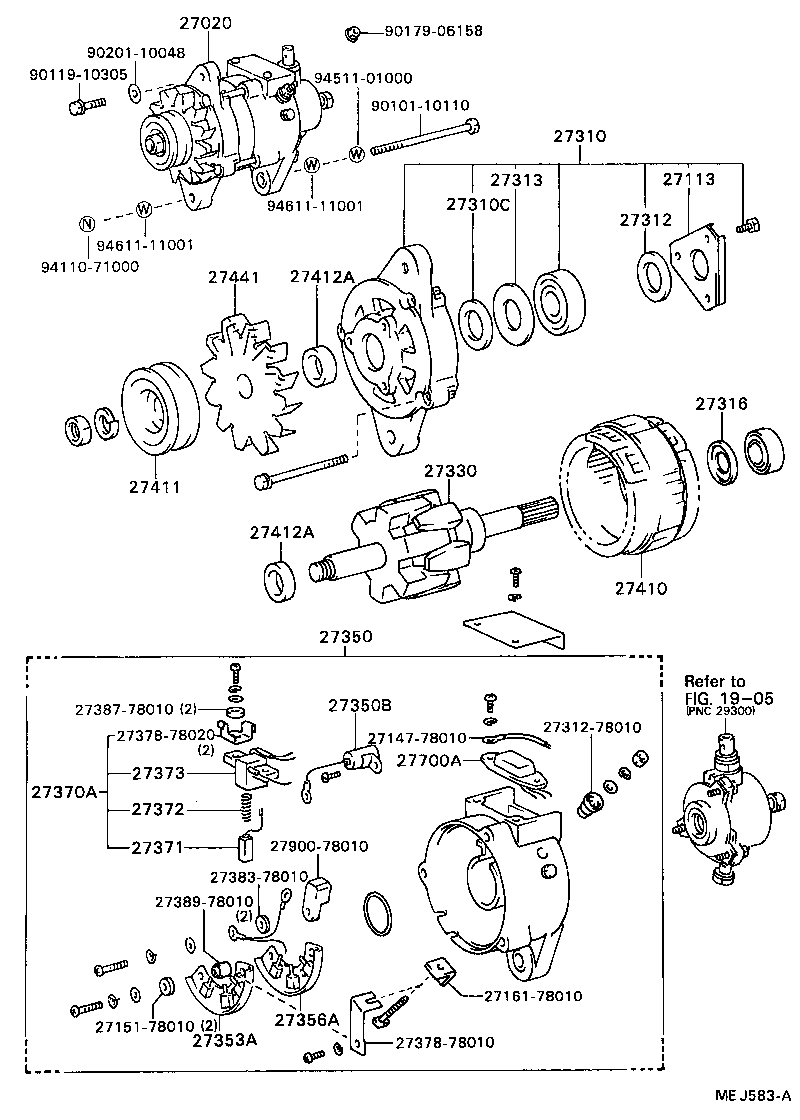

diagram 1905 27020 27113 2714778010 2715178010 2716178010 27310 27310C 27312 2731278010 27313 27316 27330 27350 27350B 27353A 27356A 27370A 27371 27372 27373 2737878010 2737878020 2738378010 2738778010 2738978010 27410 27411 27412A 27412A 27441 27700A 2790078010 9010110110 9011910305 9017906158 9020110048 9411071000 9451101000 9461111001 9461111001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27040-78020

1W..WU75,9#

24V 30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27135-78010

1W..WU75,9#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-78020

1W..WU75,9#

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
27315-78010

1W..WU75,9#

 1
27312 - PLATE, RETAINER
27312-78020

1W..WU75,9#

NO.2

 1
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-78010

1W..WU75,9#

 1
27316 - PACKING, RETAINER PLATE, ALTERNATOR
27316-78010

1W..WU75,9#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-78030

1W..WU75,9#

 1
27350 - FRAME ASSY, RECTIFIER END
27350-78010

1W..WU75,9#

 1
27350B - CONDENSER, ALTERNATOR
27355-78010

1W..WU75,9#

 1
27353A - HOLDER, W/RECTIFIER
27353-78020

1W..WU75,9#

 1
27356A - HOLDER SUB-ASSY, RECTIFIER
27356-78010

1W..WU75,9#

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-78010

1W..WU75,9#

 1
27371 - BRUSH, ALTERNATOR
27373-78010

1W..WU75,9#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-78010

1W..WU75,9#

 2
27373 - HOLDER, ALTERNATOR BRUSH, A
27383-78020

1W..WU75,9#

 1
27410 - STATOR ASSY, ALTERNATOR
27410-78030

1W..WU75,9#

 1
27411 - PULLEY, ALTERNATOR
27430-78020

1W..WU75,9#

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-78010

1W..WU75,9#

 2
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-78010

1W..WU75,9#

 2
27441 - FAN, ALTERNATOR
27441-78010

1W..WU75,9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-78010

1W..WU75,9#

 1
Common parts
27147-78010
27151-78010
27161-78010
27312-78010
27378-78010
27378-78020
27383-78010
27387-78010
27389-78010
27900-78010
90101-10110
90119-10305
90179-06158
90201-10048
94110-71000
94511-01000
94611-11001
Linked diagrams
1905
