WU75D-MDT (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 8127995700 81510 81510B 81510B 81511 81512 81518 8151910190 81520 81521 81522 81528 9356815012
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39535

WU75,9#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-12009

WU75,9#

24V 5W,24V 6W(PARKING)

 2
99134-11250

WU75,9#

24V 25W,24V 25W(TURN)

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-12009

WU75,9#

24V 5W,24V 6W(PARKING)

 2
99134-11250

WU75,9#

24V 25W,24V 25W(TURN)

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95406

WU75,9#,YU6#,70,80

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-95406

WU75,9#,YU6#,70,80

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-95406

WU75,9#,YU6#,70,80

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39535

WU75,9#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81511-95406

WU75,9#,YU6#,70,80

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-95406

WU75,9#,YU6#,70,80

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81517-95406

WU75,9#,YU6#,70,80

 1
Common parts
81279-95700
81519-10190
93568-15012

(0610-0908)35T,40T

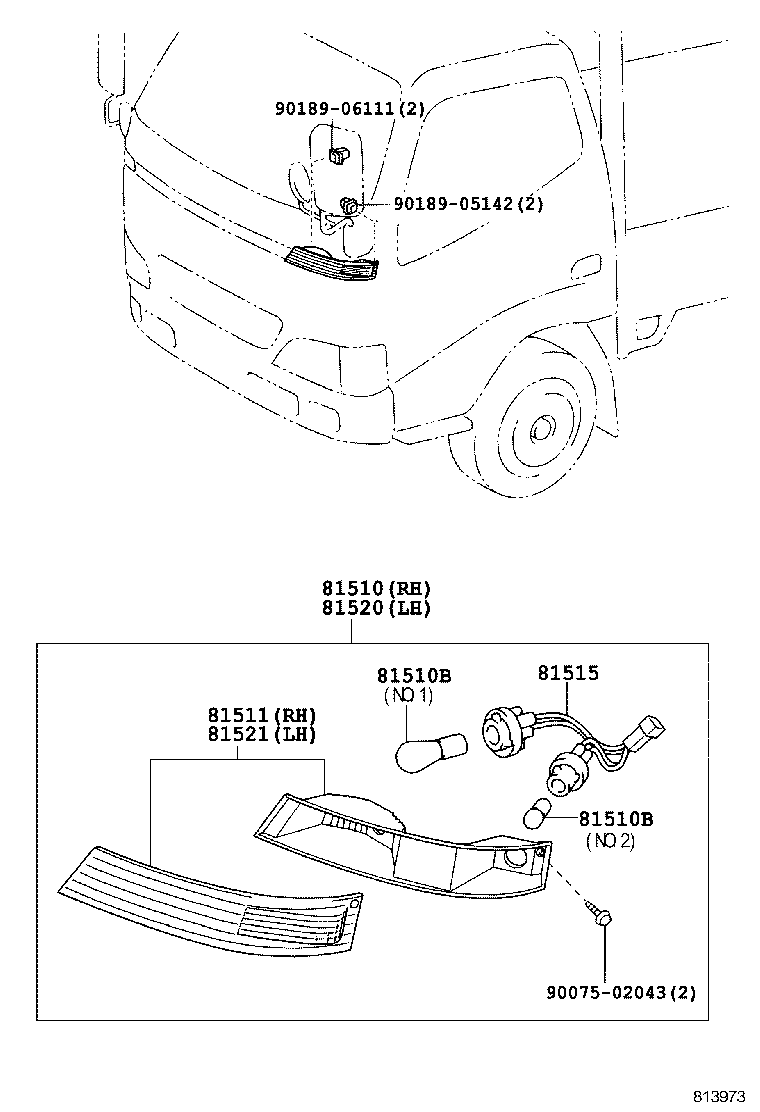

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81515 81520 81521 9007502043 9018905142 9018906111
Part # Description Qty Price
Common parts
90075-02043
90189-05142
90189-06111

(8409- )

Click highlighted areas on diagram

diagram 8127995700 81510 81510B 81510B 81511 81512 81518 8151910190 81520 81521 81522 81528 9356815012
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39535

WU75,9#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-12009

WU75,9#

24V 5W,24V 6W(PARKING)

 2
99134-11250

WU75,9#

24V 25W,24V 25W(TURN)

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-12009

WU75,9#

24V 5W,24V 6W(PARKING)

 2
99134-11250

WU75,9#

24V 25W,24V 25W(TURN)

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95406

WU75,9#,YU6#,70,80

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-95406

WU75,9#,YU6#,70,80

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-95406

WU75,9#,YU6#,70,80

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39535

WU75,9#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81511-95406

WU75,9#,YU6#,70,80

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-95406

WU75,9#,YU6#,70,80

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81517-95406

WU75,9#,YU6#,70,80

 1
Common parts
81279-95700
81519-10190
93568-15012
