WU75D-MDT (1984)
Toyota Dyna/Toyoace
Production
Sep 1984
-
Aug 1987
Engine
1W
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

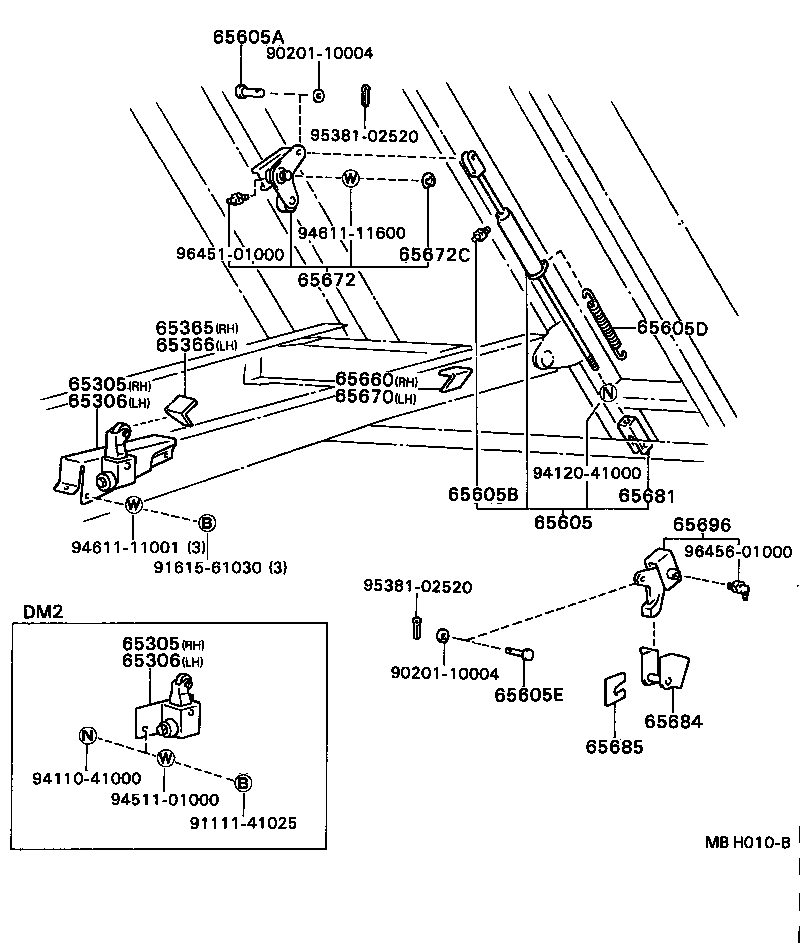

(8409- )DM1,DM2,DM4
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65605 - LINK SUB-ASSY, TAIL GATE LOCK | ||||
| 65605-96310 |
WU75 |
2 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-12045 |
WU75 |
2 | ||
| 65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK) | ||||
| 96451-00600 |
WU75 |
1 | ||
| 65672 - ARM, TAIL GATE LOCK ROLLER | ||||
| 65671-96304 |
WU75 RH |
1 | ||
| 65674-96304 |
WU75 LH |
1 | ||
| 65696 - LATCH, TAIL GATE LOCK | ||||
| 65696-96301 |
WU75 |
2 | ||
| Common parts | ||||
| 90201-10004 | ||||
| 91111-41025 | ||||
| 91615-61030 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 94611-11600 | ||||
| 95381-02520 | ||||
| 96451-01000 | ||||
| 96456-01000 | ||||

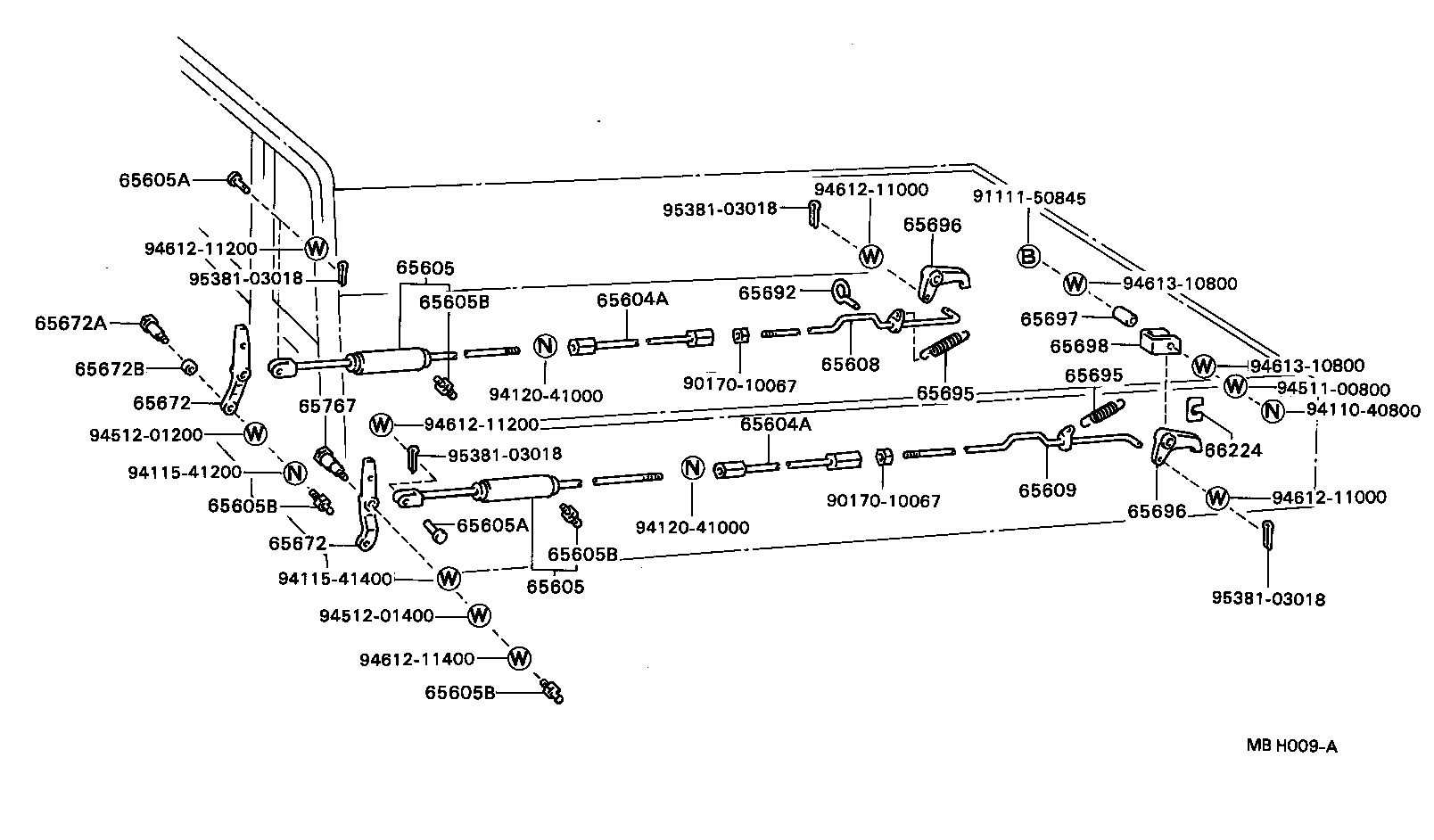

(8409- )WU75
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65604A - LINK SUB-ASSY, TAIL GATE LOCK CONNECTING | ||||
| 65604-96304 |
WU75 |
2 | ||
| 65604A - LINK SUB-ASSY, TAIL GATE LOCK CONNECTING | ||||
| 65604-96304 |
WU75 |
2 | ||
| 65605 - LINK SUB-ASSY, TAIL GATE LOCK | ||||
| 65605-96310 |
WU75 |
2 | ||
| 65605 - LINK SUB-ASSY, TAIL GATE LOCK | ||||
| 65605-96310 |
WU75 |
2 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-12045 |
WU75 |
2 | ||
| 65605A - PIN, TAIL GATE LOCK LINK | ||||
| 90240-12045 |
WU75 |
2 | ||
| 65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK) | ||||
| 96451-00600 |
WU75 |
1 | ||
| 65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK) | ||||
| 96451-00600 |
WU75 |
1 | ||
| 65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK) | ||||
| 96451-00600 |
WU75 |
1 | ||
| 65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK) | ||||
| 96451-00600 |
WU75 |
1 | ||
| 65608 - LINK SUB-ASSY, TAIL GATE LOCK, REAR RH | ||||
| 65608-96304 |
WU75 |
1 | ||
| 65609 - LINK SUB-ASSY, TAIL GATE LOCK, REAR LH | ||||
| 65609-96304 |
WU75 |
1 | ||
| 65672 - ARM, TAIL GATE LOCK ROLLER | ||||
| 65671-96304 |
WU75 RH |
1 | ||
| 65674-96304 |
WU75 LH |
1 | ||
| 65672 - ARM, TAIL GATE LOCK ROLLER | ||||
| 65671-96304 |
WU75 RH |
1 | ||
| 65674-96304 |
WU75 LH |
1 | ||
| 65672A - SHAFT, ROLLER | ||||
| 65673-96305 |
WU75 |
2 | ||
| 65672B - ROLLER, TAIL GATE LOCK | ||||
| 65603-96304 |
WU75 |
2 | ||
| 65692 - GUIDE, LINK | ||||
| 65692-96301 |
WU75 |
4 | ||
| 65695 - SPRING, BACK(FOR TAIL GATE LOCK LATCH) | ||||
| 90506-23406 |
WU75 |
2 | ||
| 65695 - SPRING, BACK(FOR TAIL GATE LOCK LATCH) | ||||
| 90506-23406 |
WU75 |
2 | ||
| 65696 - LATCH, TAIL GATE LOCK | ||||
| 65696-96301 |
WU75 |
2 | ||
| 65696 - LATCH, TAIL GATE LOCK | ||||
| 65696-96301 |
WU75 |
2 | ||
| 65697 - PIN, LATCH | ||||
| 65697-96303 |
WU75 |
2 | ||
| 65698 - BRACKET, TAIL GATE LATCH | ||||
| 65698-96304 |
WU75 |
2 | ||
| 65767 - SHAFT, ROLLER | ||||
| 65677-96303 |
WU75 |
2 | ||
| 66224 - SUPPORT, TAIL GATE HINGE PIN | ||||
| 66224-96303 |
WU75 |
2 | ||
| Common parts | ||||
| 90170-10067 | ||||
| 91111-50845 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94120-41000 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94612-11000 | ||||
| 94612-11200 | ||||
| 94612-11400 | ||||
| 94613-10800 | ||||
| 95381-03018 | ||||
(8808-9109)WU75
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-10067 | ||||
| 90506-20032 | ||||
| 90506-23406 | ||||
| 91111-50845 | ||||
| 91131-70825 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94612-11000 | ||||
| 94612-11200 | ||||
| 94612-11400 | ||||
| 94613-10800 | ||||
| 95381-03018 | ||||
| 96451-00600 | ||||
