WU40-MRDHT (1983)

Toyota Dyna/Toyoace

Production Apr 1983 - Aug 1984
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8304- )WU26,40,50

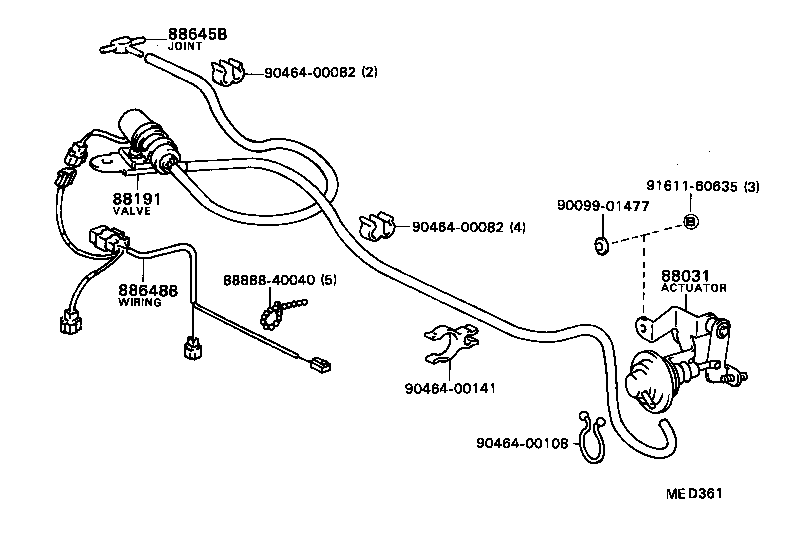

Click highlighted areas on diagram

diagram 88031 88191 88645B 88648B 8888840040 9009901477 9046400082 9046400082 9046400108 9046400141 9161160635
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-89010

WU26,40,50

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

WU26,40,50

 1
88648B - WIRING, COOLER, NO.1
88648-95405

WU26,40,50

 1
Common parts
88888-40040
90099-01477
90464-00082
90464-00108
90464-00141
91611-60635
