TRY281-TQPGC3 (2007)

Toyota Dyna/Toyoace

Production Dec 2007 - Sep 9999
Engine 1TRFPE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )1TRFPE

Click highlighted areas on diagram

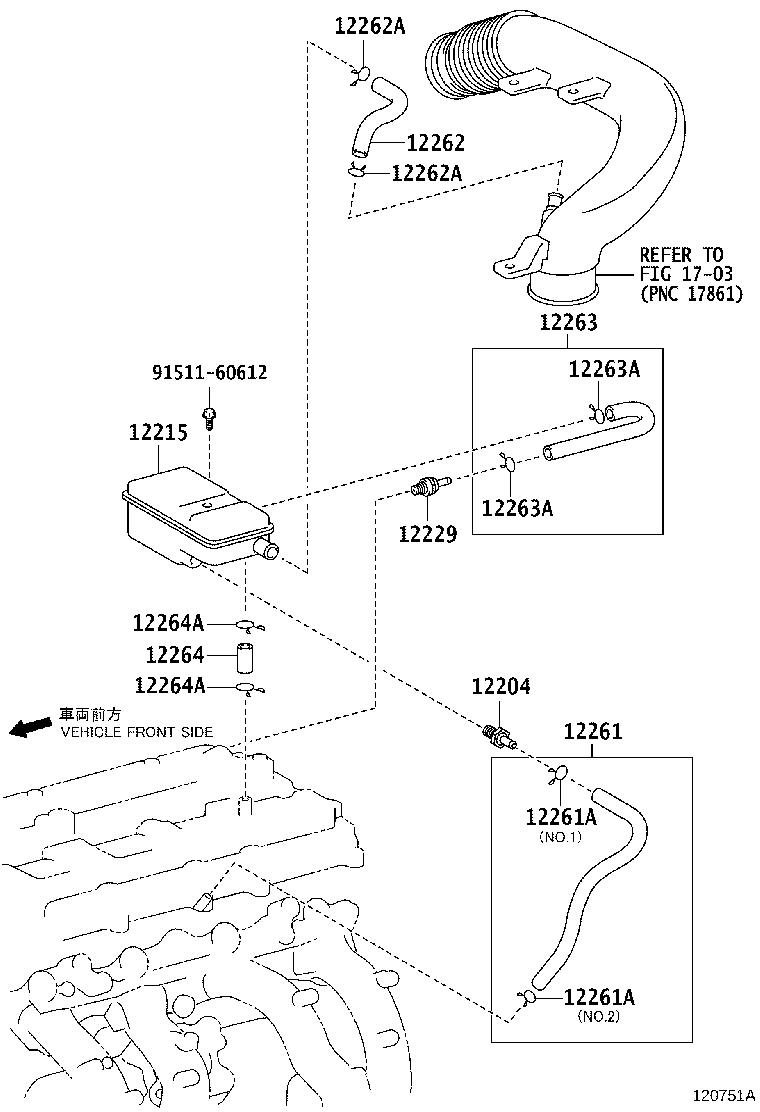

diagram 12204 12215 12229 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A 12264 12264A 12264A 1703 9151160612
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-75030

1TRFPE..TRY231,281

 1
12215 - SEPARATOR, CASE
12215-75010

1TRFPE..TRY231,281

 1
12215-75011

1TRFPE..TRY231,281

 1
12229 - PIPE, VENTILATION
12229-75060

1TRFPE..TRY231,281

 1
12261 - HOSE, VENTILATION
12261-75120

1TRFPE..TRY231,281

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1TRFPE..TRY231,281

NO.1

 1
90467-15006

1TRFPE..TRY231,281

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1TRFPE..TRY231,281

NO.1

 1
90467-15006

1TRFPE..TRY231,281

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12262-75230

1TRFPE..TRY231,281

 1
12263 - HOSE, VENTILATION, NO.3
12263-75080

1TRFPE..TRY231,281

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-21004

1TRFPE..TRY231,281

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-21004

1TRFPE..TRY231,281

 2
12264 - HOSE, VENTILATION, NO.4
12264-75010

1TRFPE..TRY231,281

 1
12264A - CLIP(FOR VENTILATION HOSE)
90467-21004

1TRFPE..TRY231,281

 2
12264A - CLIP(FOR VENTILATION HOSE)
90467-21004

1TRFPE..TRY231,281

 2
Common parts
91511-60612
Linked diagrams
1703
