TRY281-TQMGC3 (2007)

Toyota Dyna/Toyoace

Production Dec 2007 - Sep 9999
Engine 1TRFPE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )1TRFPE

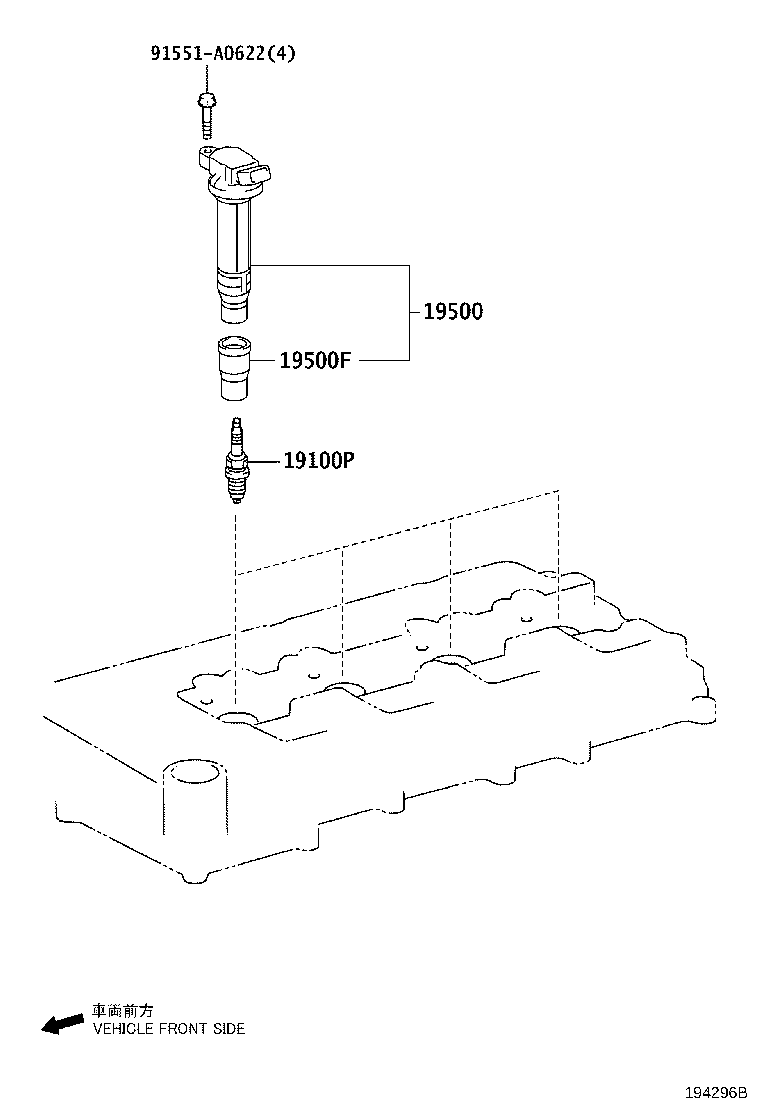

Click highlighted areas on diagram

diagram 19100P 19500 19500F 91551A0622
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01254

1TRFPE..TRY231,281

SK20HR8―T

 4
90919-01277

1TRFPE..TRY231,281

SK20HR−GT8

 4
19500 - COIL ASSY, IGNITION
90919-02253

1TRFPE..TRY231,281

 4
90919-02274

1TRFPE..TRY231,281

 4
90919-02268

1TRFPE..TRY231,281

 4
19500F - CAP, PLUG
90919-11010

1TRFPE..TRY231,281

 4
90919-11008

1TRFPE..TRY231,281

 4
Common parts
91551-A0622
