Toyota Dyna/toyoace TRY230 OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
TRY230-TLPDK (2003)
8410 - OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

TRY230-TLPDK (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999

Engine 1TRFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0107-1610)LY230,280..TB..ATM ; (0107-1610)RZY231,281,TRY220,23#,281..ATM

Click highlighted areas on diagram

Part #	Description	Period	Qty
84722 - SWITCH, TRANSMISSION CONTROL
84722-37020B0	KDY221..TS..ATM;KDY231..TB..ATM..125T;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4)..ATM..(CBU,IV3);KDY220,230,28#,LY220,230,280,RZY220,23#,281,TRY220,231,281..ATM DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
84722-37020B0	KDY221..TS..ATM;KDY231..ST..IV6;KDY231..TB..ATM..125T;KDY220,230,28#,TRY231,281..ATM;KDY231..(T2,T3,T4)..ATM..(CBU,IV3) DK.CHARCOAL,TRIM1#	08/2004 - 05/2015	1
84722-37020B0	LY220,230,280,RZY220,23#,281,TRY220,230..ATM DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
84722-37021	KDY221,231,281,TRY220,23#,281..ATM	05/2015 - 12/2999	1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-22010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89428D - SWITCH, TEMPERATURE, NO.2
89428-36030	LY220,230,280,RZY220,230..ATM..(DSL,EFI)	07/2001 - 08/2004	1
89429A - SENSOR, TEMPERATURE
89429-34010	LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM	07/2001 - 12/2999	1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-25070	LY220,230,280..TS..ATM	07/2001 - 08/2004	1
89530-25120	KDY220,230..ATM..125T..ST	08/2004 - 08/2007	1
89539 - BRACKET, TRANSMISSION CONTROL COMPUTER
89539-25010	TRY230..ATM..15T;KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY231,281..ATM	07/2001 - 10/2016	1
Common parts
91551-80814
91611-B0616

(0107-0408)LY220,230,280,RZY220,230..TS..ATM

Click highlighted areas on diagram

Part #	Description	Period	Qty
84722 - SWITCH, TRANSMISSION CONTROL
84722-37020B0	KDY221..TS..ATM;KDY231..TB..ATM..125T;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4)..ATM..(CBU,IV3);KDY220,230,28#,LY220,230,280,RZY220,23#,281,TRY220,231,281..ATM DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
84722-37020B0	KDY221..TS..ATM;KDY231..ST..IV6;KDY231..TB..ATM..125T;KDY220,230,28#,TRY231,281..ATM;KDY231..(T2,T3,T4)..ATM..(CBU,IV3) DK.CHARCOAL,TRIM1#	08/2004 - 05/2015	1
84722-37020B0	LY220,230,280,RZY220,23#,281,TRY220,230..ATM DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
84722-37021	KDY221,231,281,TRY220,23#,281..ATM	05/2015 - 12/2999	1
85420H - RING, O(FOR SPEED SENSOR)
96721-24011	LY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411C - SENSOR, SPEED
89411-28020	LY220,230,RZY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411-50010	KDY22#,23#,28#..ATM..(125T,1T)..ST	08/2004 - 12/2999	2
89411-50010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89428D - SWITCH, TEMPERATURE, NO.2
89428-36030	LY220,230,280,RZY220,230..ATM..(DSL,EFI)	07/2001 - 08/2004	1
89429A - SENSOR, TEMPERATURE
89429-34010	LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM	07/2001 - 12/2999	1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-25070	LY220,230,280..TS..ATM	07/2001 - 08/2004	1
89530-25120	KDY220,230..ATM..125T..ST	08/2004 - 08/2007	1
89539 - BRACKET, TRANSMISSION CONTROL COMPUTER
89539-25010	TRY230..ATM..15T;KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY231,281..ATM	07/2001 - 10/2016	1
Common parts
91551-80814
91611-B0610
91651-40820

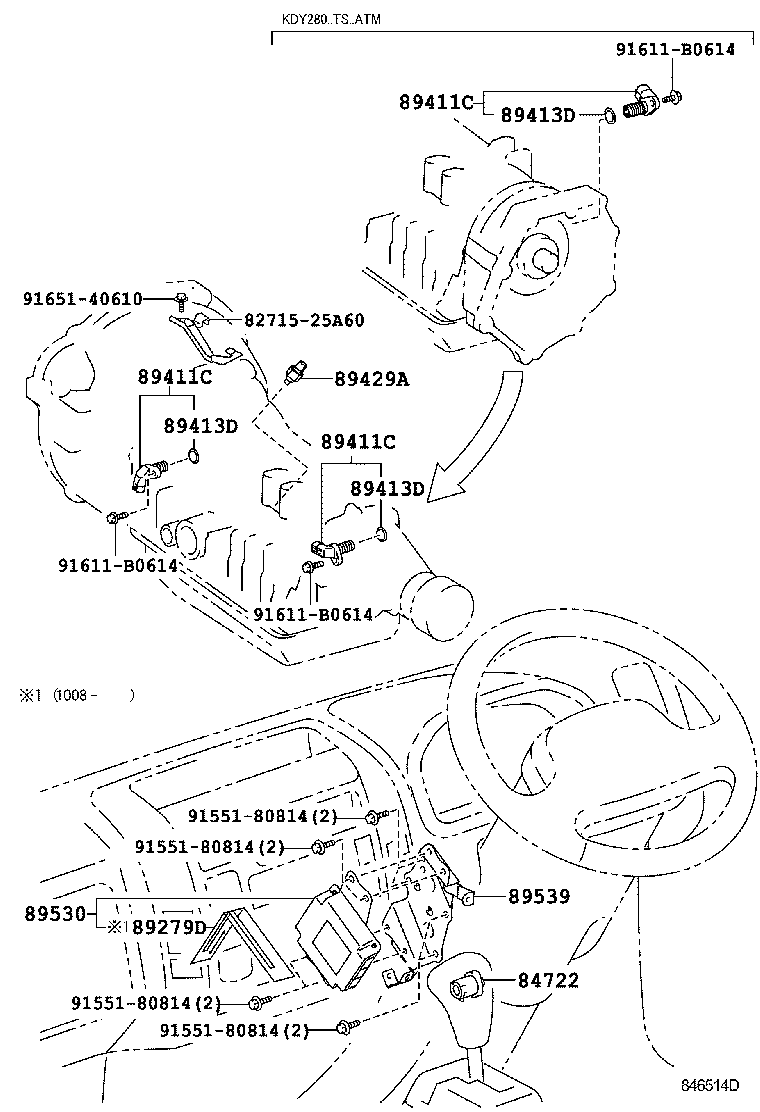

(0308-1610)KDY22#,28#,TRY220,230..ATM..125T,1T..ST ; (0408-1610)KDY23#..TS..ATM

Click highlighted areas on diagram

Part #	Description	Period	Qty
84722 - SWITCH, TRANSMISSION CONTROL
84722-37020B0	KDY221..TS..ATM;KDY231..TB..ATM..125T;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4)..ATM..(CBU,IV3);KDY220,230,28#,LY220,230,280,RZY220,23#,281,TRY220,231,281..ATM DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
84722-37020B0	KDY221..TS..ATM;KDY231..ST..IV6;KDY231..TB..ATM..125T;KDY220,230,28#,TRY231,281..ATM;KDY231..(T2,T3,T4)..ATM..(CBU,IV3) DK.CHARCOAL,TRIM1#	08/2004 - 05/2015	1
84722-37020B0	LY220,230,280,RZY220,23#,281,TRY220,230..ATM DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
84722-37021	KDY221,231,281,TRY220,23#,281..ATM	05/2015 - 12/2999	1
89411C - SENSOR, SPEED
89411-28020	LY220,230,RZY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411-50010	KDY22#,23#,28#..ATM..(125T,1T)..ST	08/2004 - 12/2999	2
89411-50010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89411C - SENSOR, SPEED
89411-28020	LY220,230,RZY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411-50010	KDY22#,23#,28#..ATM..(125T,1T)..ST	08/2004 - 12/2999	2
89411-50010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89411C - SENSOR, SPEED
89411-28020	LY220,230,RZY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411-50010	KDY22#,23#,28#..ATM..(125T,1T)..ST	08/2004 - 12/2999	2
89411-50010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89429A - SENSOR, TEMPERATURE
89429-34010	LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM	07/2001 - 12/2999	1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-25070	LY220,230,280..TS..ATM	07/2001 - 08/2004	1
89530-25120	KDY220,230..ATM..125T..ST	08/2004 - 08/2007	1
89539 - BRACKET, TRANSMISSION CONTROL COMPUTER
89539-25010	TRY230..ATM..15T;KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY231,281..ATM	07/2001 - 10/2016	1
Common parts
82715-25A60
91551-80814
91611-B0614
91651-40610

ILLUST NO. 1 OF 2(0308- )TRY220,230..ATM..125T ; (1610- )ATM..125T,1T..ST

Click highlighted areas on diagram

ﾄﾗﾝｽﾐｯｼｮﾝ(A45DE,A340E,A340F)

Part #	Description	Period	Qty
89411C - SENSOR, SPEED
89411-28020	LY220,230,RZY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411-50010	KDY22#,23#,28#..ATM..(125T,1T)..ST	08/2004 - 12/2999	2
89411-50010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89411C - SENSOR, SPEED
89411-28020	LY220,230,RZY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411-50010	KDY22#,23#,28#..ATM..(125T,1T)..ST	08/2004 - 12/2999	2
89411-50010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89411C - SENSOR, SPEED
89411-28020	LY220,230,RZY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411-50010	KDY22#,23#,28#..ATM..(125T,1T)..ST	08/2004 - 12/2999	2
89411-50010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89411C - SENSOR, SPEED
89411-28020	LY220,230,RZY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411-50010	KDY22#,23#,28#..ATM..(125T,1T)..ST	08/2004 - 12/2999	2
89411-50010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89411C - SENSOR, SPEED
89411-28020	LY220,230,RZY220,230..ATM..125T..ST	07/2001 - 08/2004	1
89411-50010	KDY22#,23#,28#..ATM..(125T,1T)..ST	08/2004 - 12/2999	2
89411-50010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-22010	TRY220,230..ATM..125T	08/2003 - 12/2999	1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	KDY22#,23#,28#,TRY220,230..ATM..(125T,1T)..ST	08/2003 - 12/2999	2
89429A - SENSOR, TEMPERATURE
89429-34010	LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM	07/2001 - 12/2999	1
89429A - SENSOR, TEMPERATURE
89429-34010	LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM	07/2001 - 12/2999	1
89429A - SENSOR, TEMPERATURE
89429-34010	LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM	07/2001 - 12/2999	1
Common parts
82715-25A60
90119-06875
91611-B0614
91651-40610

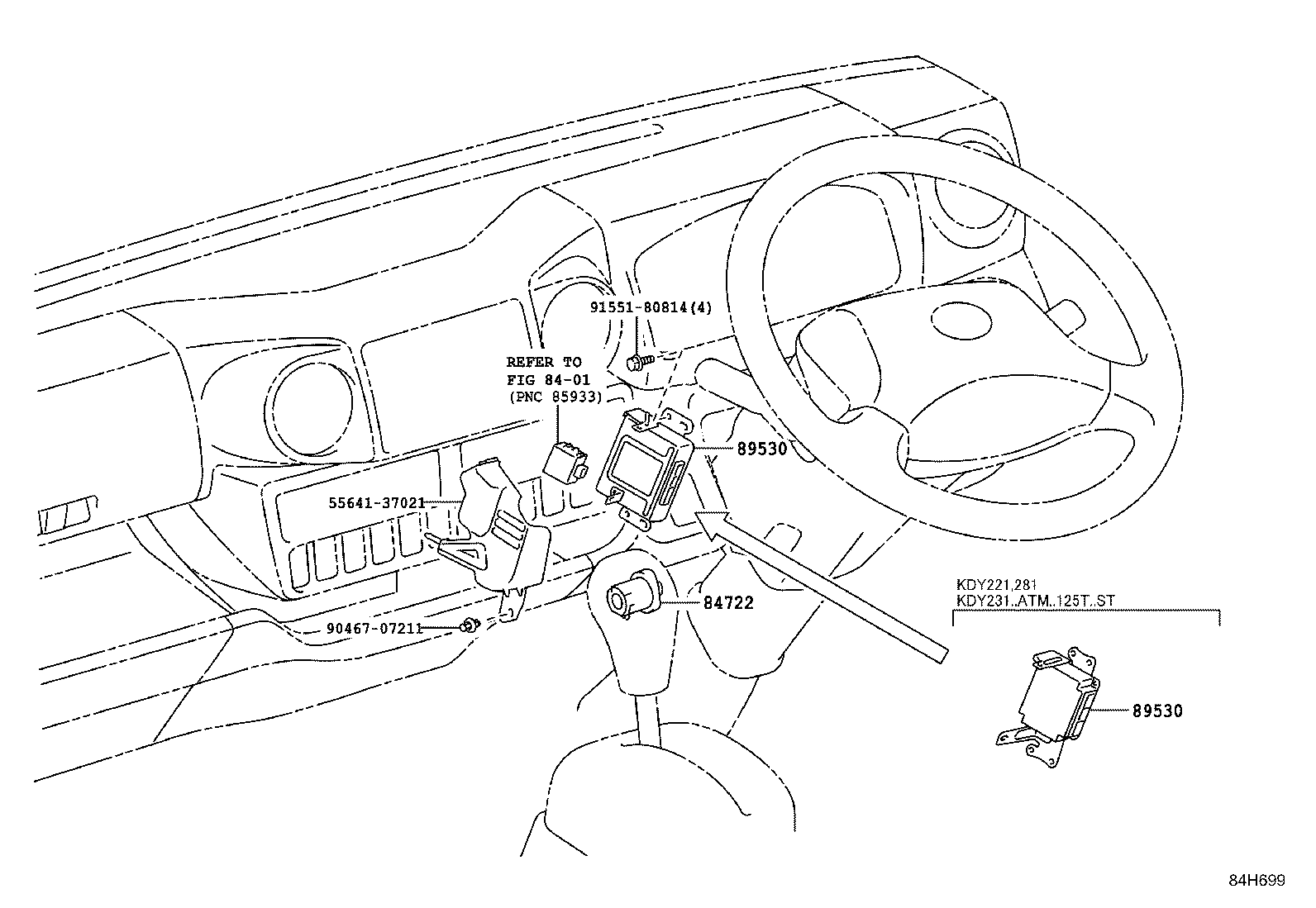

ILLUST NO. 2 OF 2(1610- )ATM

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
84722 - SWITCH, TRANSMISSION CONTROL
84722-37020B0	KDY221..TS..ATM;KDY231..TB..ATM..125T;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4)..ATM..(CBU,IV3);KDY220,230,28#,LY220,230,280,RZY220,23#,281,TRY220,231,281..ATM DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
84722-37020B0	KDY221..TS..ATM;KDY231..ST..IV6;KDY231..TB..ATM..125T;KDY220,230,28#,TRY231,281..ATM;KDY231..(T2,T3,T4)..ATM..(CBU,IV3) DK.CHARCOAL,TRIM1#	08/2004 - 05/2015	1
84722-37020B0	LY220,230,280,RZY220,23#,281,TRY220,230..ATM DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
84722-37021	KDY221,231,281,TRY220,23#,281..ATM	05/2015 - 12/2999	1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-25070	LY220,230,280..TS..ATM	07/2001 - 08/2004	1
89530-25120	KDY220,230..ATM..125T..ST	08/2004 - 08/2007	1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-25070	LY220,230,280..TS..ATM	07/2001 - 08/2004	1
89530-25120	KDY220,230..ATM..125T..ST	08/2004 - 08/2007	1
Common parts
55641-37021
90467-07211
91551-80814
Linked diagrams
8401

TRY230-TLPDK (2003)

(0107-1610)LY230,280..TB..ATM ; (0107-1610)RZY231,281,TRY220,23#,281..ATM

(0107-0408)LY220,230,280,RZY220,230..TS..ATM

(0308-1610)KDY22#,28#,TRY220,230..ATM..125T,1T..ST ; (0408-1610)KDY23#..TS..ATM

ILLUST NO. 1 OF 2(0308- )TRY220,230..ATM..125T ; (1610- )ATM..125T,1T..ST

ILLUST NO. 2 OF 2(1610- )ATM
