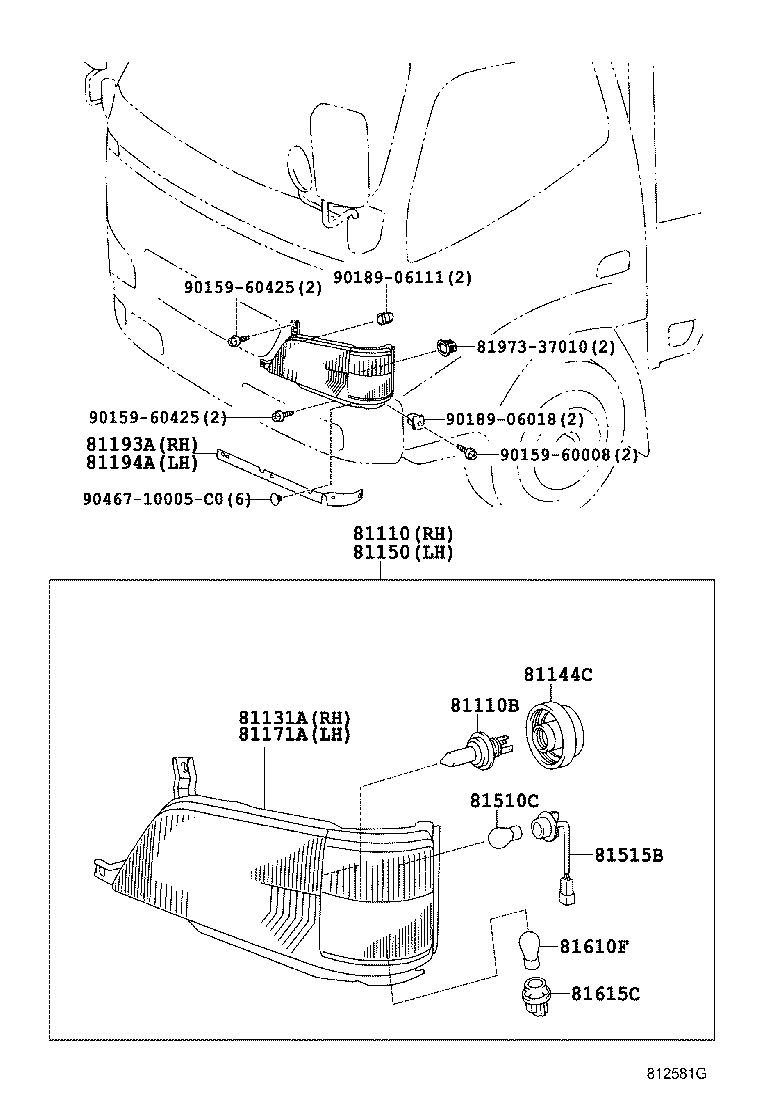

TRY230-TLPDK (2003)
Toyota Dyna/Toyoace
(0308-0505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-25231 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-25230 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-25200 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 81110-37200 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81110-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81110-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-25232 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-37463 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
LY230..TW1;TRY230..WT..IV6;LY230..TB..125T..ST;LY220,TRY230..TS..125T..WT;KDY22#,23#,24#,27#,28#,290,LY230,280,RZY220,230,TRY231,281..DCR,EFI,LPG 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13058 |
LY220,230,240,270,280,290,RZY231,281,TRY220,230 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13058 |
TRY230..ST..IV6;TRY230..TB..125T;TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);LY220,230,240,270,280,290,RZY231,281,TRY220 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-37200 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81130-37282 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81130-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81130-25200 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 81130-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81130-37352 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81130-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81130-37463 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81138-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37280 |
KDY221..T3..TB;KDY231,TRY230..WT..IV6;KDY231,TRY230..TS..125T..WT;KDY220,230,240,270,280,290,RZY231,281 |
2 | ||
| 90075-65002 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
2 | ||
| 81138-37280 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY241,271,281,TRY220,231,281;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3) |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81150-25200 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 81150-37200 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81150-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25232 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37465 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37464 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25230 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25233 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25231 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-37283 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37200 |
LY220,230,240,270,280,290 |
1 | ||
| 81170-37353 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81170-37464 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-25200 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 81170-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37465 |
KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS) |
1 | ||
| 81170-37200 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81170-37465 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 81170-25200 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37282 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81193-37040 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81193-37040 |
LY220,230,240,270,280,290 |
1 | ||
| 81193-37060 |
KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS) |
1 | ||
| 81193-37060 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 81193-37060 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81193-37040 |
LY220,230,240,270,280,290 |
1 | ||
| 81193-37060 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 81193-37060 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 81193-37040 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81193-37060 |
KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 12V 21W |
2 | ||
| 90981-15028 |
KDY221,231,241,271,281,TRY220,23#,281 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81138-37351 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37200 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
2 | ||
| 81138-37351 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37351 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81125-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-21210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 12V 21/5W |
2 | ||
| 99132-12050 |
KDY221,231,241,271,281,TRY220,23#,281 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60077 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60077 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-99106 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
2 | ||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60077 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 81973-37010 | ||||
| 90159-60008 | ||||
| 90159-60425 | ||||
| 90189-06018 | ||||
| 90189-06111 | ||||
| 90467-10005C0 | ||||

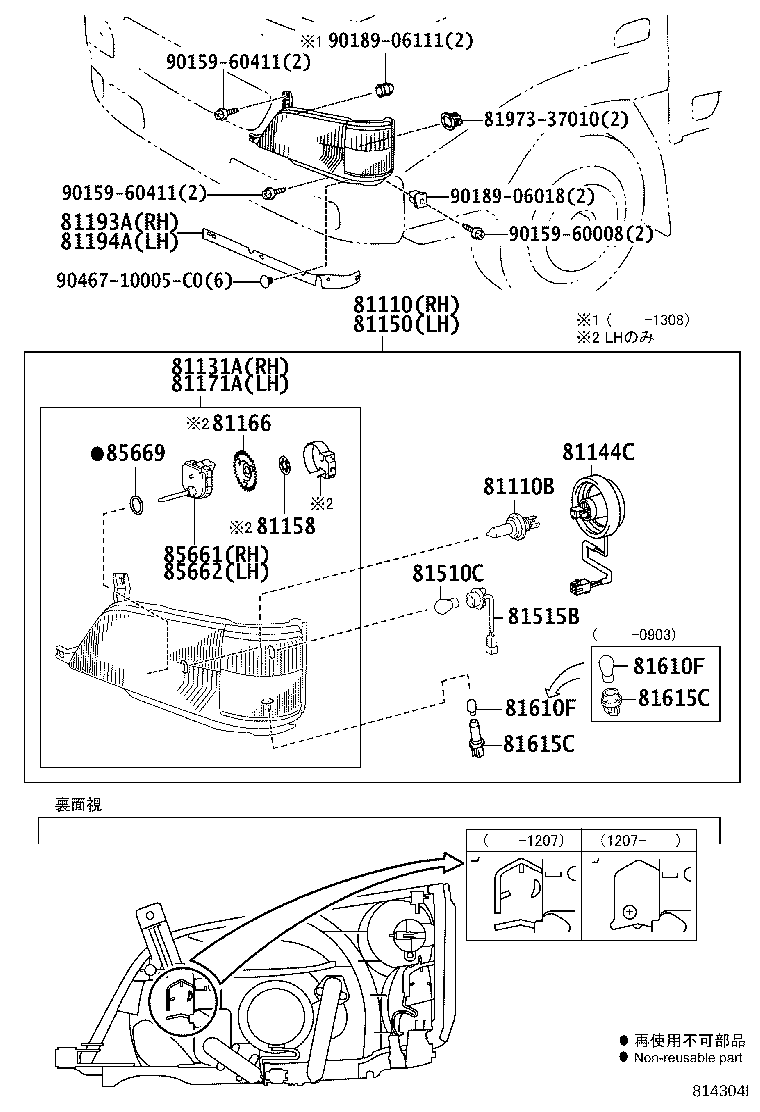

(0505-1610)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-25231 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-25230 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-25200 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 81110-37200 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81110-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81110-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-25232 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-37463 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
LY230..TW1;TRY230..WT..IV6;LY230..TB..125T..ST;LY220,TRY230..TS..125T..WT;KDY22#,23#,24#,27#,28#,290,LY230,280,RZY220,230,TRY231,281..DCR,EFI,LPG 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13058 |
LY220,230,240,270,280,290,RZY231,281,TRY220,230 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13058 |
TRY230..ST..IV6;TRY230..TB..125T;TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);LY220,230,240,270,280,290,RZY231,281,TRY220 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-37200 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81130-37282 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81130-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81130-25200 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 81130-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81130-37352 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81130-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81130-37463 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81138-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37280 |
KDY221..T3..TB;KDY231,TRY230..WT..IV6;KDY231,TRY230..TS..125T..WT;KDY220,230,240,270,280,290,RZY231,281 |
2 | ||
| 90075-65002 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
2 | ||
| 81138-37280 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY241,271,281,TRY220,231,281;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3) |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81150-25200 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 81150-37200 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81150-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25232 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37465 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37464 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25230 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25233 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25231 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81158-25233 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 81158-25233 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 81158-25233 |
KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS) |
1 | ||
| 81166 - PLATE, HEADLAMP, LH | ||||
| 81166-25233 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81166-25233 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81166-25233 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 81166-37465 |
KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS) |
1 | ||
| 81166-25233 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81166-37465 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-37283 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37200 |
LY220,230,240,270,280,290 |
1 | ||
| 81170-37353 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81170-37464 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-25200 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 81170-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37465 |
KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS) |
1 | ||
| 81170-37200 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81170-37465 |
KDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3) |
1 | ||
| 81170-25200 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81170-37282 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81193-37040 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81193-37040 |
LY220,230,240,270,280,290 |
1 | ||
| 81193-37060 |
KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS) |
1 | ||
| 81193-37060 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 81193-37060 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81193-37040 |
LY220,230,240,270,280,290 |
1 | ||
| 81193-37060 |
KDY220,230,240,270,280,290,RZY231,281 |
1 | ||
| 81193-37060 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 81193-37040 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81193-37060 |
KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 12V 21W |
2 | ||
| 90981-15028 |
KDY221,231,241,271,281,TRY220,23#,281 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81138-37351 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37200 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
2 | ||
| 81138-37351 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37351 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81125-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-21210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 12V 21/5W |
2 | ||
| 99132-12050 |
KDY221,231,241,271,281,TRY220,23#,281 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-21210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 12V 21/5W |
2 | ||
| 99132-12050 |
KDY221,231,241,271,281,TRY220,23#,281 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60077 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60077 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-99106 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
2 | ||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60077 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60077 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60077 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-99106 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
2 | ||
| 90075-60004 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 90075-60077 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-B2010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 85661-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 85661-12010 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 85661-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 85661-B2010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 81973-37010 | ||||
| 90159-60008 | ||||
| 90159-60411 | ||||
| 90189-06018 | ||||
| 90189-06111 | ||||
| 90467-10005C0 | ||||
(1610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-25231 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-25230 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-25200 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 81110-37200 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81110-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81110-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-25232 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-37463 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
LY230..TW1;TRY230..WT..IV6;LY230..TB..125T..ST;LY220,TRY230..TS..125T..WT;KDY22#,23#,24#,27#,28#,290,LY230,280,RZY220,230,TRY231,281..DCR,EFI,LPG 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13058 |
LY220,230,240,270,280,290,RZY231,281,TRY220,230 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13058 |
TRY230..ST..IV6;TRY230..TB..125T;TRY230..(T2,T3,T4,TW1,TW3)..(CBU,IV3);LY220,230,240,270,280,290,RZY231,281,TRY220 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81138-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37280 |
KDY221..T3..TB;KDY231,TRY230..WT..IV6;KDY231,TRY230..TS..125T..WT;KDY220,230,240,270,280,290,RZY231,281 |
2 | ||
| 90075-65002 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
2 | ||
| 81138-37280 |
KDY221..T3..TS;KDY221..T2,T4,TW1;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY241,271,281,TRY220,231,281;KDY231,TRY230..(T2,T3,T4,TW1,TW3,TW4)..(CBU,IV3) |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-37201 |
KDY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81150-25200 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 81150-37200 |
KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230 |
1 | ||
| 81150-37281 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37280 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25232 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37465 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37464 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25230 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25233 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-25231 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81150-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 12V 21W |
2 | ||
| 90981-15028 |
KDY221,231,241,271,281,TRY220,23#,281 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81138-37351 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37200 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 |
2 | ||
| 81138-37351 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81138-37351 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81125-37640 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-21210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281 12V 21/5W |
2 | ||
| 99132-12050 |
KDY221,231,241,271,281,TRY220,23#,281 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60020 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-B2010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 85661-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 85661-12010 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
1 | ||
| 85661-37020 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 85661-B2010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 81973-37010 | ||||
| 90159-60008 | ||||
| 90159-60411 | ||||
| 90189-06018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
