Toyota Dyna/toyoace TRY230 ALTERNATOR

TRY230-TLPDK (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999

Engine 1TRFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0308- )1TR#

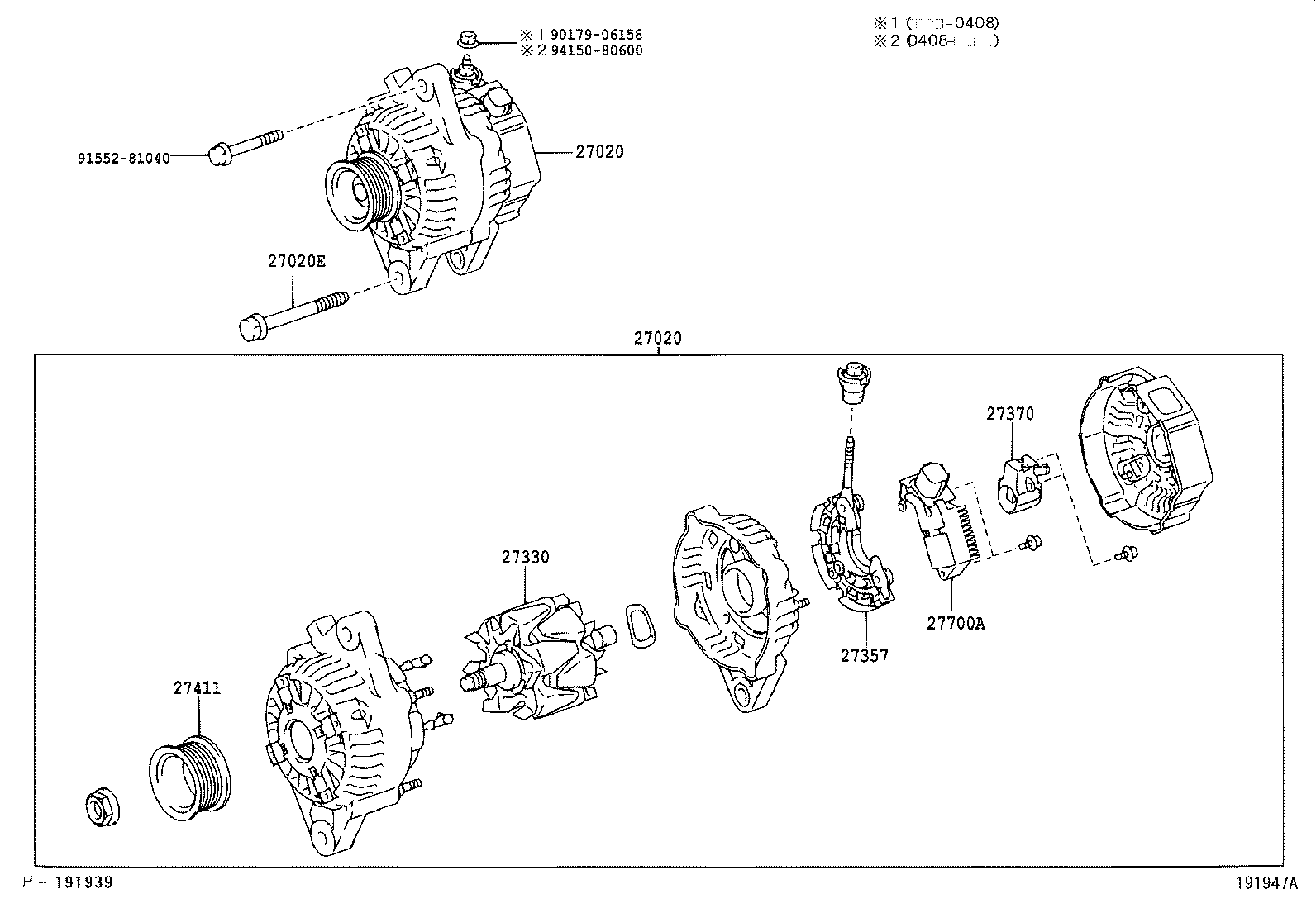

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-75311	1TR#..TRY220,23#,281 12V 80A	11/2009 - 12/2999	1
27060-75310	1TR#..TRY220,23#,281 12V 80A	08/2003 - 10/2009	1
27020 - ALTERNATOR ASSY
27060-75311	1TR#..TRY220,23#,281 12V 80A	11/2009 - 12/2999	1
27060-75310	1TR#..TRY220,23#,281 12V 80A	08/2003 - 10/2009	1
27020E - BOLT(FOR ALTERNATOR)
91552-81085	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-62220	1TRFE..TRY230;2KDFTV,1TR#..KDY220,230,240,270,280,290,TRY220,231,281..CBU,IV3 12V 80A	08/2003 - 04/2009	1
27330-30130	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	04/2009 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22200	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-23120	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-31200	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-21050	1TR#..TRY220,23#,281	11/2009 - 12/2999	1
27700-75030	1TRFE..TRY220,230 12V 80A	08/2003 - 11/2009	1
Common parts
90179-06158
91552-81040
94150-80600

(0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3

Click highlighted areas on diagram

12V 130A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-75311	1TR#..TRY220,23#,281 12V 80A	11/2009 - 12/2999	1
27060-75311	1TR#..TRY220,23#,281 12V 80A	11/2009 - 12/2999	1
27060-75310	1TR#..TRY220,23#,281 12V 80A	08/2003 - 10/2009	1
27060-75310	1TR#..TRY220,23#,281 12V 80A	08/2003 - 10/2009	1
27020E - BOLT(FOR ALTERNATOR)
91552-81085	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
91552-81085	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-62220	1TRFE..TRY230;2KDFTV,1TR#..KDY220,230,240,270,280,290,TRY220,231,281..CBU,IV3 12V 80A	08/2003 - 04/2009	1
27330-62220	1TRFE..TRY230;2KDFTV,1TR#..KDY220,230,240,270,280,290,TRY220,231,281..CBU,IV3 12V 80A	08/2003 - 04/2009	1
27330-30130	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	04/2009 - 12/2999	1
27330-30130	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	04/2009 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-23120	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27370-23120	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-31200	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27411-31200	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
Common parts
27384-50030
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
90179-06158
91552-81040
91552-81060
94150-80600

(0308- )1TRFPE..TRY231..MTM ; (0308- )1TRFE..TRY230..ST..IV6 ; (0308- )1TR

Click highlighted areas on diagram

12V 130A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-75311	1TR#..TRY220,23#,281 12V 80A	11/2009 - 12/2999	1
27060-75311	1TR#..TRY220,23#,281 12V 80A	11/2009 - 12/2999	1
27060-75310	1TR#..TRY220,23#,281 12V 80A	08/2003 - 10/2009	1
27060-75310	1TR#..TRY220,23#,281 12V 80A	08/2003 - 10/2009	1
27020E - BOLT(FOR ALTERNATOR)
91552-81085	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
91552-81085	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-62220	1TRFE..TRY230;2KDFTV,1TR#..KDY220,230,240,270,280,290,TRY220,231,281..CBU,IV3 12V 80A	08/2003 - 04/2009	1
27330-62220	1TRFE..TRY230;2KDFTV,1TR#..KDY220,230,240,270,280,290,TRY220,231,281..CBU,IV3 12V 80A	08/2003 - 04/2009	1
27330-30130	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	04/2009 - 12/2999	1
27330-30130	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	04/2009 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-23120	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27370-23120	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-31200	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27411-31200	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TRFE..TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
Common parts
27384-50030
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
90179-06158
91552-81040
91552-81060
94150-80600

(0408- )1KDFTV..KDY221..TB..WT..IV3 ; (0408-)1KDFTV..KDY231..T3..15T..IV3 ;

Click highlighted areas on diagram

12V 130A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-75311	1TR#..TRY220,23#,281 12V 80A	11/2009 - 12/2999	1
27060-75311	1TR#..TRY220,23#,281 12V 80A	11/2009 - 12/2999	1
27060-75311	1TR#..TRY220,23#,281 12V 80A	11/2009 - 12/2999	1
27060-75310	1TR#..TRY220,23#,281 12V 80A	08/2003 - 10/2009	1
27060-75310	1TR#..TRY220,23#,281 12V 80A	08/2003 - 10/2009	1
27060-75310	1TR#..TRY220,23#,281 12V 80A	08/2003 - 10/2009	1
27020E - BOLT(FOR ALTERNATOR)
91552-81085	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
91552-81085	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
91552-81085	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-62220	1TRFE..TRY230;2KDFTV,1TR#..KDY220,230,240,270,280,290,TRY220,231,281..CBU,IV3 12V 80A	08/2003 - 04/2009	1
27330-62220	1TRFE..TRY230;2KDFTV,1TR#..KDY220,230,240,270,280,290,TRY220,231,281..CBU,IV3 12V 80A	08/2003 - 04/2009	1
27330-62220	1TRFE..TRY230;2KDFTV,1TR#..KDY220,230,240,270,280,290,TRY220,231,281..CBU,IV3 12V 80A	08/2003 - 04/2009	1
27330-30130	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	04/2009 - 12/2999	1
27330-30130	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	04/2009 - 12/2999	1
27330-30130	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	04/2009 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-23120	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27370-23120	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
27370-23120	1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) 12V 80A	08/2003 - 12/2999	1
Common parts
90099-00197
90099-04539
90099-05284
94150-80600

TRY230-TLPDK (2003)

(0308- )1TR#

(0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3

(0308- )1TRFPE..TRY231..MTM ; (0308- )1TRFE..TRY230..ST..IV6 ; (0308- )1TR

(0408- )1KDFTV..KDY221..TB..WT..IV3 ; (0408-)1KDFTV..KDY231..T3..15T..IV3 ;
