Toyota Dyna/toyoace TRY230 TIMING GEAR COVER & REAR END PLATE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
TRY230-TLPDK (2003)
1106 - TIMING GEAR COVER & REAR END PLATE

TRY230-TLPDK (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999

Engine 1TRFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

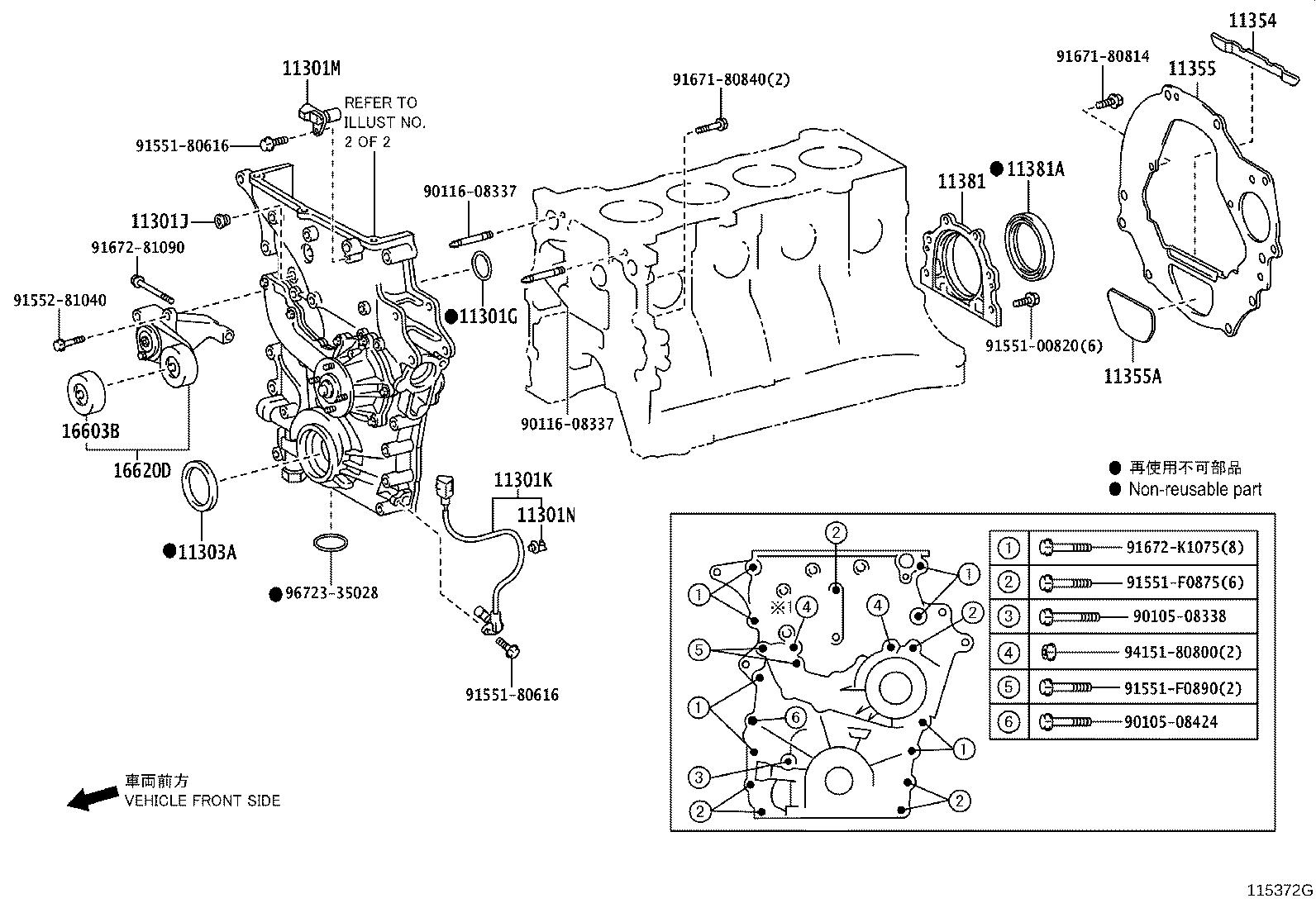

ILLUST NO. 1 OF 2(0308-0402)1TRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-25014	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-16022	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11301K - SENSOR, CRANK POSITION
90919-05059	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11301M - SENSOR, CAM POSITION
90919-05036	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11301N - CLAMP
90469-07018	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-48020	1TRFE..TRY220,230	08/2003 - 04/2007	1
90311-48029	1TR#..TRY220,23#,281	04/2007 - 10/2014	1
90311-48031	1TR#..TRY220,23#,281	11/2014 - 12/2999	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-75020	1TRFE..TRY220,230	08/2003 - 02/2004	1
11354-75030	1TR#..TRY220,23#,281	02/2004 - 12/2999	1
11355 - PLATE, REAR END
11355-75020	1TRFE..TRY220,230	08/2003 - 02/2004	1
11355-75021	1TR#..TRY220,23#,281	02/2004 - 12/2999	1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01967	1TRFE..TRY220,230	08/2003 - 02/2004	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-75010	1TR#..TRY220,23#,281	08/2003 - 12/2008	1
11381-75011	1TR#..TRY220,23#,281	12/2008 - 05/2014	1
11381-75012	1TR#..TRY220,23#,281	06/2014 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-88006	1TR#..TRY220,23#,281	11/2014 - 12/2999	1
90311-88005	1TR#..TRY220,23#,281	08/2003 - 10/2014	1
16603B - PULLEY SUB-ASSY, IDLER
16603-75020	1TR#..TRY220,23#,281	04/2012 - 04/2017	1
16603-75010	1TR#..TRY220,23#,281	08/2003 - 04/2012	1
16603-75021	1TR#..TRY220,23#,281	04/2017 - 12/2999	1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-75011	1TR#..TRY220,23#,281	09/2008 - 04/2012	1
16620-75010	1TR#..TRY220,23#,281	08/2003 - 09/2008	1
16620-75031	1TR#..TRY220,23#,281	04/2017 - 12/2999	1
16620-75030	1TR#..TRY220,23#,281	04/2012 - 03/2017	1
Common parts
90105-08338
90105-08424
90116-08337
91551-00820
91551-80616
91551-F0875
91551-F0890
91552-81040
91671-80814
91671-80840
91672-81090
91672-K1075
94151-80800
96723-35028

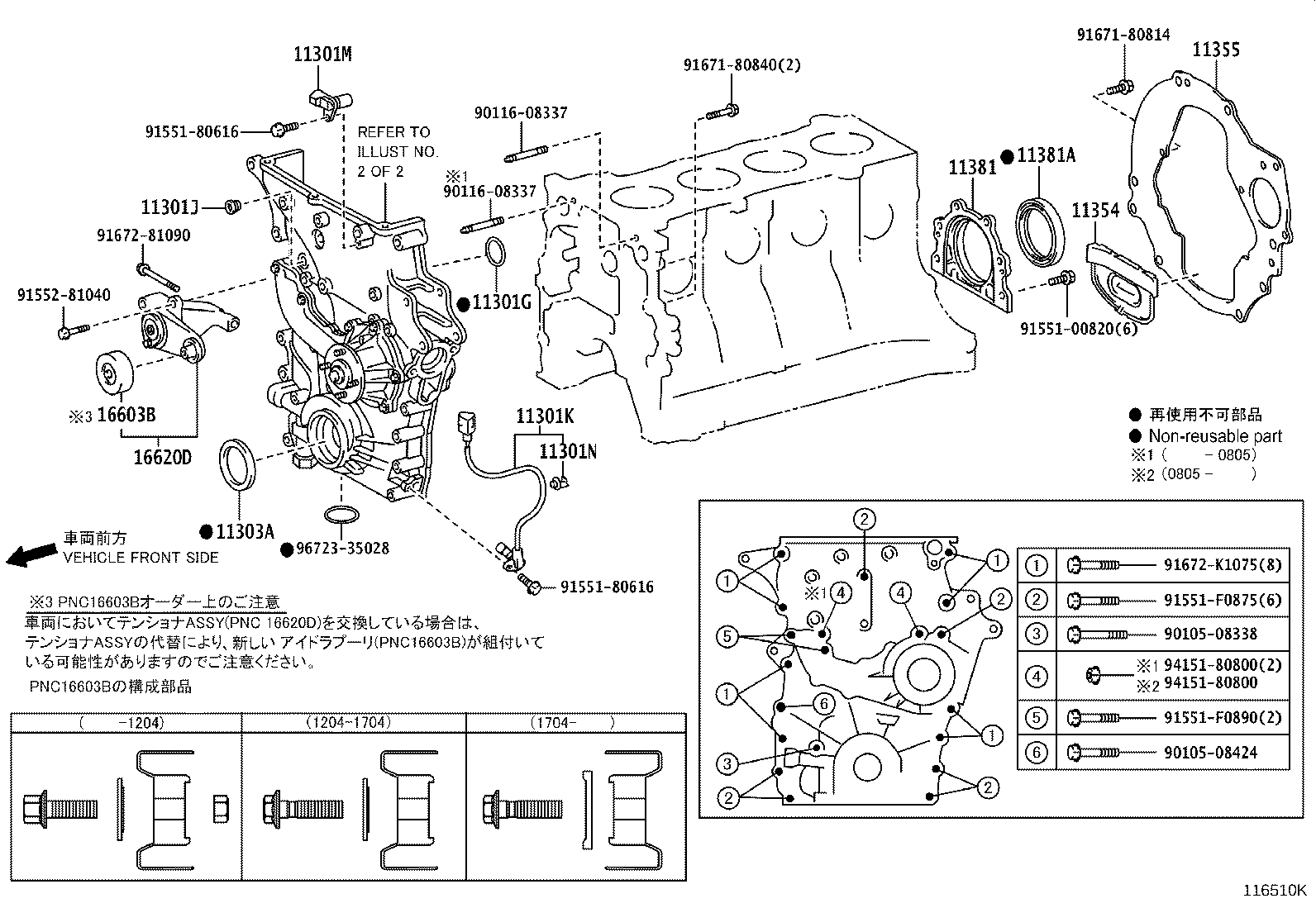

ILLUST NO. 1 OF 2(0402- )1TR#

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-25014	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-16022	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11301K - SENSOR, CRANK POSITION
90919-05059	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11301M - SENSOR, CAM POSITION
90919-05036	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11301N - CLAMP
90469-07018	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-48020	1TRFE..TRY220,230	08/2003 - 04/2007	1
90311-48029	1TR#..TRY220,23#,281	04/2007 - 10/2014	1
90311-48031	1TR#..TRY220,23#,281	11/2014 - 12/2999	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-75020	1TRFE..TRY220,230	08/2003 - 02/2004	1
11354-75030	1TR#..TRY220,23#,281	02/2004 - 12/2999	1
11355 - PLATE, REAR END
11355-75020	1TRFE..TRY220,230	08/2003 - 02/2004	1
11355-75021	1TR#..TRY220,23#,281	02/2004 - 12/2999	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-75010	1TR#..TRY220,23#,281	08/2003 - 12/2008	1
11381-75011	1TR#..TRY220,23#,281	12/2008 - 05/2014	1
11381-75012	1TR#..TRY220,23#,281	06/2014 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-88006	1TR#..TRY220,23#,281	11/2014 - 12/2999	1
90311-88005	1TR#..TRY220,23#,281	08/2003 - 10/2014	1
16603B - PULLEY SUB-ASSY, IDLER
16603-75020	1TR#..TRY220,23#,281	04/2012 - 04/2017	1
16603-75010	1TR#..TRY220,23#,281	08/2003 - 04/2012	1
16603-75021	1TR#..TRY220,23#,281	04/2017 - 12/2999	1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-75011	1TR#..TRY220,23#,281	09/2008 - 04/2012	1
16620-75010	1TR#..TRY220,23#,281	08/2003 - 09/2008	1
16620-75031	1TR#..TRY220,23#,281	04/2017 - 12/2999	1
16620-75030	1TR#..TRY220,23#,281	04/2012 - 03/2017	1
Common parts
90105-08338
90105-08424
90116-08337
91551-00820
91551-80616
91551-F0875
91551-F0890
91552-81040
91671-80814
91671-80840
91672-81090
91672-K1075
94151-80800
96723-35028

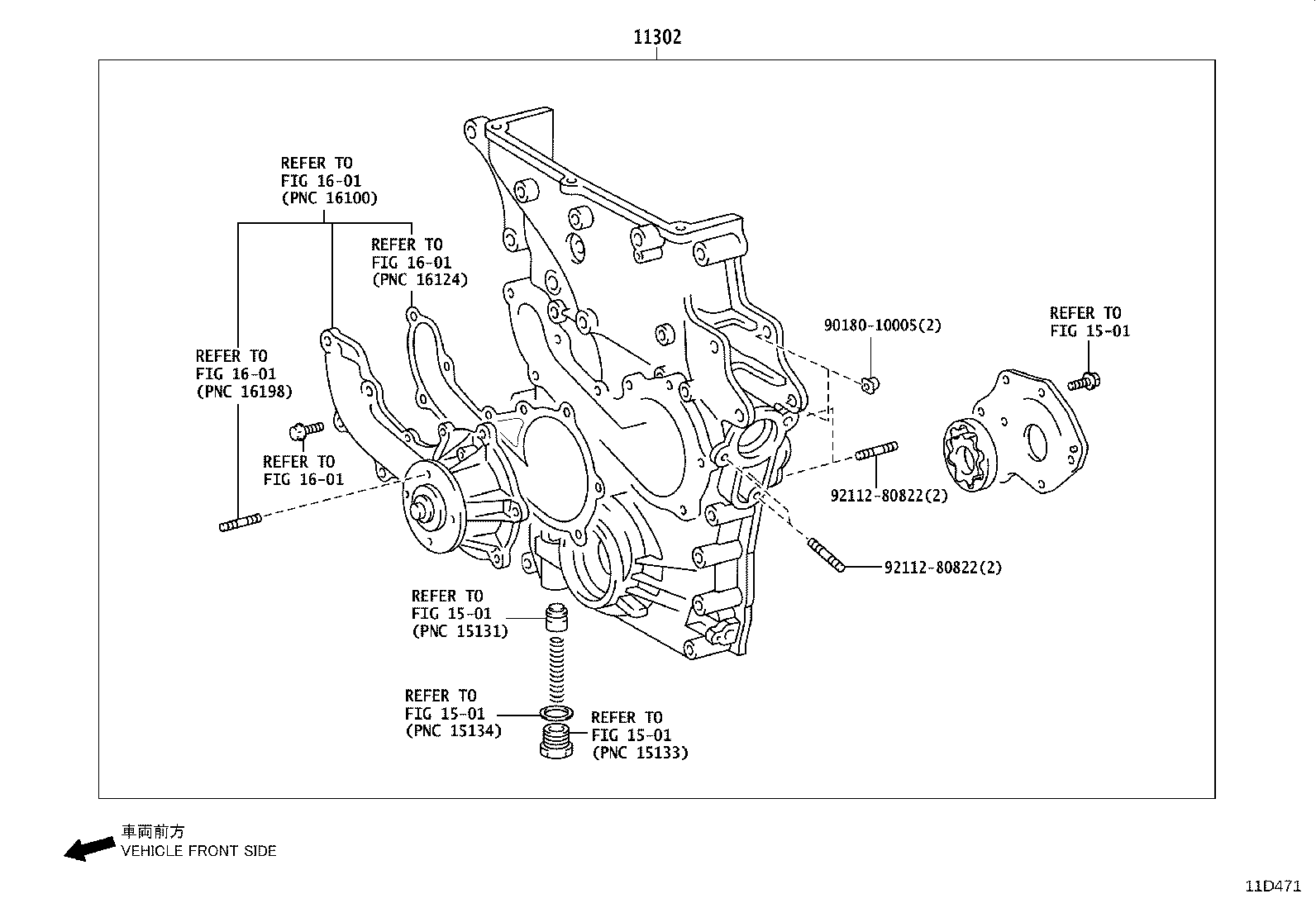

ILLUST NO. 2 OF 2(0308- )1TR#

Click highlighted areas on diagram

Part #	Description	Period	Qty
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-75060	1TRFE..TRY220,230	08/2003 - 03/2004	1
11310-75065	1TR#..TRY220,23#,281	10/2013 - 06/2014	1
11310-75064	1TR#..TRY220,23#,281	05/2009 - 10/2013	1
11310-75066	1TR#..TRY220,23#,281	06/2014 - 11/2014	1
11310-75061	1TR#..TRY220,23#,281	03/2004 - 05/2008	1
11310-75062	1TR#..TRY220,23#,281	05/2008 - 05/2009	1
11310-75100	1TR#..TRY220,23#,281	11/2014 - 12/2999	1
Common parts
90180-10005
92112-80822
Linked diagrams
1501
1601

TRY230-TLPDK (2003)

ILLUST NO. 1 OF 2(0308-0402)1TRFE

ILLUST NO. 1 OF 2(0402- )1TR#

ILLUST NO. 2 OF 2(0308- )1TR#
