TRY230-TLMGK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999
Engine 1TRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )TRY220,23#,281

Click highlighted areas on diagram

diagram 88320 88330A 88410 88431 88440B 88688K 9009904349 9009907065 9009907114 9010508403 9010510362 9011908B42 9151281035 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-37080

LY220,230,240,270,280,290,RZY220,23#,281

 1
88320-25130

TRY220,23#,281

 1
88320-25110

KDY22#,23#,24#,27#,28#,290

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88410 - CLUTCH ASSY, MAGNET
88410-35400

TRY220,23#,281

 1
88410-28200

KDY22#,23#,24#,27#,28#,290

 1
88410-37110

LY230,280,RZY220,23#,281..EFI,LPG

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-25290

TRY220,230

 1
88431-37190

TRY220,23#,281

 1
88345-37131

LY230,280,RZY220,23#,281..EFI,LPG

 1
88431-35250

KDY22#,23#,24#,27#,28#,290

 1
88440B - PULLEY ASSY, IDLE
88440-35080

LY230,280,RZY220,23#,281..EFI,LPG

 1
88440-25070

TRY220,23#,281

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-25440

KDY22#,23#,24#,27#,28#,290

 1
88688-25310

LY220,230,240,270,280,290,RZY220,23#,281

 1
88688-25430

TRY220,23#,281

 1
Common parts
90099-04349
90099-07065
90099-07114
90105-08403
90105-10362
90119-08B42
91512-81035
93319-15008

(0408- )KDY22#,23#,24#,27#,28#,290

Click highlighted areas on diagram

ﾉｿﾞｸ(ﾚｲﾄｳｼｬ)

diagram 1601 88320 88330A 88410 88431 88440D 8856935170 88688K 9009904349 9009907065 9009907114 9011908B42 9155281040 9155281040 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-37080

LY220,230,240,270,280,290,RZY220,23#,281

 1
88320-25130

TRY220,23#,281

 1
88320-25110

KDY22#,23#,24#,27#,28#,290

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88410 - CLUTCH ASSY, MAGNET
88410-35400

TRY220,23#,281

 1
88410-28200

KDY22#,23#,24#,27#,28#,290

 1
88410-37110

LY230,280,RZY220,23#,281..EFI,LPG

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-25290

TRY220,230

 1
88431-37190

TRY220,23#,281

 1
88345-37131

LY230,280,RZY220,23#,281..EFI,LPG

 1
88431-35250

KDY22#,23#,24#,27#,28#,290

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-35120

KDY22#,23#,24#,27#,28#,290

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-25440

KDY22#,23#,24#,27#,28#,290

 1
88688-25310

LY220,230,240,270,280,290,RZY220,23#,281

 1
88688-25430

TRY220,23#,281

 1
Common parts
88569-35170
90099-04349
90099-07065
90099-07114
90119-08B42
91552-81040
93319-15008
Linked diagrams
1601

(0408-0709)KDY220,230,240,270,280,290

Click highlighted areas on diagram

ﾚｲﾄｳｼｬ(ｼﾂﾅｲﾖｳ)

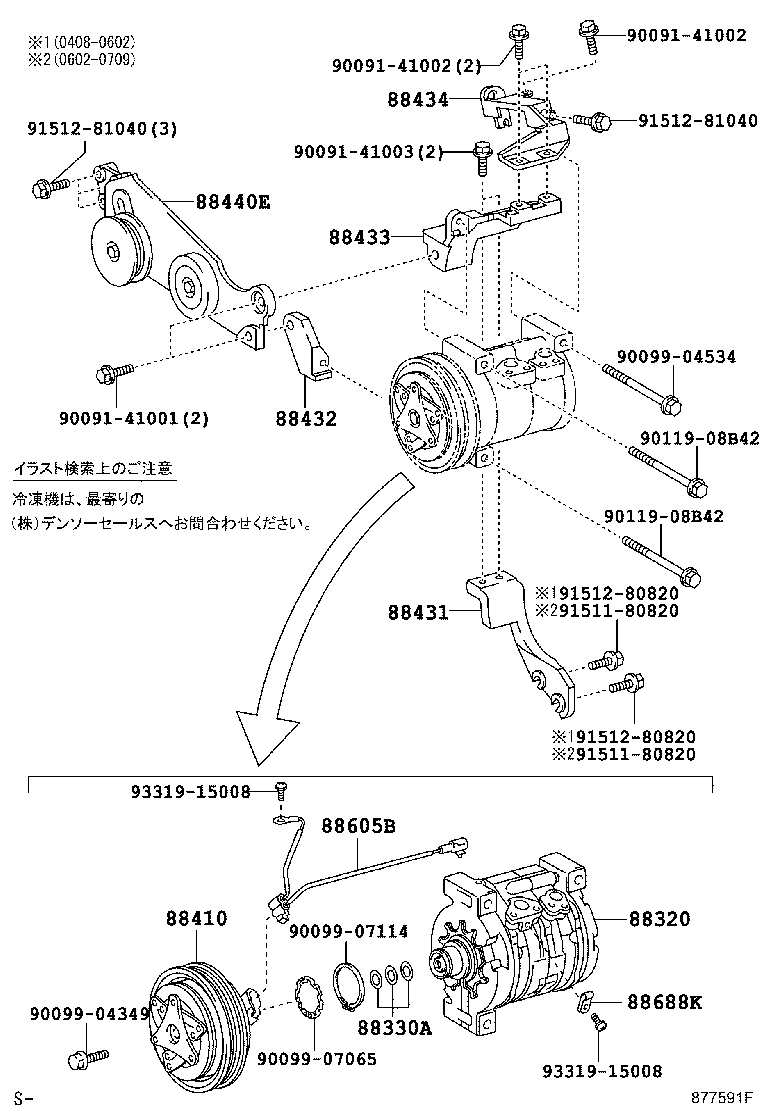

diagram 88320 88330A 88410 88431 88432 88433 88434 88440E 88605B 88688K 9009141001 9009141002 9009141002 9009141003 9009904349 9009904534 9009907065 9009907114 9011908B42 9011908B42 9151180820 9151180820 9151280820 9151280820 9151281040 9151281040 9331915008 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-37080

LY220,230,240,270,280,290,RZY220,23#,281

 1
88320-25130

TRY220,23#,281

 1
88320-25110

KDY22#,23#,24#,27#,28#,290

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88410 - CLUTCH ASSY, MAGNET
88410-35400

TRY220,23#,281

 1
88410-28200

KDY22#,23#,24#,27#,28#,290

 1
88410-37110

LY230,280,RZY220,23#,281..EFI,LPG

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-25290

TRY220,230

 1
88431-37190

TRY220,23#,281

 1
88345-37131

LY230,280,RZY220,23#,281..EFI,LPG

 1
88431-35250

KDY22#,23#,24#,27#,28#,290

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-25440

KDY22#,23#,24#,27#,28#,290

 1
88688-25310

LY220,230,240,270,280,290,RZY220,23#,281

 1
88688-25430

TRY220,23#,281

 1
Common parts
90091-41001
90091-41002
90091-41003
90099-04349
90099-04534
90099-07065
90099-07114
90119-08B42
91511-80820
91512-80820
91512-81040
93319-15008
