Toyota Dyna/toyoace TRY230 ENGINE OVERHAUL GASKET KIT

TRY230-TLMGK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999

Engine 1TRFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

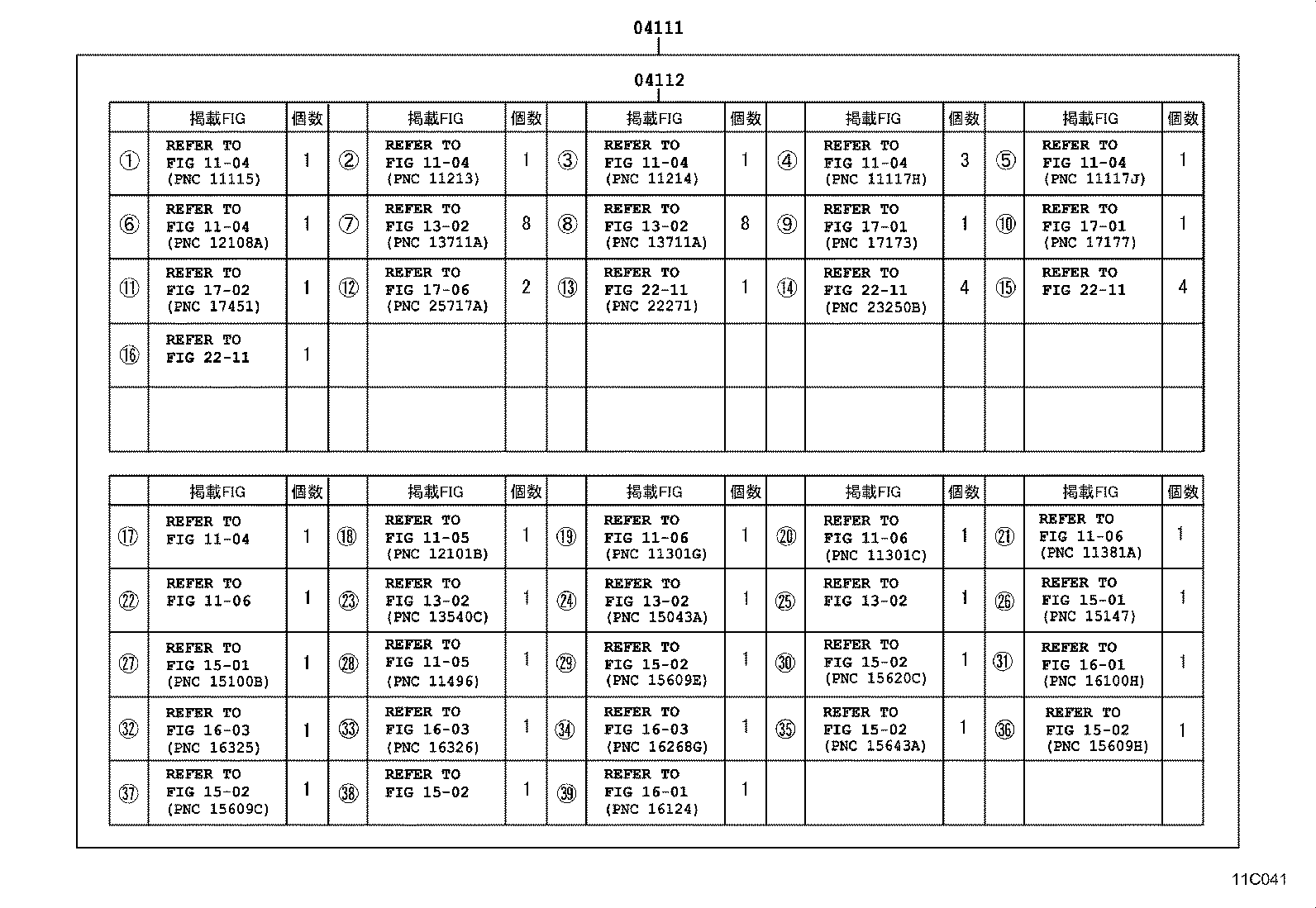

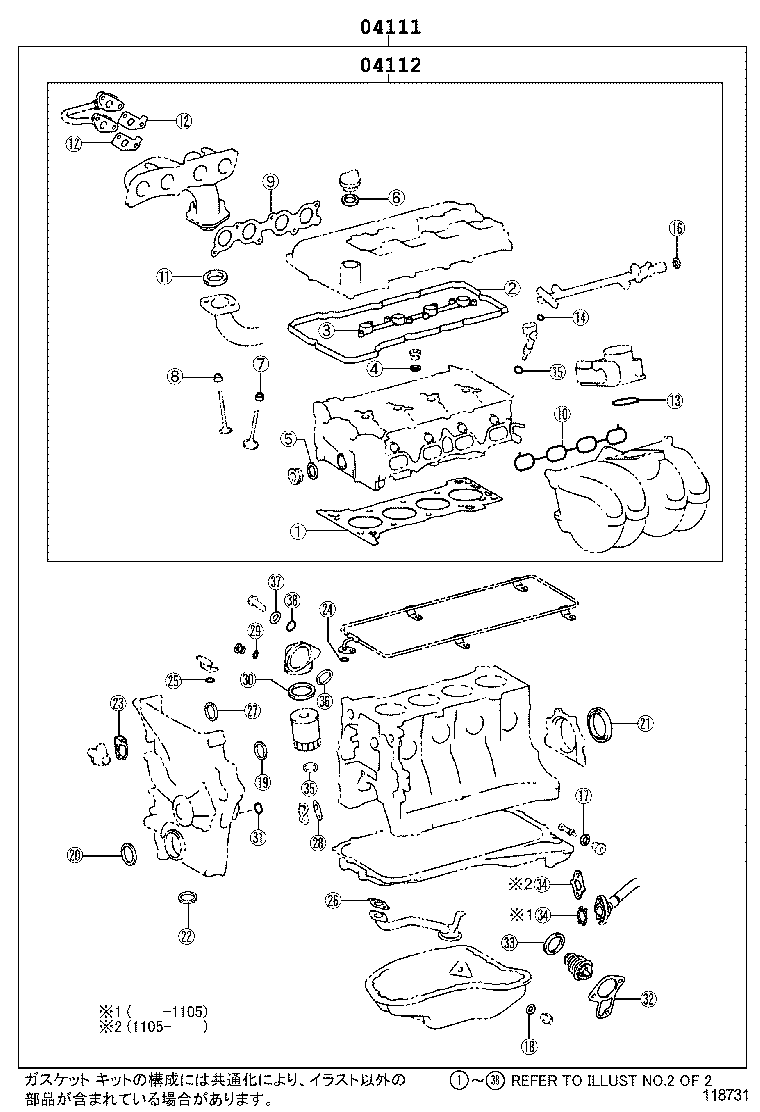

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75912	1TRFE..TRY220,230	04/2007 - 08/2007	1
04111-75911	1TRFE..TRY220,230	04/2006 - 04/2007	1
04111-75910	1TRFE..TRY220,230	08/2004 - 04/2006	1
04111-75913	1TRFE..TRY220,230	08/2007 - 10/2007	1
04111-75914	1TRFE..TRY220,230	10/2007 - 08/2008	1
04111-75261	1TRFE..TRY220,230	08/2003 - 03/2004	1
04111-75916	1TRFE..TRY220,230	11/2010 - 02/2011	1
04111-75917	1TRFE..TRY220,230	02/2011 - 05/2011	1
04111-75680	1TRFE..TRY220,230	03/2004 - 08/2004	1
04111-75915	1TRFE..TRY220,230	08/2008 - 11/2010	1
04111-75918	1TRFE..TRY220,230	05/2011 - 07/2011	1
04111-7A061	1TRFE..TRY220,230	12/2011 - 06/2014	1
04111-75A61	1TRFE..TRY220,230	08/2014 - 11/2014	1
04111-7A060	1TRFE..TRY220,230	07/2011 - 12/2011	1
04111-75A60	1TRFE..TRY220,230	06/2014 - 08/2014	1
04111-75B70	1TRFE..TRY220,230	11/2014 - 01/2017	1
04111-75B71	1TRFE..TRY220,230	01/2017 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75631	1TRFE..TRY220,230	04/2006 - 08/2007	1
04112-75250	1TRFE..TRY220,230	08/2003 - 03/2004	1
04112-75632	1TRFE..TRY220,230	08/2007 - 10/2007	1
04112-75633	1TRFE..TRY220,230	10/2007 - 08/2008	1
04112-75630	1TRFE..TRY220,230	03/2004 - 04/2006	1
04112-75635	1TRFE..TRY220,230	02/2011 - 05/2011	1
04112-75634	1TRFE..TRY220,230	08/2008 - 02/2011	1
04112-75636	1TRFE..TRY220,230	05/2011 - 12/2999	1

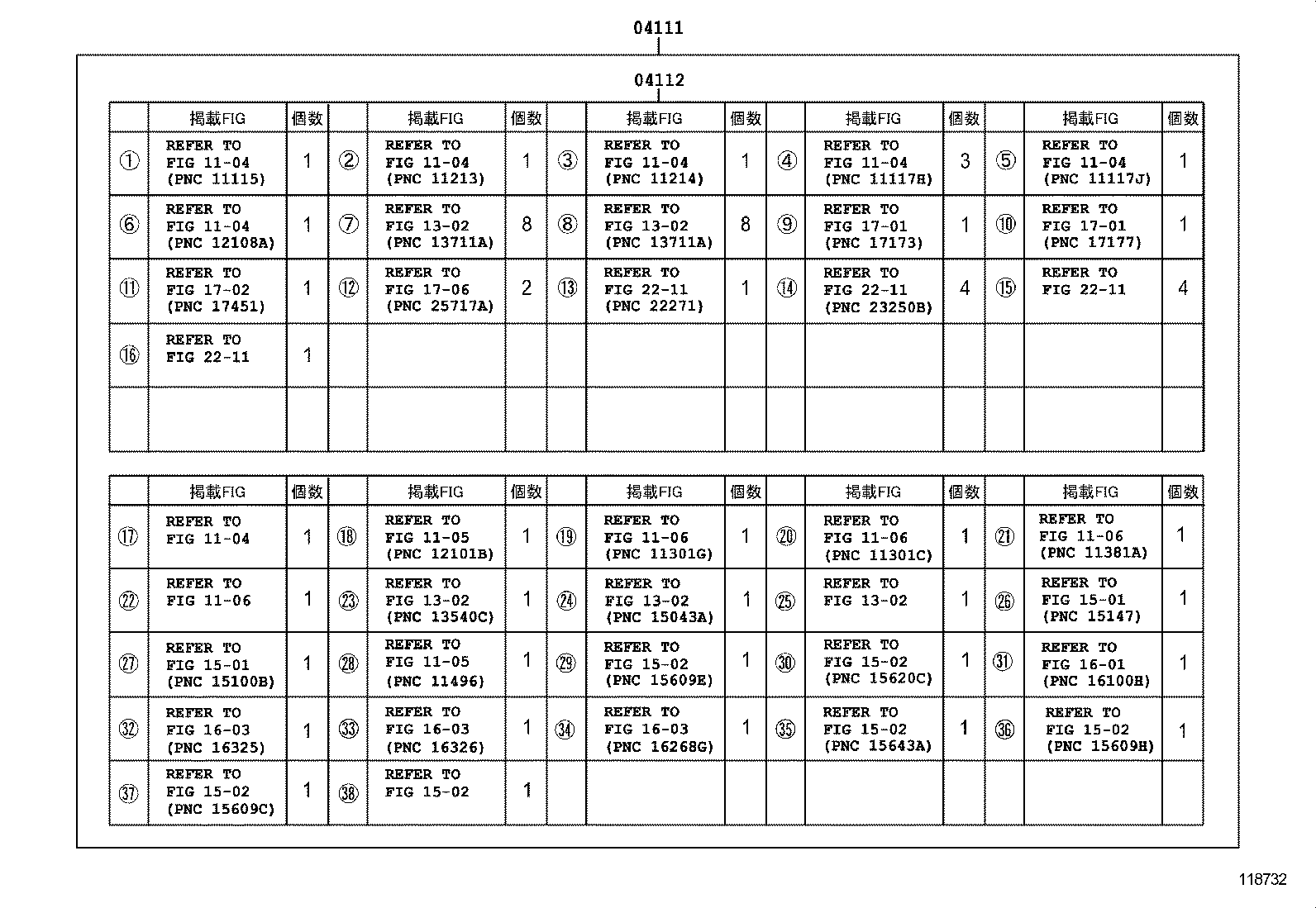

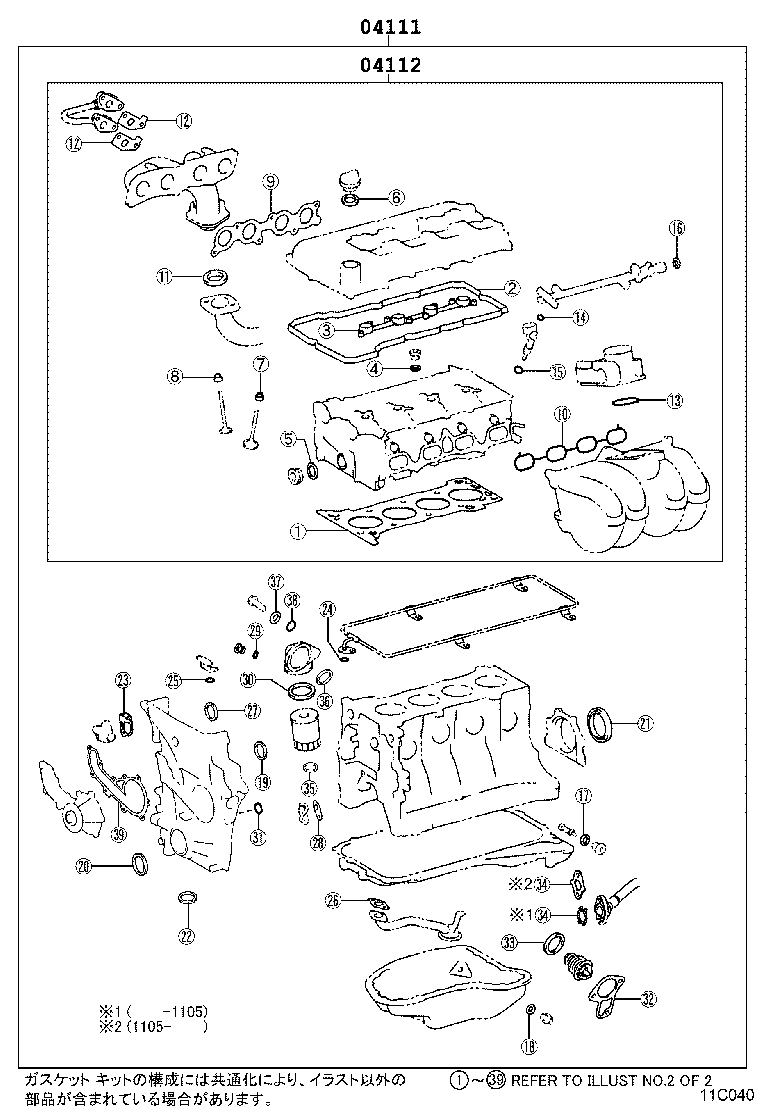

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75912	1TRFE..TRY220,230	04/2007 - 08/2007	1
04111-75911	1TRFE..TRY220,230	04/2006 - 04/2007	1
04111-75910	1TRFE..TRY220,230	08/2004 - 04/2006	1
04111-75913	1TRFE..TRY220,230	08/2007 - 10/2007	1
04111-75914	1TRFE..TRY220,230	10/2007 - 08/2008	1
04111-75261	1TRFE..TRY220,230	08/2003 - 03/2004	1
04111-75916	1TRFE..TRY220,230	11/2010 - 02/2011	1
04111-75917	1TRFE..TRY220,230	02/2011 - 05/2011	1
04111-75680	1TRFE..TRY220,230	03/2004 - 08/2004	1
04111-75915	1TRFE..TRY220,230	08/2008 - 11/2010	1
04111-75918	1TRFE..TRY220,230	05/2011 - 07/2011	1
04111-7A061	1TRFE..TRY220,230	12/2011 - 06/2014	1
04111-75A61	1TRFE..TRY220,230	08/2014 - 11/2014	1
04111-7A060	1TRFE..TRY220,230	07/2011 - 12/2011	1
04111-75A60	1TRFE..TRY220,230	06/2014 - 08/2014	1
04111-75B70	1TRFE..TRY220,230	11/2014 - 01/2017	1
04111-75B71	1TRFE..TRY220,230	01/2017 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75631	1TRFE..TRY220,230	04/2006 - 08/2007	1
04112-75250	1TRFE..TRY220,230	08/2003 - 03/2004	1
04112-75632	1TRFE..TRY220,230	08/2007 - 10/2007	1
04112-75633	1TRFE..TRY220,230	10/2007 - 08/2008	1
04112-75630	1TRFE..TRY220,230	03/2004 - 04/2006	1
04112-75635	1TRFE..TRY220,230	02/2011 - 05/2011	1
04112-75634	1TRFE..TRY220,230	08/2008 - 02/2011	1
04112-75636	1TRFE..TRY220,230	05/2011 - 12/2999	1
Linked diagrams
1104
1105
1106
1302
1501
1502
1601
1603
1701
1702
1706
2211

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75912	1TRFE..TRY220,230	04/2007 - 08/2007	1
04111-75911	1TRFE..TRY220,230	04/2006 - 04/2007	1
04111-75910	1TRFE..TRY220,230	08/2004 - 04/2006	1
04111-75913	1TRFE..TRY220,230	08/2007 - 10/2007	1
04111-75914	1TRFE..TRY220,230	10/2007 - 08/2008	1
04111-75261	1TRFE..TRY220,230	08/2003 - 03/2004	1
04111-75916	1TRFE..TRY220,230	11/2010 - 02/2011	1
04111-75917	1TRFE..TRY220,230	02/2011 - 05/2011	1
04111-75680	1TRFE..TRY220,230	03/2004 - 08/2004	1
04111-75915	1TRFE..TRY220,230	08/2008 - 11/2010	1
04111-75918	1TRFE..TRY220,230	05/2011 - 07/2011	1
04111-7A061	1TRFE..TRY220,230	12/2011 - 06/2014	1
04111-75A61	1TRFE..TRY220,230	08/2014 - 11/2014	1
04111-7A060	1TRFE..TRY220,230	07/2011 - 12/2011	1
04111-75A60	1TRFE..TRY220,230	06/2014 - 08/2014	1
04111-75B70	1TRFE..TRY220,230	11/2014 - 01/2017	1
04111-75B71	1TRFE..TRY220,230	01/2017 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75631	1TRFE..TRY220,230	04/2006 - 08/2007	1
04112-75250	1TRFE..TRY220,230	08/2003 - 03/2004	1
04112-75632	1TRFE..TRY220,230	08/2007 - 10/2007	1
04112-75633	1TRFE..TRY220,230	10/2007 - 08/2008	1
04112-75630	1TRFE..TRY220,230	03/2004 - 04/2006	1
04112-75635	1TRFE..TRY220,230	02/2011 - 05/2011	1
04112-75634	1TRFE..TRY220,230	08/2008 - 02/2011	1
04112-75636	1TRFE..TRY220,230	05/2011 - 12/2999	1

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-75912	1TRFE..TRY220,230	04/2007 - 08/2007	1
04111-75911	1TRFE..TRY220,230	04/2006 - 04/2007	1
04111-75910	1TRFE..TRY220,230	08/2004 - 04/2006	1
04111-75913	1TRFE..TRY220,230	08/2007 - 10/2007	1
04111-75914	1TRFE..TRY220,230	10/2007 - 08/2008	1
04111-75261	1TRFE..TRY220,230	08/2003 - 03/2004	1
04111-75916	1TRFE..TRY220,230	11/2010 - 02/2011	1
04111-75917	1TRFE..TRY220,230	02/2011 - 05/2011	1
04111-75680	1TRFE..TRY220,230	03/2004 - 08/2004	1
04111-75915	1TRFE..TRY220,230	08/2008 - 11/2010	1
04111-75918	1TRFE..TRY220,230	05/2011 - 07/2011	1
04111-7A061	1TRFE..TRY220,230	12/2011 - 06/2014	1
04111-75A61	1TRFE..TRY220,230	08/2014 - 11/2014	1
04111-7A060	1TRFE..TRY220,230	07/2011 - 12/2011	1
04111-75A60	1TRFE..TRY220,230	06/2014 - 08/2014	1
04111-75B70	1TRFE..TRY220,230	11/2014 - 01/2017	1
04111-75B71	1TRFE..TRY220,230	01/2017 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-75631	1TRFE..TRY220,230	04/2006 - 08/2007	1
04112-75250	1TRFE..TRY220,230	08/2003 - 03/2004	1
04112-75632	1TRFE..TRY220,230	08/2007 - 10/2007	1
04112-75633	1TRFE..TRY220,230	10/2007 - 08/2008	1
04112-75630	1TRFE..TRY220,230	03/2004 - 04/2006	1
04112-75635	1TRFE..TRY220,230	02/2011 - 05/2011	1
04112-75634	1TRFE..TRY220,230	08/2008 - 02/2011	1
04112-75636	1TRFE..TRY220,230	05/2011 - 12/2999	1
Linked diagrams
1104
1105
1106
1302
1501
1502
1601
1603
1701
1702
1706
2211
