TRY230-TLMGK (2003)
Toyota Dyna/Toyoace
(0107-1004)T2..TS..CBU
ｽﾁ-ﾙﾃﾞｯｷ

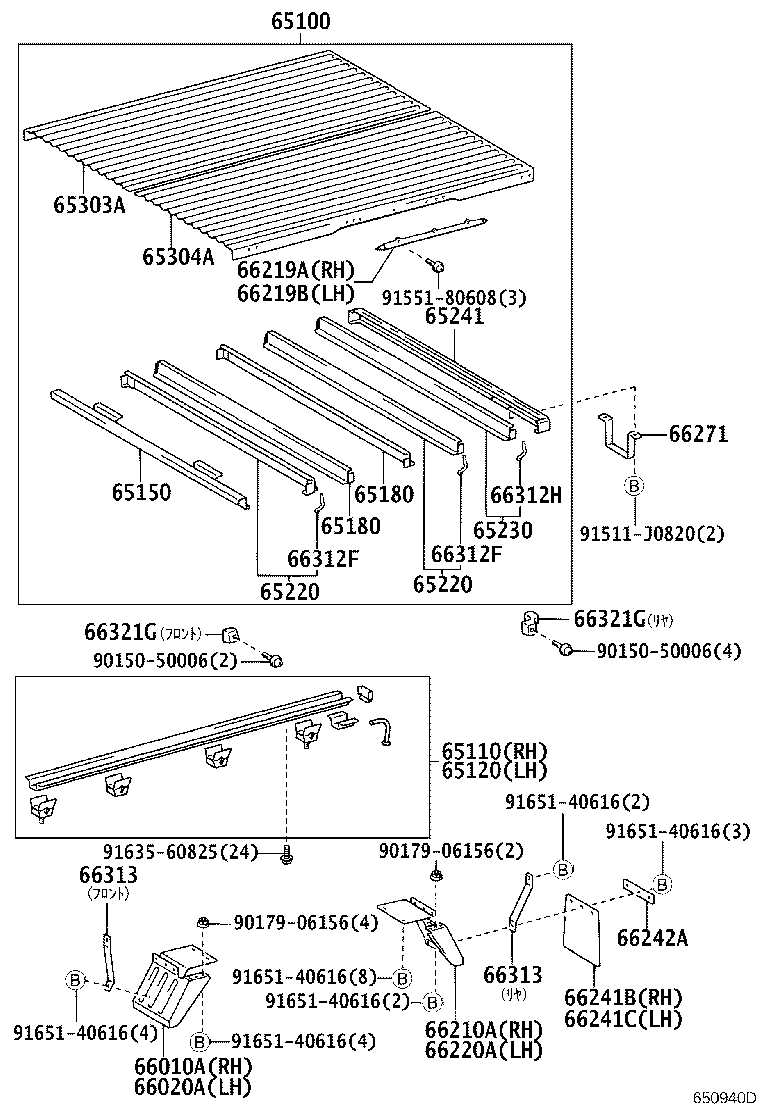

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65023 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH | ||||
| 65023-25030 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU |
1 | ||
| 65024 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH | ||||
| 65024-25030 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-25D20 |
TRY230..TS..15T..CBU *** |
1 | ||
| 65100-2E360 |
KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU *** |
1 | ||
| 65100-2E460 |
LY230,RZY230,TRY230..TS..WT..CBU *** |
1 | ||
| 65100-25E20 |
TRY230..TS..15T..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65100-25D70 |
KDY231,281,TRY230..1T..CBU *** |
1 | ||
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65150-25400 |
LY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU |
1 | ||
| 65150-25440 |
KDY22#,23#,270,280..T2..TS..MTM..CBU |
1 | ||
| 65150-26010 |
KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-25350 |
LY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU |
1 | ||
| 65160-25300 |
KDY22#,23#,270,280..T2..TS..MTM..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65170-25220 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 65180-25180 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65170-25220 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 65180-25180 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65230-25100 |
KDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-25110 |
LY220,230,RZY220,230,TRY220,230..TS..15T..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65241-25060 |
KDY221,TRY220..T2..TS..ST..CBU;KDY231,TRY230..T2..TS..WT..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65241-95A12 |
TRY230..TS..WT..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65240-25050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 65317 - PANEL, FLOOR SIDE, RH | ||||
| 65317-25010 |
KDY231,281,TRY230..1T..CBU |
1 | ||
| 65317-25050 |
KDY231,281,TRY230..T2..TS..CBU |
1 | ||
| 65318 - PANEL, FLOOR SIDE, LH | ||||
| 65318-25010 |
KDY231,281,TRY230..1T..CBU |
1 | ||
| 65318-95040 |
KDY231,281,TRY230..(T2,T3)..TS..CBU |
1 | ||
| 65325B - PLATE, FLOOR BOARD, FRONT | ||||
| 65325-25020 |
KDY220,230,270,280..T2..TS..MTM..CBU |
2 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371-25170 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.2 |
1 | ||
| 65371-25160 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.1 |
1 | ||
| 65039-25030 |
RZY230,TRY230..T2..TS..CBU NO.1 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371-25170 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.2 |
1 | ||
| 65371-25160 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.1 |
1 | ||
| 65039-25030 |
RZY230,TRY230..T2..TS..CBU NO.1 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371-25170 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.2 |
1 | ||
| 65371-25160 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.1 |
1 | ||
| 65039-25030 |
RZY230,TRY230..T2..TS..CBU NO.1 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371-25170 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.2 |
1 | ||
| 65371-25160 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.1 |
1 | ||
| 65039-25030 |
RZY230,TRY230..T2..TS..CBU NO.1 |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-25140 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66010-25080 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66016 - GUSSET SUB-ASSY, GATE HINGE, RH | ||||
| 66015-25010 |
LY220,230..TS..15T..CBU 右側 |
1 | ||
| 66015-25010 |
KDY221,231,TRY220,230..T2..TS..15T..CBU 右側 |
1 | ||
| 66015-25010 |
KDY220,230..T2..TS..WT..CBU 右側 |
1 | ||
| 66016-25010 |
KDY220,230..T2..TS..WT..CBU 左側 |
1 | ||
| 66016-25010 |
LY220,230..TS..15T..CBU 左側 |
1 | ||
| 66016-25010 |
KDY221,231,TRY220,230..T2..TS..15T..CBU 左側 |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-25130 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66020-25070 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-95018 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66010-95A04 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-95020 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66020-95A04 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 76625-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 76625-25011 |
KDY221,231,281,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 76625-25021 |
KDY221,231,TRY220,230..(T2,TW2)..TS..WT..CBU |
1 | ||
| 76625-25020 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-95A00 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TS..WT..CBU 右側 |
1 | ||
| 66242-95011 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TS..WT..CBU 左側 |
1 | ||
| 66249A - COVER, REAR BODY FLOOR SIDE, LH | ||||
| 66249-25070 |
LY220,230..TS..15T..CBU |
1 | ||
| 66249-25120 |
KDY220,230,270,280..T2..TS..MTM..CBU |
1 | ||
| 66249-25070 |
TRY220,230..T2..TS..WT..CBU |
1 | ||
| 66249A - COVER, REAR BODY FLOOR SIDE, LH | ||||
| 66249-25070 |
LY220,230..TS..15T..CBU |
1 | ||
| 66249-25120 |
KDY220,230,270,280..T2..TS..MTM..CBU |
1 | ||
| 66249-25070 |
TRY220,230..T2..TS..WT..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-25040 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 66259-25030 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-25040 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 66259-25030 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-25040 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 66259-25030 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-95A01 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95014 |
KDY270..TS..125T..CBU;KDY220,230,280..T2..TS..CBU |
2 | ||
| 66311-95014 |
KDY221,271..T3..TS..MTM..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66311-95011 |
KDY271..TS..125T..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95011 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95014 |
KDY220,230,270,280..T2..TS..CBU |
4 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95011 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95014 |
KDY220,230,270,280..T2..TS..CBU |
4 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66311-95011 |
KDY221..T2..TS..WT..CBU;KDY221,281..T2..ATM..CBU;KDY231,TRY220,230..T2..TS..CBU |
2 | ||
| 66311-95014 |
KDY221..T2..TS..WT..CBU;KDY221,281..T2..ATM..CBU;KDY231,TRY220,230..T2..TS..CBU |
2 | ||
| 66312H - HOOK, ROPE | ||||
| 66312-95013 |
KDY23#,28#,LY230,280,RZY230,TRY230..T2..TS..CBU 右側 |
1 | ||
| 66313-95013 |
KDY23#,28#,LY230,280,RZY230,TRY230..T2..TS..CBU 左側 |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25070 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾘﾔ |
2 | ||
| 66235-95A03 |
KDY22#,23#,270,280..T2..TS..MTM..CBU ﾌﾛﾝﾄ |
2 | ||
| 66235-25050 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25070 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾘﾔ |
2 | ||
| 66235-95A03 |
KDY22#,23#,270,280..T2..TS..MTM..CBU ﾌﾛﾝﾄ |
2 | ||
| 66235-25050 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313A - HOOK, ROPE, NO.3 | ||||
| 66311-95707 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 右側 |
1 | ||
| 66312-95012 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 左側 |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66311-95707 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..T2..TS..15T..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66331-95010 |
TRY230..TS..15T..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC**,ﾌﾛﾝﾄ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66331-95010 |
TRY230..TS..15T..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC**,ﾌﾛﾝﾄ |
2 | ||
| Common parts | ||||
| 90119-08657 | ||||
| 90150-50006 | ||||
| 90179-06156 | ||||
| 90467-0510122 | ||||
| 90467-06091 | ||||
| 91511-J0820 | ||||
| 91515-40825 | ||||
| 91621-J0612 | ||||
| 91631-40614 | ||||
| 91651-40616 | ||||
| 93260-18016 | ||||
(1004- )KDY231,281,TRY230..1T..CBU
ｽﾁｰﾙﾃﾞｯｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-2E360 |
KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU *** |
1 | ||
| 65100-2E460 |
LY230,RZY230,TRY230..TS..WT..CBU *** |
1 | ||
| 65100-25D20 |
TRY230..TS..15T..CBU *** |
1 | ||
| 65100-25E20 |
TRY230..TS..15T..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65100-25D70 |
KDY231,281,TRY230..1T..CBU *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-25210 |
KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU |
1 | ||
| 65110-25211 |
KDY231,281,TRY230..1T..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-25150 |
KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU |
1 | ||
| 65120-25151 |
KDY231,281,TRY230..1T..CBU |
1 | ||
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65150-25400 |
LY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU |
1 | ||
| 65150-25440 |
KDY22#,23#,270,280..T2..TS..MTM..CBU |
1 | ||
| 65150-26010 |
KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65170-25220 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 65180-25180 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65170-25220 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 65180-25180 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65220-95A05 |
KDY221..T3..TS..ATM..CBU;KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU;KDY220,270,LY220,270,RZY220,TRY220..T3..TS..CBU |
2 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65220-95A05 |
KDY221..T3..TS..ATM..CBU;KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU;KDY220,270,LY220,270,RZY220,TRY220..T3..TS..CBU |
2 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65230-25100 |
KDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65241-25060 |
KDY221,TRY220..T2..TS..ST..CBU;KDY231,TRY230..T2..TS..WT..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65241-95A12 |
TRY230..TS..WT..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65240-25050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-25600 |
KDY231,281,TRY230..T2..TS..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-25480 |
KDY231,281,TRY230..(T2,T3)..TS..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-25140 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66010-25080 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-25130 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66020-25070 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-95018 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66010-95A04 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25020 |
TRY220..T3..CBU;TRY220..TS..WT..CBU;KDY221..T3..TS..ATM..CBU;KDY221,271..(T2,T3)..TS..MTM..CBU;KDY231,281,TRY230..(T2,T3,TW3)..TS..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66229-25010 |
TRY220..T3..CBU;TRY220..TS..WT..CBU;KDY221..T3..TS..ATM..CBU;KDY221,271..(T2,T3)..TS..MTM..CBU;KDY231,281,TRY230..(T2,T3,TW3)..TS..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-95020 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66020-95A04 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 76625-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 76625-25011 |
KDY221,231,281,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 76625-25021 |
KDY221,231,TRY220,230..(T2,TW2)..TS..WT..CBU |
1 | ||
| 76625-25020 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-95A00 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TS..WT..CBU 右側 |
1 | ||
| 66242-95011 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TS..WT..CBU 左側 |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-95A01 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-95011 |
KDY221..T3..CBU;KDY231,TRY230..1T..CBU |
4 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-95011 |
KDY221..T3..CBU;KDY231,TRY230..1T..CBU |
4 | ||
| 66312H - HOOK, ROPE | ||||
| 66312-95013 |
KDY23#,28#,LY230,280,RZY230,TRY230..T2..TS..CBU 右側 |
1 | ||
| 66313-95013 |
KDY23#,28#,LY230,280,RZY230,TRY230..T2..TS..CBU 左側 |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25070 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾘﾔ |
2 | ||
| 66235-95A03 |
KDY22#,23#,270,280..T2..TS..MTM..CBU ﾌﾛﾝﾄ |
2 | ||
| 66235-25050 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25070 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾘﾔ |
2 | ||
| 66235-95A03 |
KDY22#,23#,270,280..T2..TS..MTM..CBU ﾌﾛﾝﾄ |
2 | ||
| 66235-25050 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66331-95010 |
TRY230..TS..15T..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC**,ﾌﾛﾝﾄ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66331-95010 |
TRY230..TS..15T..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC**,ﾌﾛﾝﾄ |
2 | ||
| Common parts | ||||
| 90150-50006 | ||||
| 90179-06156 | ||||
| 91511-J0820 | ||||
| 91551-80608 | ||||
| 91635-60825 | ||||
| 91651-40616 | ||||
(1004- )T2..TS..CBU
ｽﾁｰﾙﾃﾞｯｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65023 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH | ||||
| 65023-25030 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU |
1 | ||
| 65024 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH | ||||
| 65024-25030 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-25D20 |
TRY230..TS..15T..CBU *** |
1 | ||
| 65100-2E360 |
KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU *** |
1 | ||
| 65100-2E460 |
LY230,RZY230,TRY230..TS..WT..CBU *** |
1 | ||
| 65100-25E20 |
TRY230..TS..15T..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65100-25D70 |
KDY231,281,TRY230..1T..CBU *** |
1 | ||
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65150-25400 |
LY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU |
1 | ||
| 65150-25440 |
KDY22#,23#,270,280..T2..TS..MTM..CBU |
1 | ||
| 65150-26010 |
KDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-25350 |
LY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU |
1 | ||
| 65160-25300 |
KDY22#,23#,270,280..T2..TS..MTM..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65170-25220 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 65180-25180 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65170-25220 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 65180-25180 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65230-25100 |
KDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-25110 |
LY220,230,RZY220,230,TRY220,230..TS..15T..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65241-25060 |
KDY221,TRY220..T2..TS..ST..CBU;KDY231,TRY230..T2..TS..WT..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65241-95A12 |
TRY230..TS..WT..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65240-25050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-25600 |
KDY231,281,TRY230..T2..TS..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-25480 |
KDY231,281,TRY230..(T2,T3)..TS..CBU |
1 | ||
| 65325B - PLATE, FLOOR BOARD, FRONT | ||||
| 65325-25020 |
KDY220,230,270,280..T2..TS..MTM..CBU |
2 | ||
| 65337 - PLATE, FLOOR SIDE FRAME, RH | ||||
| 65337-25020 |
TRY220..TS..WT..CBU;KDY221..T2..TS..MTM..CBU;KDY231,281,TRY230..T2..TS..CBU |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371-25170 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.2 |
1 | ||
| 65371-25160 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.1 |
1 | ||
| 65039-25030 |
RZY230,TRY230..T2..TS..CBU NO.1 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371-25170 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.2 |
1 | ||
| 65371-25160 |
KDY22#,23#,270,280..T2..TS..MTM..CBU NO.1 |
1 | ||
| 65039-25030 |
RZY230,TRY230..T2..TS..CBU NO.1 |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-25140 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66010-25080 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66016 - GUSSET SUB-ASSY, GATE HINGE, RH | ||||
| 66015-25010 |
LY220,230..TS..15T..CBU 右側 |
1 | ||
| 66015-25010 |
KDY221,231,TRY220,230..T2..TS..15T..CBU 右側 |
1 | ||
| 66015-25010 |
KDY220,230..T2..TS..WT..CBU 右側 |
1 | ||
| 66016-25010 |
KDY220,230..T2..TS..WT..CBU 左側 |
1 | ||
| 66016-25010 |
LY220,230..TS..15T..CBU 左側 |
1 | ||
| 66016-25010 |
KDY221,231,TRY220,230..T2..TS..15T..CBU 左側 |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-25130 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66020-25070 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-95018 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66010-95A04 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25020 |
TRY220..T3..CBU;TRY220..TS..WT..CBU;KDY221..T3..TS..ATM..CBU;KDY221,271..(T2,T3)..TS..MTM..CBU;KDY231,281,TRY230..(T2,T3,TW3)..TS..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66229-25010 |
TRY220..T3..CBU;TRY220..TS..WT..CBU;KDY221..T3..TS..ATM..CBU;KDY221,271..(T2,T3)..TS..MTM..CBU;KDY231,281,TRY230..(T2,T3,TW3)..TS..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-95020 |
KDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU |
1 | ||
| 66020-95A04 |
KDY22#,23#..T2..TS..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 76625-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 76625-25011 |
KDY221,231,281,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 76625-25021 |
KDY221,231,TRY220,230..(T2,TW2)..TS..WT..CBU |
1 | ||
| 76625-25020 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-95A00 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TS..WT..CBU 右側 |
1 | ||
| 66242-95011 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TS..WT..CBU 左側 |
1 | ||
| 66249A - COVER, REAR BODY FLOOR SIDE, LH | ||||
| 66249-25070 |
LY220,230..TS..15T..CBU |
1 | ||
| 66249-25120 |
KDY220,230,270,280..T2..TS..MTM..CBU |
1 | ||
| 66249-25070 |
TRY220,230..T2..TS..WT..CBU |
1 | ||
| 66249A - COVER, REAR BODY FLOOR SIDE, LH | ||||
| 66249-25070 |
LY220,230..TS..15T..CBU |
1 | ||
| 66249-25120 |
KDY220,230,270,280..T2..TS..MTM..CBU |
1 | ||
| 66249-25070 |
TRY220,230..T2..TS..WT..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-25040 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 66259-25030 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-25040 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 66259-25030 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-25040 |
LY230,RZY230,TRY230..TS..15T..CBU NO.2 |
1 | ||
| 66259-25030 |
LY230,RZY230,TRY230..TS..15T..CBU NO.1 |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-95A01 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95014 |
KDY270..TS..125T..CBU;KDY220,230,280..T2..TS..CBU |
2 | ||
| 66311-95014 |
KDY221,271..T3..TS..MTM..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66311-95011 |
KDY271..TS..125T..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95011 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95014 |
KDY220,230,270,280..T2..TS..CBU |
4 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95011 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95014 |
KDY220,230,270,280..T2..TS..CBU |
4 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66311-95011 |
KDY221..T2..TS..WT..CBU;KDY221,281..T2..ATM..CBU;KDY231,TRY220,230..T2..TS..CBU |
2 | ||
| 66311-95014 |
KDY221..T2..TS..WT..CBU;KDY221,281..T2..ATM..CBU;KDY231,TRY220,230..T2..TS..CBU |
2 | ||
| 66312H - HOOK, ROPE | ||||
| 66312-95013 |
KDY23#,28#,LY230,280,RZY230,TRY230..T2..TS..CBU 右側 |
1 | ||
| 66313-95013 |
KDY23#,28#,LY230,280,RZY230,TRY230..T2..TS..CBU 左側 |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25070 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾘﾔ |
2 | ||
| 66235-95A03 |
KDY22#,23#,270,280..T2..TS..MTM..CBU ﾌﾛﾝﾄ |
2 | ||
| 66235-25050 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25070 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾘﾔ |
2 | ||
| 66235-95A03 |
KDY22#,23#,270,280..T2..TS..MTM..CBU ﾌﾛﾝﾄ |
2 | ||
| 66235-25050 |
KDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313A - HOOK, ROPE, NO.3 | ||||
| 66311-95707 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 右側 |
1 | ||
| 66312-95012 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 左側 |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66311-95707 |
KDY22#,23#,LY220,230,RZY220,230,TRY220,230..T2..TS..15T..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66331-95010 |
TRY230..TS..15T..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC**,ﾌﾛﾝﾄ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66331-95010 |
TRY230..TS..15T..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC**,ﾌﾛﾝﾄ |
2 | ||
| Common parts | ||||
| 90119-08657 | ||||
| 90150-50006 | ||||
| 90179-06156 | ||||
| 90467-0510122 | ||||
| 90467-06091 | ||||
| 91511-J0820 | ||||
| 91515-40825 | ||||
| 91551-80608 | ||||
| 91621-J0612 | ||||
| 91651-40616 | ||||
| 93260-18016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
