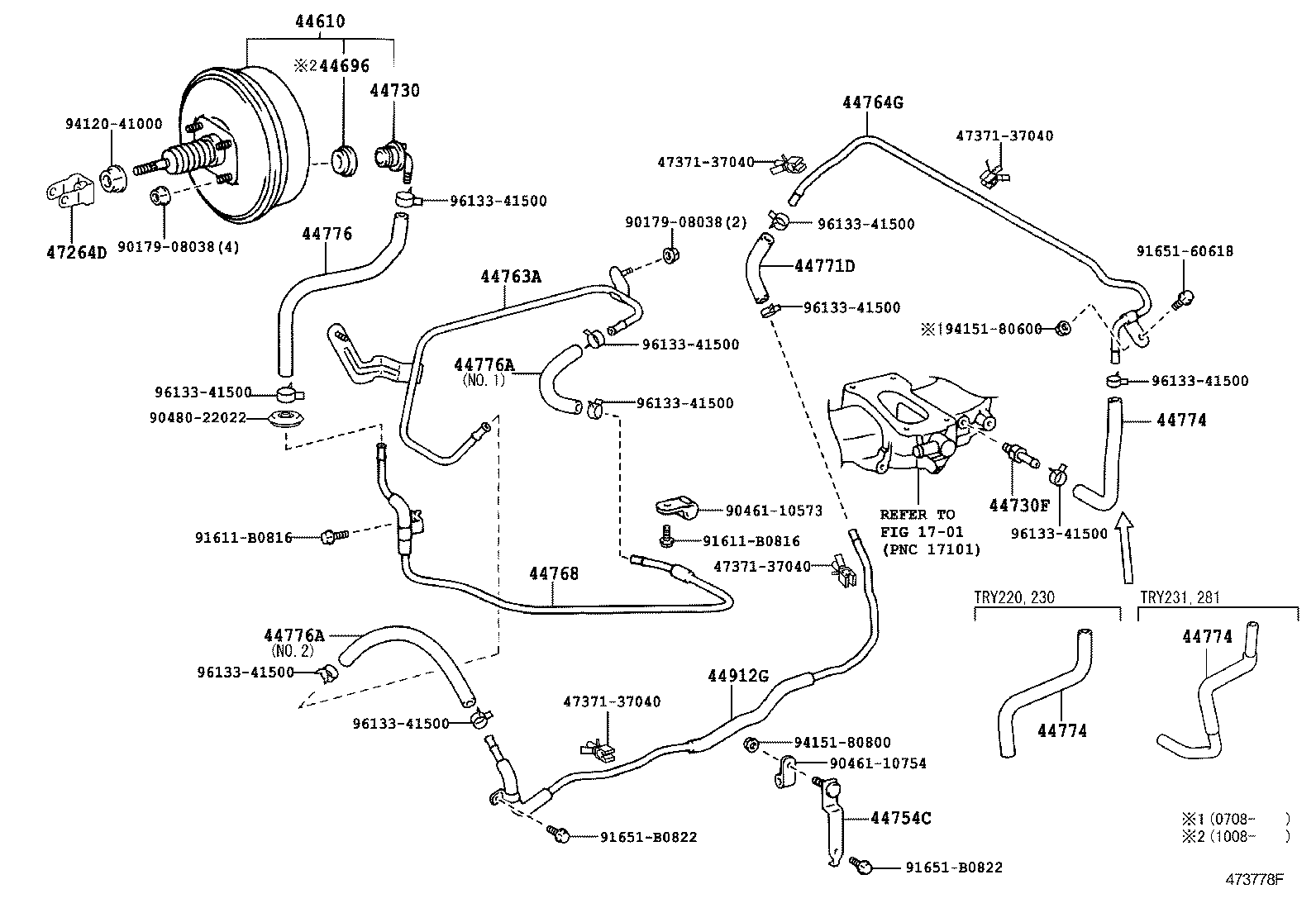

TRY230-TLMDK3 (2003)
Toyota Dyna/Toyoace
(0308-1610)RZY231,281,TRY220,23#,281
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-25320 |
LY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG |
1 | ||
| 44610-25340 |
TRY220,23#,281 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
TRY220,23#,281 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
LY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG |
1 | ||
| 44730-20170 |
TRY220,23#,281 |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-25020 |
RZY231,281,TRY220,23#,281 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-25030 |
RZY231,281,TRY220,23#,281 |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-25110 |
RZY231,281,TRY220,23#,281 |
1 | ||
| 44764-25111 |
TRY220,23#,281 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-25080 |
KDY271,281,TRY220;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..T2,T4,VAN;KDY231,TRY230..(T2,T3,T4,TW1,TW4)..(CBU,IV3) |
1 | ||
| 44768-25080 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 44768-25080 |
TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-25120 |
RZY231,281,TRY220,23#,281 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-25120 |
TRY220,230 |
1 | ||
| 44774-25090 |
KDY220,230,240,270,280,290 |
1 | ||
| 44774-25122 |
TRY220,230 |
1 | ||
| 44774-25121 |
TRY220,230 |
1 | ||
| 44774-25091 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-25120 |
TRY220,230 |
1 | ||
| 44774-25090 |
KDY220,230,240,270,280,290 |
1 | ||
| 44774-25122 |
TRY220,230 |
1 | ||
| 44774-25121 |
TRY220,230 |
1 | ||
| 44774-25091 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-25120 |
TRY220,230 |
1 | ||
| 44774-25090 |
KDY220,230,240,270,280,290 |
1 | ||
| 44774-25122 |
TRY220,230 |
1 | ||
| 44774-25121 |
TRY220,230 |
1 | ||
| 44774-25091 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37370 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 44776-25040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 90445-17141 |
RZY231,281,TRY220,23#,281 NO.1 |
1 | ||
| 90445-17177 |
RZY231,281,TRY220,23#,281 NO.2 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 90445-17141 |
RZY231,281,TRY220,23#,281 NO.1 |
1 | ||
| 90445-17177 |
RZY231,281,TRY220,23#,281 NO.2 |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-25131 |
TRY220,23#,281 |
1 | ||
| 44912-25120 |
LY220,230,240,270,280,290 |
1 | ||
| 44912-25140 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44912-25130 |
RZY231,281,TRY220,230 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47264-42010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90461-10573 | ||||
| 90461-10754 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 91651-60618 | ||||
| 91651-B0822 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1701 | ||||

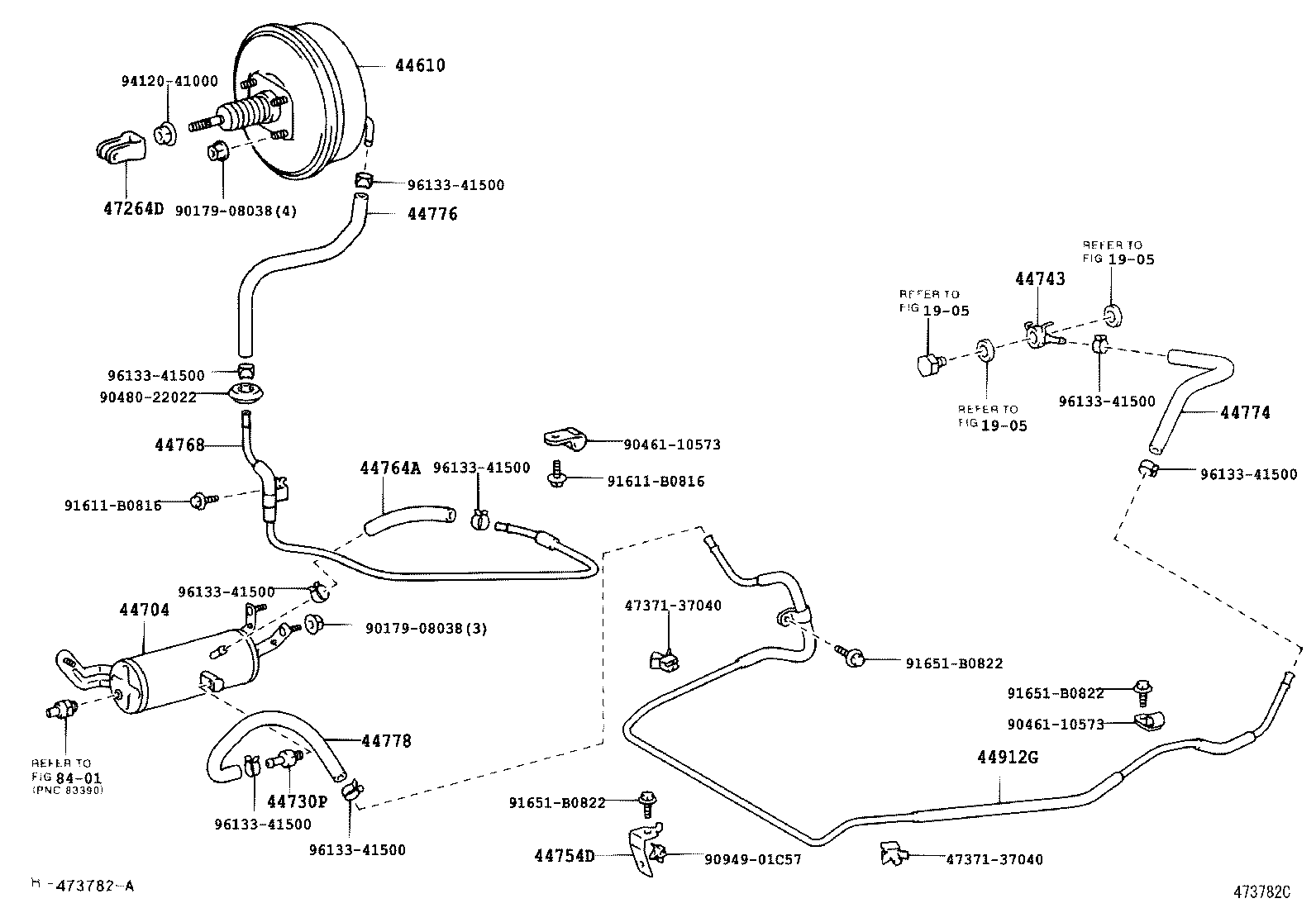

(0308- )LY220,230,240,270,280,290
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-25320 |
LY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG |
1 | ||
| 44610-25340 |
TRY220,23#,281 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-25160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09175 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09175 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-25020 |
RZY231,281,TRY220,23#,281 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-25080 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 44768-25080 |
TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 44768-25080 |
KDY271,281,TRY220;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..T2,T4,VAN;KDY231,TRY230..(T2,T3,T4,TW1,TW4)..(CBU,IV3) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-25120 |
TRY220,230 |
1 | ||
| 44774-25090 |
KDY220,230,240,270,280,290 |
1 | ||
| 44774-25122 |
TRY220,230 |
1 | ||
| 44774-25121 |
TRY220,230 |
1 | ||
| 44774-25091 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37370 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 44776-25040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-25050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290 |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-25131 |
TRY220,23#,281 |
1 | ||
| 44912-25120 |
LY220,230,240,270,280,290 |
1 | ||
| 44912-25140 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44912-25130 |
RZY231,281,TRY220,230 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47264-42010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90461-10573 | ||||
| 90461-10754 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 91651-B0822 | ||||
| 94120-41000 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 8401 | ||||
(0408-1610)KDY22#,23#,24#,27#,28#,290
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-25320 |
LY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG |
1 | ||
| 44610-25340 |
TRY220,23#,281 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-25160 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09175 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44754D - BRACKET, VACUUM TUBE, NO.2 | ||||
| 44754-25040 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-25080 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 44768-25080 |
TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 44768-25080 |
KDY271,281,TRY220;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..T2,T4,VAN;KDY231,TRY230..(T2,T3,T4,TW1,TW4)..(CBU,IV3) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-25120 |
TRY220,230 |
1 | ||
| 44774-25090 |
KDY220,230,240,270,280,290 |
1 | ||
| 44774-25122 |
TRY220,230 |
1 | ||
| 44774-25121 |
TRY220,230 |
1 | ||
| 44774-25091 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37370 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 44776-25040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-25050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290 |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-25131 |
TRY220,23#,281 |
1 | ||
| 44912-25120 |
LY220,230,240,270,280,290 |
1 | ||
| 44912-25140 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44912-25130 |
RZY231,281,TRY220,230 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47264-42010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90461-10573 | ||||
| 90480-22022 | ||||
| 90949-01C57 | ||||
| 91611-B0816 | ||||
| 91651-B0822 | ||||
| 94120-41000 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 8401 | ||||
(1610- )TRY220,23#,281
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-25320 |
LY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG |
1 | ||
| 44610-25340 |
TRY220,23#,281 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
TRY220,23#,281 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
LY230,280,RZY220,23#,281,TRY220,23#,281..EFI,LPG |
1 | ||
| 44730-20170 |
TRY220,23#,281 |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-25020 |
RZY231,281,TRY220,23#,281 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-25030 |
RZY231,281,TRY220,23#,281 |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-25110 |
RZY231,281,TRY220,23#,281 |
1 | ||
| 44764-25111 |
TRY220,23#,281 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-25080 |
KDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS) |
1 | ||
| 44768-25080 |
TRY230..(TW2,TW3)..TS;KDY231,TRY230..WT..IV6;KDY231,TRY220..(TW1,TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281 |
1 | ||
| 44768-25080 |
KDY271,281,TRY220;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..T2,T4,VAN;KDY231,TRY230..(T2,T3,T4,TW1,TW4)..(CBU,IV3) |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-25120 |
RZY231,281,TRY220,23#,281 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-25120 |
TRY220,230 |
1 | ||
| 44774-25090 |
KDY220,230,240,270,280,290 |
1 | ||
| 44774-25122 |
TRY220,230 |
1 | ||
| 44774-25121 |
TRY220,230 |
1 | ||
| 44774-25091 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-25120 |
TRY220,230 |
1 | ||
| 44774-25090 |
KDY220,230,240,270,280,290 |
1 | ||
| 44774-25122 |
TRY220,230 |
1 | ||
| 44774-25121 |
TRY220,230 |
1 | ||
| 44774-25091 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37370 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 44776-25040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 90445-17141 |
RZY231,281,TRY220,23#,281 NO.1 |
1 | ||
| 90445-17177 |
RZY231,281,TRY220,23#,281 NO.2 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 90445-17141 |
RZY231,281,TRY220,23#,281 NO.1 |
1 | ||
| 90445-17177 |
RZY231,281,TRY220,23#,281 NO.2 |
1 | ||
| 44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) | ||||
| 90466-15003 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) | ||||
| 90466-15003 |
KDY221,231,241,271,281,TRY220,23#,281 |
2 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-25131 |
TRY220,23#,281 |
1 | ||
| 44912-25120 |
LY220,230,240,270,280,290 |
1 | ||
| 44912-25140 |
KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 44912-25130 |
RZY231,281,TRY220,230 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-25020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 47264-42010 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 44597-37021 | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90461-10573 | ||||
| 90461-10754 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 91651-60618 | ||||
| 91651-B0822 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
