TRY230-TLMDK3 (2003)
Toyota Dyna/Toyoace
(0408- )KDY27#,28#,290..MTM ; (0408- )KDY22#,23#..MTM..125T,1T..ST
R351,R351F

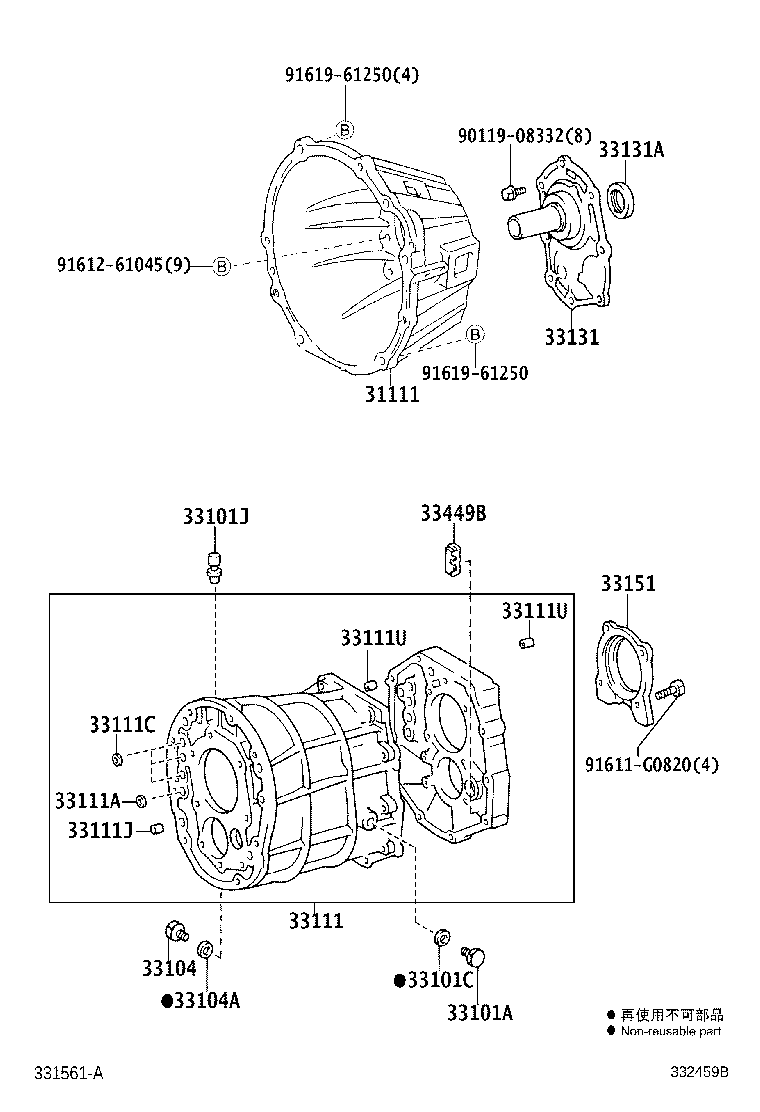

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-35101 |
KDY220,230,240..MTM |
1 | ||
| 31111-26032 |
RZY220,TRY220..MTM..ST;RZY230,TRY230..(T2,TW3)..TS..MTM..ST |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18032 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 90341-18006 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
LY280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-35060 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33101-26060 |
TRY220..MTM..ST;TRY230..(T2,TW3)..TS..MTM..ST |
1 | ||
| 33101-26040 |
LY280..MTM..DSL;KDY22#,23#..MTM..(125T,1T)..ST;KDY27#,28#,290,LY270,290,RZY281,TRY281..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 外径=18 |
3 | ||
| 90331-14004 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;LY230,RZY230,TRY230..MTM..(12T,15T,175T)..(DSL,EFI);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=16,外径=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=14,外径=15 |
4 | ||
| 90253-11001 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=14,外径=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM 長さ=14,外径=15 |
4 | ||
| 90253-11001 |
LY280..MTM..DSL;LY220..(T2,T4)..MTM;LY230..MTM..(125T,12T,15T,175T);KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY220,23#,281,TRY220,23#,281..MTM 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) 長さ=14,外径=15 |
2 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35031 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33131-26020 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30014 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
LY220,RZY220,TRY220..MTM..ST;LY230,RZY230,TRY230..(T2,TW3)..MTM..(125T,1T) |
1 | ||
| 33151-35020 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
LY280..MTM..DSL;LY220,RZY220,TRY220..WT;LY230,RZY230,TRY230..MTM..(12T,15T,175T);LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T;KDY22#,23#,24#,27#,28#,290,LY240,270,290,RZY231,281,TRY231,281..MTM |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
