Toyota Dyna/toyoace TRY230 ELECTRONIC FUEL INJECTION SYSTEM

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
TRY230-TLMDK (2003)
8404 - ELECTRONIC FUEL INJECTION SYSTEM

TRY230-TLMDK (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999

Engine 1TRFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0107-0708)LY230,280,RZY220,23#,281..EFI,LPG

Click highlighted areas on diagram

Part #	Description	Period	Qty
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	TRY220,23#,281	08/2003 - 12/2999	1
89422-35010	LY230,280,RZY220,23#,281..EFI,LPG	07/2001 - 08/2007	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-71010	TRY220,23#,281	08/2016 - 12/2999	1
89438-33010	TRY220,23#,281	08/2003 - 07/2016	1
89661 - COMPUTER, ENGINE CONTROL
89661-25092	TRY220,230..MTM DENSO	06/2004 - 10/2007	1
89661-25310	TRY220,230..MTM DENSO	08/2010 - 06/2012	1
89661-25090	TRY220,230..MTM DENSO	08/2003 - 05/2004	1
89661-25280	TRY220,230..MTM DENSO	06/2012 - 05/2015	1
89661-25200	TRY220,230..MTM DENSO	10/2007 - 08/2010	1
89661-25470	TRY220,230..MTM DENSO	05/2015 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-25020	TRY220,230..MTM	06/2004 - 10/2007	1
89667-25060	TRY220,230	10/2007 - 10/2016	1
89667-25020	TRY220,230..MTM	08/2003 - 05/2004	1
89667-37010	RZY220,23#,281	07/2001 - 08/2007	1
89667-25140	TRY220,230	10/2016 - 12/2999	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-37010	RZY220,23#,281	07/2001 - 08/2007	1
89668-25070	TRY220,230	10/2007 - 10/2016	1
89668-25020	TRY220,230..MTM	06/2004 - 10/2007	1
89668-25130	TRY220,230	10/2016 - 12/2999	1
89668-25020	TRY220,230..MTM	08/2003 - 05/2004	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-25010	TRY220,230..MTM	08/2003 - 05/2004	1
89669-37010	RZY220,23#,281	07/2001 - 08/2007	1
89669-25010	TRY220,230..MTM	06/2004 - 10/2007	1
Common parts
90430-12005
91621-40620
91651-60616
93319-15010
93568-55016
94150-80600

(0308-0710)TRY220,230

Click highlighted areas on diagram

Part #	Description	Period	Qty
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	TRY220,23#,281	08/2003 - 12/2999	1
89422-35010	LY230,280,RZY220,23#,281..EFI,LPG	07/2001 - 08/2007	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-71010	TRY220,23#,281	08/2016 - 12/2999	1
89438-33010	TRY220,23#,281	08/2003 - 07/2016	1
89581A - DRIVER, AIR INJECTION CONTROL
89581-34042	TRY220,230	04/2016 - 12/2999	1
89581-34041	TRY220,230	08/2007 - 03/2016	1
89661 - COMPUTER, ENGINE CONTROL
89661-25092	TRY220,230..MTM DENSO	06/2004 - 10/2007	1
89661-25310	TRY220,230..MTM DENSO	08/2010 - 06/2012	1
89661-25090	TRY220,230..MTM DENSO	08/2003 - 05/2004	1
89661-25280	TRY220,230..MTM DENSO	06/2012 - 05/2015	1
89661-25200	TRY220,230..MTM DENSO	10/2007 - 08/2010	1
89661-25470	TRY220,230..MTM DENSO	05/2015 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-25020	TRY220,230..MTM	06/2004 - 10/2007	1
89667-25060	TRY220,230	10/2007 - 10/2016	1
89667-25020	TRY220,230..MTM	08/2003 - 05/2004	1
89667-37010	RZY220,23#,281	07/2001 - 08/2007	1
89667-25140	TRY220,230	10/2016 - 12/2999	1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-25080	TRY220,23#,281	10/2007 - 10/2016	1
89667-25030	TRY220,230	08/2003 - 10/2007	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-25020	TRY220,230..MTM	08/2003 - 05/2004	1
89668-37010	RZY220,23#,281	07/2001 - 08/2007	1
89668-25070	TRY220,230	10/2007 - 10/2016	1
89668-25020	TRY220,230..MTM	06/2004 - 10/2007	1
89668-25130	TRY220,230	10/2016 - 12/2999	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-25010	TRY220,230..MTM	08/2003 - 05/2004	1
89669-37010	RZY220,23#,281	07/2001 - 08/2007	1
89669-25010	TRY220,230..MTM	06/2004 - 10/2007	1
89879A - BRACKET, INJECTOR DRIVER
89589-25010	TRY220,230	08/2007 - 12/2999	1
Common parts
90430-12005
93319-15010
93568-55016
94150-80600

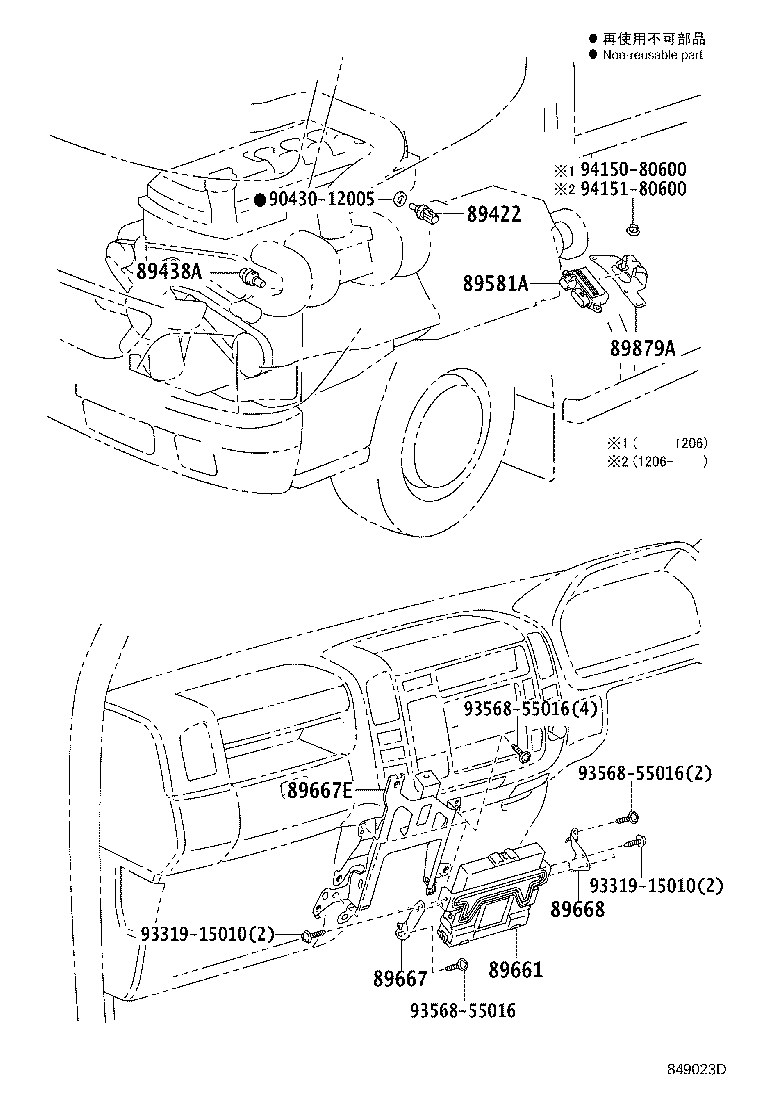

(0710-1610)TRY220,230

Click highlighted areas on diagram

Part #	Description	Period	Qty
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	TRY220,23#,281	08/2003 - 12/2999	1
89422-35010	LY230,280,RZY220,23#,281..EFI,LPG	07/2001 - 08/2007	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-71010	TRY220,23#,281	08/2016 - 12/2999	1
89438-33010	TRY220,23#,281	08/2003 - 07/2016	1
89581A - DRIVER, AIR INJECTION CONTROL
89581-34042	TRY220,230	04/2016 - 12/2999	1
89581-34041	TRY220,230	08/2007 - 03/2016	1
89661 - COMPUTER, ENGINE CONTROL
89661-25092	TRY220,230..MTM DENSO	06/2004 - 10/2007	1
89661-25310	TRY220,230..MTM DENSO	08/2010 - 06/2012	1
89661-25090	TRY220,230..MTM DENSO	08/2003 - 05/2004	1
89661-25280	TRY220,230..MTM DENSO	06/2012 - 05/2015	1
89661-25200	TRY220,230..MTM DENSO	10/2007 - 08/2010	1
89661-25470	TRY220,230..MTM DENSO	05/2015 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-25020	TRY220,230..MTM	06/2004 - 10/2007	1
89667-25060	TRY220,230	10/2007 - 10/2016	1
89667-25020	TRY220,230..MTM	08/2003 - 05/2004	1
89667-37010	RZY220,23#,281	07/2001 - 08/2007	1
89667-25140	TRY220,230	10/2016 - 12/2999	1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-25080	TRY220,23#,281	10/2007 - 10/2016	1
89667-25030	TRY220,230	08/2003 - 10/2007	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-25020	TRY220,230..MTM	08/2003 - 05/2004	1
89668-37010	RZY220,23#,281	07/2001 - 08/2007	1
89668-25070	TRY220,230	10/2007 - 10/2016	1
89668-25020	TRY220,230..MTM	06/2004 - 10/2007	1
89668-25130	TRY220,230	10/2016 - 12/2999	1
89879A - BRACKET, INJECTOR DRIVER
89589-25010	TRY220,230	08/2007 - 12/2999	1
Common parts
90430-12005
93319-15010
93568-55016
94150-80600
94151-80600

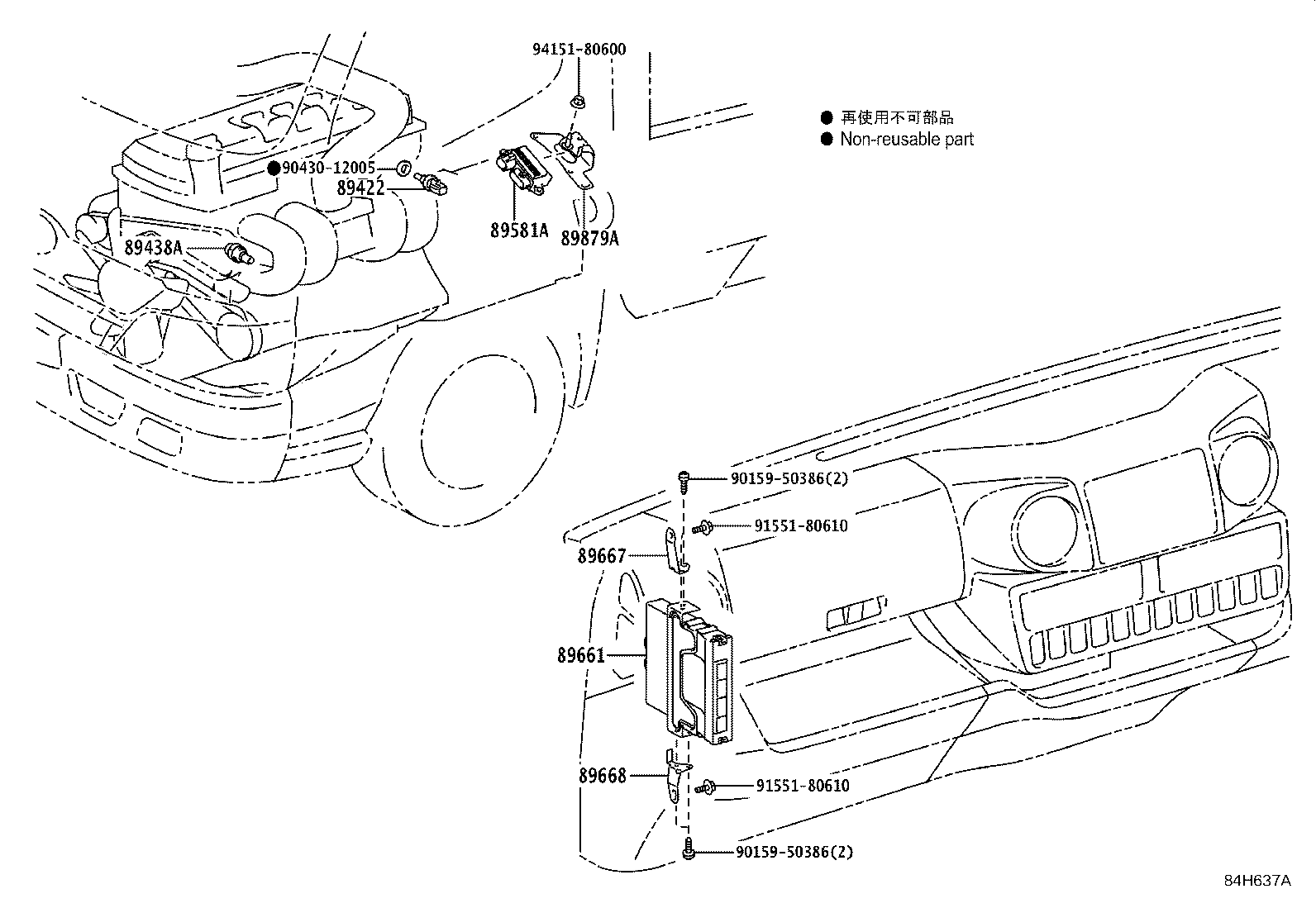

(1610- )TRY220,230

Click highlighted areas on diagram

Part #	Description	Period	Qty
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	TRY220,23#,281	08/2003 - 12/2999	1
89422-35010	LY230,280,RZY220,23#,281..EFI,LPG	07/2001 - 08/2007	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-71010	TRY220,23#,281	08/2016 - 12/2999	1
89438-33010	TRY220,23#,281	08/2003 - 07/2016	1
89581A - DRIVER, AIR INJECTION CONTROL
89581-34042	TRY220,230	04/2016 - 12/2999	1
89581-34041	TRY220,230	08/2007 - 03/2016	1
89661 - COMPUTER, ENGINE CONTROL
89661-25092	TRY220,230..MTM DENSO	06/2004 - 10/2007	1
89661-25310	TRY220,230..MTM DENSO	08/2010 - 06/2012	1
89661-25090	TRY220,230..MTM DENSO	08/2003 - 05/2004	1
89661-25280	TRY220,230..MTM DENSO	06/2012 - 05/2015	1
89661-25200	TRY220,230..MTM DENSO	10/2007 - 08/2010	1
89661-25470	TRY220,230..MTM DENSO	05/2015 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-25020	TRY220,230..MTM	06/2004 - 10/2007	1
89667-25060	TRY220,230	10/2007 - 10/2016	1
89667-25020	TRY220,230..MTM	08/2003 - 05/2004	1
89667-37010	RZY220,23#,281	07/2001 - 08/2007	1
89667-25140	TRY220,230	10/2016 - 12/2999	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-25020	TRY220,230..MTM	08/2003 - 05/2004	1
89668-37010	RZY220,23#,281	07/2001 - 08/2007	1
89668-25070	TRY220,230	10/2007 - 10/2016	1
89668-25020	TRY220,230..MTM	06/2004 - 10/2007	1
89668-25130	TRY220,230	10/2016 - 12/2999	1
89879A - BRACKET, INJECTOR DRIVER
89589-25010	TRY220,230	08/2007 - 12/2999	1
Common parts
90159-50386
90430-12005
91551-80610
94151-80600

TRY230-TLMDK (2003)

(0107-0708)LY230,280,RZY220,23#,281..EFI,LPG

(0308-0710)TRY220,230

(0710-1610)TRY220,230

(1610- )TRY220,230
