TRY230-TGPGK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999
Engine 1TRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )1TR#..TRY23#,281..ATM..15T

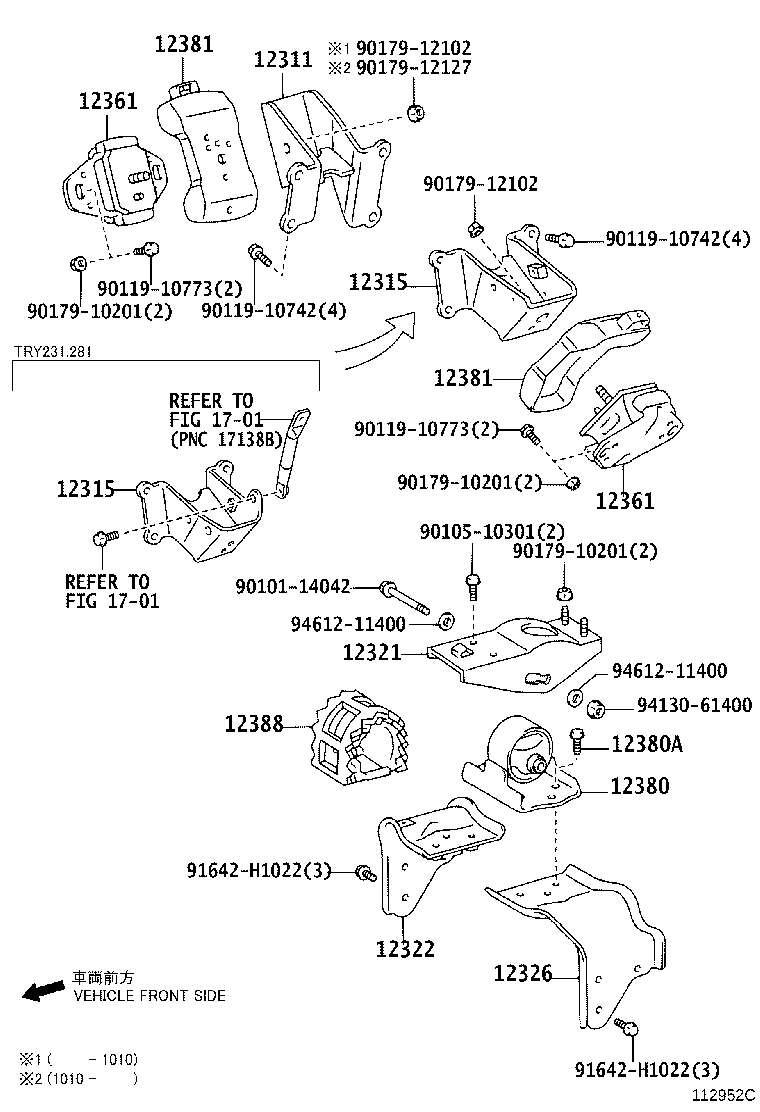

Click highlighted areas on diagram

diagram 12311 12315 12315 12321 12322 12326 12361 12361 12380 12380A 12381 12381 12388 1701 1701 9010114042 9010510301 9011910742 9011910742 9011910773 9011910773 9017910201 9017910201 9017910201 9017912102 9017912102 9017912127 91642H1022 91642H1022 9413061400 9461211400 9461211400
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-75040

1TR#..TRY220,23#,281

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75130

1TRFE..TRY220,230

 1
12315-75100

1TRFE..TRY220,230

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75130

1TRFE..TRY220,230

 1
12315-75100

1TRFE..TRY220,230

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-54130

1TR#..TRY23#,281..ATM..15T

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54171

1TR#..TRY23#..ATM..15T

 1
12326 - BRACKET, ENGINE MOUNTING STAY
12326-54041

1TR#..TRY23#..ATM..15T

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75030

1TR#..TRY220,23#,281

 2
12361-75031

1TR#..TRY220,23#,281

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75030

1TR#..TRY220,23#,281

 2
12361-75031

1TR#..TRY220,23#,281

 2
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-54090

1TR#..TRY23#..ATM..15T

 1
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90105-10514

1TR#..TRY23#,281..ATM..15T

 6
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

1TR#..TRY220,23#,281

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

1TR#..TRY220,23#,281

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

1TR#..TRY220,23#,281

 1
Common parts
90101-14042
90105-10301
90119-10742
90119-10773
90179-10201
90179-12102
90179-12127
91642-H1022
94130-61400
94612-11400
Linked diagrams
1701
