Toyota Dyna/toyoace TRY230 FOG LAMP

TRY230-TGPFK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999

Engine 1TRFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0107-0505)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210B - BULB, FOG LAMP
99132-11270	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 12V 27W	07/2001 - 05/2005	2
90981-13081	KDY221,231,241,271,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	06/2012 - 10/2016	2
90981-13071	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ	05/2005 - 06/2012	2
90981-13075	KDY221,231,241,271,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	06/2012 - 10/2016	2
90981-13090	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 12V 19W	10/2016 - 12/2999	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81211-37070	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 05/2005	1
81211-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
81215D - FOG LAMP SOCKET PLUG ASSY
90075-99092	KDY220,230,240,270,280,290,RZY231,281,TRY220,230	07/2001 - 05/2005	2
81215-37100	KDY220,230,240,270,280,290,RZY231,281	05/2005 - 08/2007	2
81215-37100	KDY221,231,241,271,281,TRY220,23#,281	05/2005 - 06/2012	2
81221C - LAMP UNIT, FOG LAMP, LH
81221-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81221-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
81221-37040	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 05/2005	1
81481 - BRACKET, FOG LAMP
81481-37010	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	2
81481-37010	KDY221,231,241,271,281,TRY220,23#,281	07/2001 - 06/2012	2
Common parts
90109-05100
90168-50077
90205-06004
90467-05094
93383-A6018

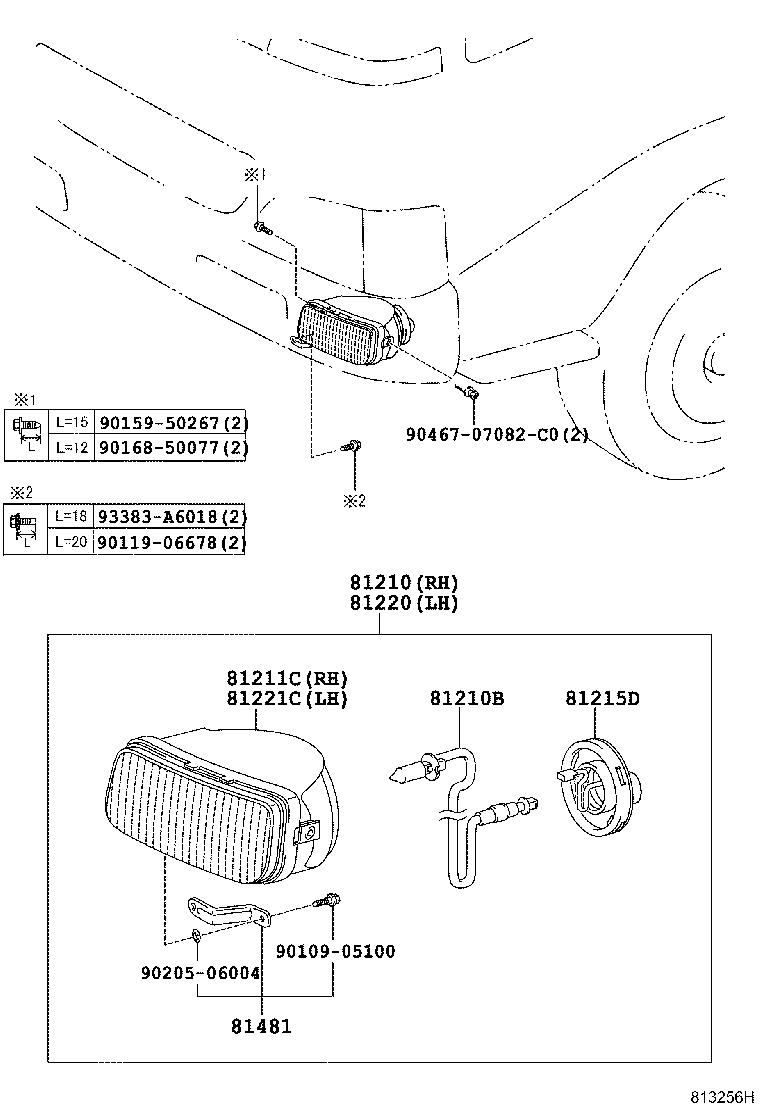

(0505-1206)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210 - LAMP ASSY, FOG
81210-37100	KDY221,231,241,271,281,TRY220,23#,281	05/2005 - 06/2012	1
81210-37100	KDY220,230,240,270,280,290,RZY231,281	05/2005 - 08/2007	1
81210B - BULB, FOG LAMP
99132-11270	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 12V 27W	07/2001 - 05/2005	2
90981-13081	KDY221,231,241,271,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	06/2012 - 10/2016	2
90981-13071	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ	05/2005 - 06/2012	2
90981-13075	KDY221,231,241,271,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	06/2012 - 10/2016	2
90981-13090	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 12V 19W	10/2016 - 12/2999	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81211-37070	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 05/2005	1
81211-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
81215D - FOG LAMP SOCKET PLUG ASSY
90075-99092	KDY220,230,240,270,280,290,RZY231,281,TRY220,230	07/2001 - 05/2005	2
81215-37100	KDY220,230,240,270,280,290,RZY231,281	05/2005 - 08/2007	2
81215-37100	KDY221,231,241,271,281,TRY220,23#,281	05/2005 - 06/2012	2
81220 - LAMP ASSY, FOG, LH
81220-0W040	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
81220-37180	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 LEDﾀｲﾌﾟ	10/2016 - 12/2999	1
81220-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81220-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ﾊﾞﾙﾌﾞﾀｲﾌﾟ	10/2016 - 12/2999	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81221-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
81221-37040	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 05/2005	1
81481 - BRACKET, FOG LAMP
81481-37010	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	2
81481-37010	KDY221,231,241,271,281,TRY220,23#,281	07/2001 - 06/2012	2
Common parts
90109-05100
90119-06678
90159-50267
90168-50077
90205-06004
90467-07082C0
93383-A6018

(1206-1610)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210A - LAMP ASSY, FOG, RH
81210-37180	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 LEDﾀｲﾌﾟ	10/2016 - 12/2999	1
81210-0W050	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
81210-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ﾊﾞﾙﾌﾞﾀｲﾌﾟ	10/2016 - 12/2999	1
81210B - BULB, FOG LAMP
99132-11270	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 12V 27W	07/2001 - 05/2005	2
90981-13081	KDY221,231,241,271,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	06/2012 - 10/2016	2
90981-13071	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ	05/2005 - 06/2012	2
90981-13075	KDY221,231,241,271,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	06/2012 - 10/2016	2
90981-13090	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 12V 19W	10/2016 - 12/2999	2
81220 - LAMP ASSY, FOG, LH
81220-0W040	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
81220-37180	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 LEDﾀｲﾌﾟ	10/2016 - 12/2999	1
81220-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81220-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ﾊﾞﾙﾌﾞﾀｲﾌﾟ	10/2016 - 12/2999	1
Common parts
90167-50063
Linked diagrams
5252

(1610- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210A - LAMP ASSY, FOG, RH
81210-37180	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 LEDﾀｲﾌﾟ	10/2016 - 12/2999	1
81210-0W050	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
81210-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ﾊﾞﾙﾌﾞﾀｲﾌﾟ	10/2016 - 12/2999	1
81210A - LAMP ASSY, FOG, RH
81210-37180	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 LEDﾀｲﾌﾟ	10/2016 - 12/2999	1
81210-0W050	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
81210-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ﾊﾞﾙﾌﾞﾀｲﾌﾟ	10/2016 - 12/2999	1
81210B - BULB, FOG LAMP
99132-11270	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 12V 27W	07/2001 - 05/2005	2
90981-13081	KDY221,231,241,271,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	06/2012 - 10/2016	2
90981-13071	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ	05/2005 - 06/2012	2
90981-13075	KDY221,231,241,271,281,TRY220,23#,281 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	06/2012 - 10/2016	2
90981-13090	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 12V 19W	10/2016 - 12/2999	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81211-37070	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 05/2005	1
81211-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
81220 - LAMP ASSY, FOG, LH
81220-0W040	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
81220-37180	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 LEDﾀｲﾌﾟ	10/2016 - 12/2999	1
81220-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81220-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ﾊﾞﾙﾌﾞﾀｲﾌﾟ	10/2016 - 12/2999	1
81220 - LAMP ASSY, FOG, LH
81220-0W040	KDY221,231,241,271,281,TRY220,23#,281	06/2012 - 10/2016	1
81220-37180	KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 LEDﾀｲﾌﾟ	10/2016 - 12/2999	1
81220-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81220-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3 ﾊﾞﾙﾌﾞﾀｲﾌﾟ	10/2016 - 12/2999	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-37100	KDY22#,23#,24#,27#,28#,290,RZY231,281,TRY220,23#,281	05/2005 - 06/2012	1
81221-47010	KDY221,231,241,271,281,TRY220,23#,281..CBU,IV3	10/2016 - 12/2999	1
81221-37040	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 05/2005	1
Common parts
90119-06678
90167-50063
Linked diagrams
5252

TRY230-TGPFK3 (2003)

(0107-0505)

(0505-1206)

(1206-1610)

(1610- )
