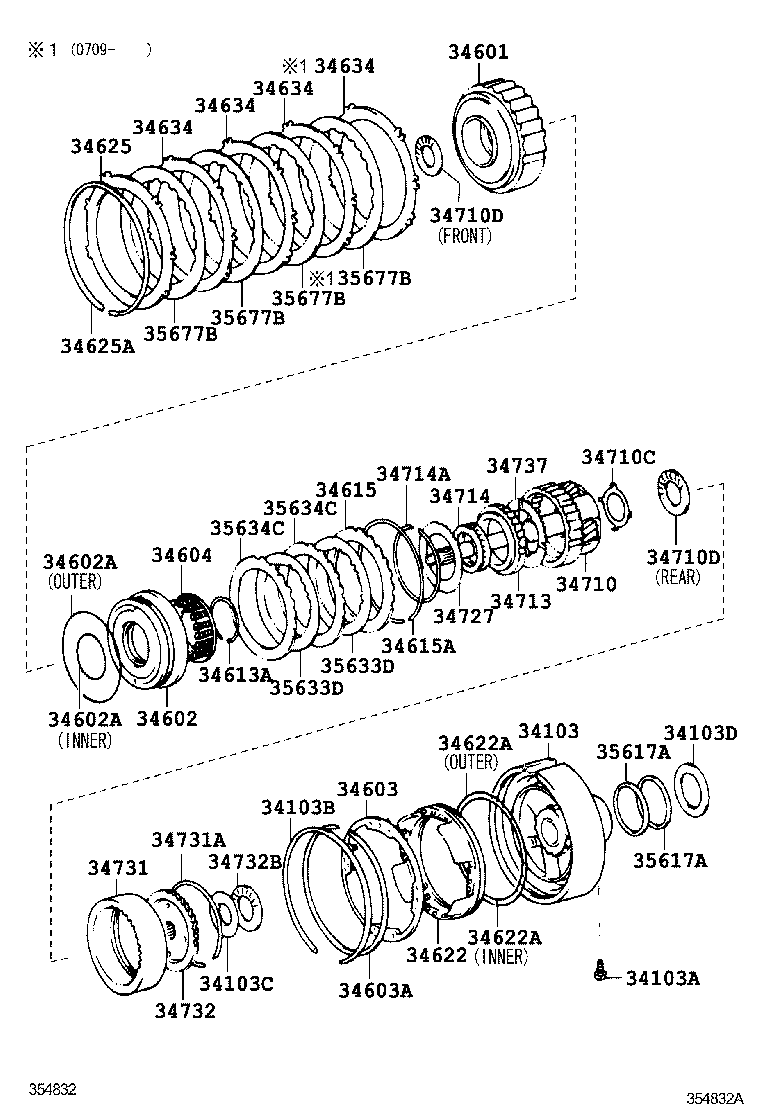

TRY230-TGPFK3 (2003)
Toyota Dyna/Toyoace
(0408- )KDY22#,23#,28#..ATM..125T,1T..ST
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34103 - SUPPORT SUB-ASSY, OVERDRIVE | ||||
| 34103-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34103A - BOLT (FOR OVERDRIVE SUPPORT) | ||||
| 90105-08281 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
2 | ||
| 34103B - RING, HOLE SNAP (FOR OVERDRIVE SUPPORT) | ||||
| 90521-99033 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34103C - RACE, THRUST BEARING (FOR OVERDRIVE SUPPORT FRONT) | ||||
| 35789-22060 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34103D - RACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR) | ||||
| 35789-30090 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-60030 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34601-26020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-60020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34602-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-64007 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-99027 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-65006 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 内側 |
1 | ||
| 90301-99086 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 外側 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-64007 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-99027 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-65006 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 内側 |
1 | ||
| 90301-99086 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 外側 |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34603-30030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34603A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90520-99039 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 90521-99109 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-60020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34604-30010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34613A - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SP | ||||
| 90520-50001 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90520-58001 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 35675-60080 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.77 |
1 | ||
| 35675-60090 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.94 |
1 | ||
| 34615-22030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.3 |
1 | ||
| 34615-22020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.2 |
1 | ||
| 35675-60100 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.11 |
1 | ||
| 34615-22010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.1 |
1 | ||
| 34615-50030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.4 |
1 | ||
| 34615-50050 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.6 |
1 | ||
| 35675-60070 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=4.6 |
1 | ||
| 34615-50040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.5 |
1 | ||
| 34615A - RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) | ||||
| 90521-99115 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99001 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99030 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-99088 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 内側 |
1 | ||
| 90301-99031 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-99090 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 外側 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99030 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 外側 |
1 | ||
| 90301-99088 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 内側 |
1 | ||
| 90301-99031 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 内側 |
1 | ||
| 90301-99090 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 外側 |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-22040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.8,ﾏｰｸ 38 |
1 | ||
| 34625-22050 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.9,ﾏｰｸ 39 |
1 | ||
| 34625-60020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T 厚さ=5.0 |
1 | ||
| 34625-22030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.3,ﾏｰｸ 33 |
1 | ||
| 34625-50030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.6,ﾏｰｸ 36 |
1 | ||
| 34625-22060 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=4.0,ﾏｰｸ 40 |
1 | ||
| 34625-50020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.5,ﾏｰｸ 35 |
1 | ||
| 34625-50040 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=3.7,ﾏｰｸ 37 |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99109 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99027 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-25010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34710-22031 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-30052 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾘﾔ |
1 | ||
| 90374-31008 |
KDY22#,23#,28#..ATM..(125T,1T)..ST ﾘﾔ |
1 | ||
| 90374-31005 |
KDY22#,23#,28#..ATM..(125T,1T)..ST ﾌﾛﾝﾄ |
1 | ||
| 90374-28012 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾌﾛﾝﾄ |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23001 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾘﾔ |
1 | ||
| 90374-31008 |
KDY22#,23#,28#..ATM..(125T,1T)..ST ﾘﾔ |
1 | ||
| 90374-31005 |
KDY22#,23#,28#..ATM..(125T,1T)..ST ﾌﾛﾝﾄ |
1 | ||
| 90374-28012 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T ﾌﾛﾝﾄ |
1 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34713-32010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-36010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34714A - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-90002 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99028 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34727 - PLATE, RETAINING (FOR OVERDRIVE) | ||||
| 34727-32010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34731 - GEAR, OVERDRIVE PLANETARY RING | ||||
| 34731-60010 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34731-30030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34731A - RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) | ||||
| 90521-99110 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 90521-99024 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-60020 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34732-22011 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 34732B - BEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 90374-33002 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 90374-34007 |
KDY23#..ATM..125T..WT;KDY280,LY230,280..TB..ATM;KDY23#,RZY231,281,TRY23#,281..ATM..15T |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30030 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-36020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35617-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-36020 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
2 | ||
| 35617-30020 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633-14010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-60050 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35633-14010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 34616-30010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=2.0 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 34616-30010 |
KDY22#,23#,28#..ATM..(125T,1T)..ST 厚さ=2.0 |
2 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60060 |
LY280..TB..ATM;KDY23#..ATM..125T..WT;KDY280,LY230..TB..ATM..(DCR,DSL);KDY23#,RZY231,281,TRY23#,281..ATM..15T |
3 | ||
