TRY230-TBPDK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999
Engine 1TRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )1TRFE..T2,T3,T4

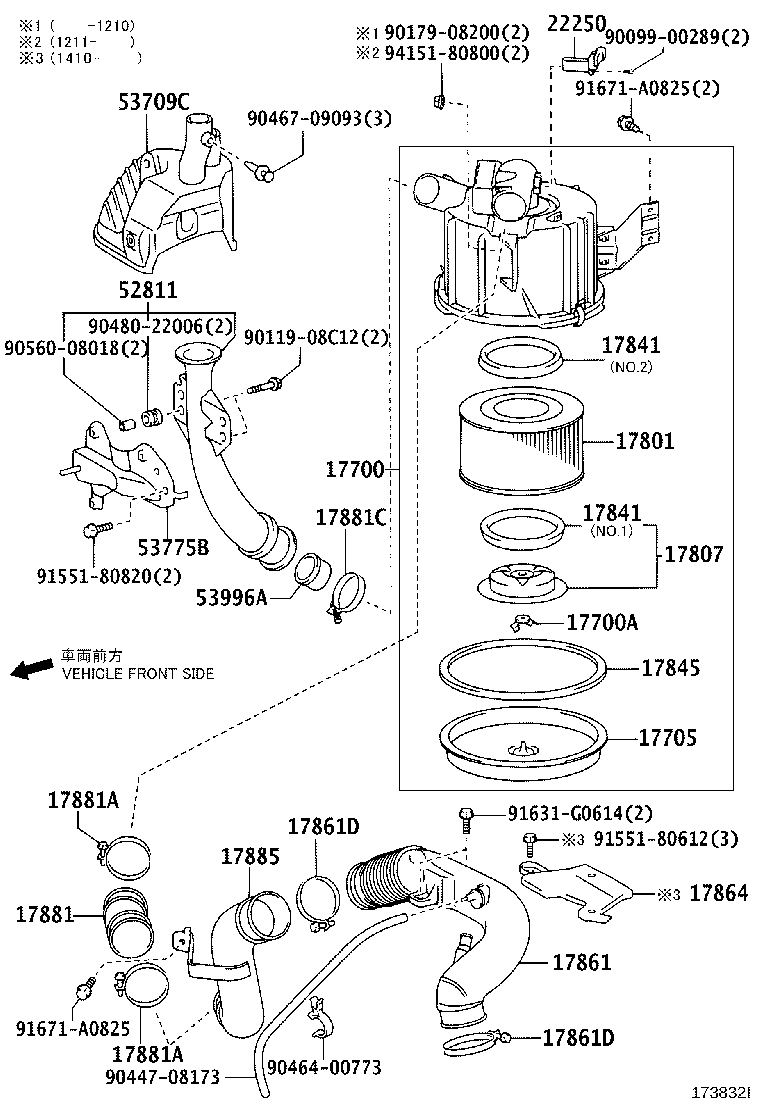

Click highlighted areas on diagram

diagram 17700 17700A 17705 17801 17807 17841 17841 17845 17861 17861D 17861D 17864 17881 17881A 17881A 17881C 17885 22250 52811 53709C 53775B 53996A 9009900289 9011908C12 9017908200 9044708173 9046400773 9046709093 9048022006 9056008018 9155180612 9155180820 91631G0614 91671A0825 91671A0825 9415180800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-75430

1TRFE..TRY220,230

 1
17700-75530

1TRFE..TRY220,230

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

1TR#..TRY220,23#,281

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54490

1TR#..TRY220,23#,281

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68020

1TR#..TRY220,23#,281

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-58020

1TR#..TRY220,23#,281

 1
17841 - GASKET, FILTER ELEMENT
17841-30030

1TR#..TRY220,23#,281

NO.2

 1
17841-68010

1TR#..TRY220,23#,281

NO.1

 1
17841 - GASKET, FILTER ELEMENT
17841-30030

1TR#..TRY220,23#,281

NO.2

 1
17841-68010

1TR#..TRY220,23#,281

NO.1

 1
17845 - GASKET, AIR CLEANER CAP
17845-54030

1TR#..TRY220,23#,281

 1
17861 - CONNECTOR, INTAKE AIR
17861-75073

1TRFE..TRY220,230

 1
17861-75074

1TRFE..TRY220,230

 1
17861-75071

1TRFE..TRY220,230

 1
17861-75070

1TRFE..TRY220,230

 1
17861-75310

1TRFE..TRY220,230..125T,15T

 1
17861-75072

1TRFE..TRY220,230

 1
17861-75075

1TRFE..TRY220,230

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
96111-10730

1TRFE..TRY220,230

 2
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
96111-10730

1TRFE..TRY220,230

 2
17864 - COVER, INTAKE AIR CONNECTOR
17864-75010

1TRFE..TRY220,230

 1
17864-75011

1TRFE..TRY220,230

 1
17864-75012

1TRFE..TRY220,230

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-30040

1TR#..TRY220,23#,281

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1TR#..TRY220,23#,281

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1TR#..TRY220,23#,281

 2
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

1TR#..TRY220,23#,281

 1
17885 - PIPE, AIR CLEANER
17885-75030

1TR#..TRY220,23#,281

 1
22250 - METER ASSY, INTAKE AIR FLOW
22204-75030

1TR#..TRY220,23#,281

 1
52811 - DUCT, COOL AIR INTAKE, NO.1
52811-25010

KDY220,230,270,280..T2,T3,T4

 1
52811-25010

LY220,230,270,280..T2,T3,T4

 1
52811-25010

TRY220,23#,281..T2,T3,T4

 1
52811-25010

RZY220,23#,281..T2,T3,T4

 1
53709C - COVER SUB-ASSY, AIR CLEANER INLET
53767-25040

TRY220,23#,281..T2,T3,T4

 1
53767-25040

LY220,230,270,280..T2,T3,T4

 1
53767-25040

RZY220,23#,281..T2,T3,T4

 1
53767-25040

KDY22#,23#,27#,28#..T2,T3,T4

 1
53775B - BRACKET, COOL AIR INTAKE DUCT MOUNTING
53775-25010

KDY22#,23#,27#,28#..T2,T3,T4

 1
53775-25010

TRY220,23#,281..T2,T3,T4

 1
53996A - PACKING, AIR CLEANER INLET PIPE
53996-25020

LY220,230,240,270,280,290

 1
53996-25020

RZY220,23#,281

 1
53996-25020

TRY220,23#,281

 1
53996-25020

KDY220,230,240,270,280,290

 1
Common parts
90099-00289
90119-08C12
90179-08200
90447-08173
90464-00773
90467-09093
90480-22006
90560-08018
91551-80612
91551-80820
91631-G0614
91671-A0825
94151-80800
