TRY230-TBPDK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999
Engine 1TRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )1TR#

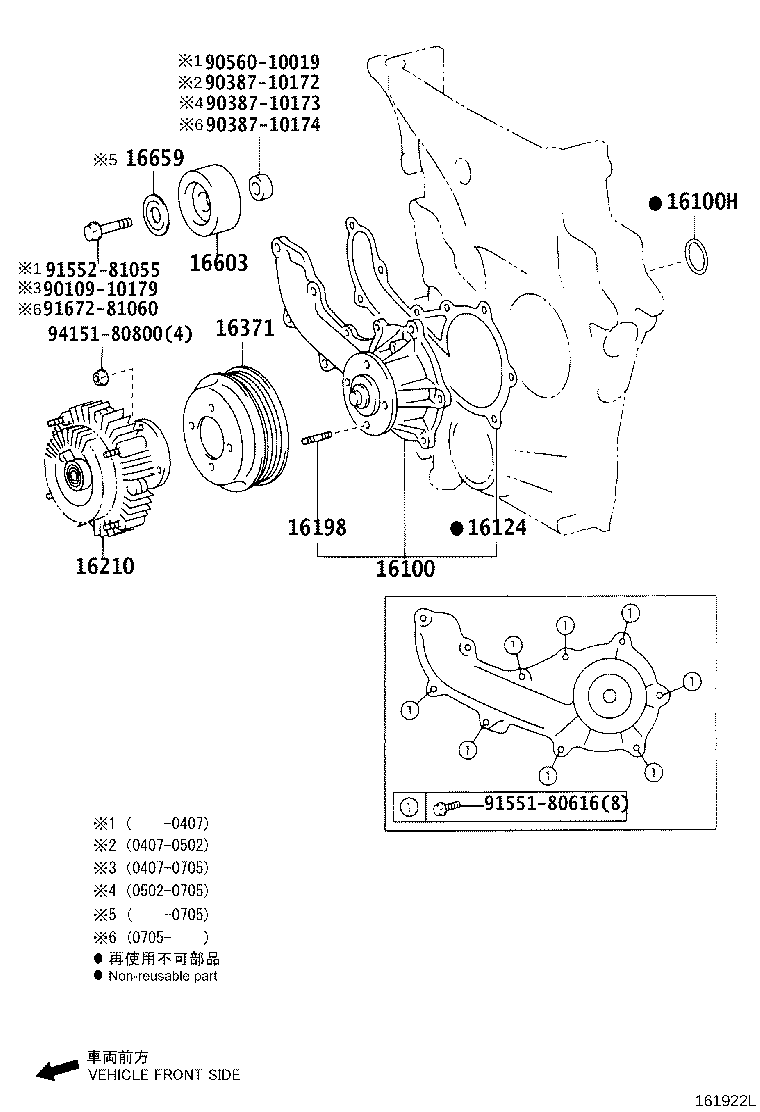

Click highlighted areas on diagram

diagram 16100 16100H 16124 16198 16210 16371 16603 16659 9010910179 9038710172 9038710173 9038710174 9056010019 9155180616 9155281055 9167281060 9415180800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79445

1TR#..TRY220,23#,281

 1
16100H - RING, O(FOR WATER PUMP)
90301-25020

1TR#..TRY220,23#,281

 1
90301-28012

1TR#..TRY220,23#,281

 1
16124 - GASKET, WATER PUMP COVER
16124-75030

1TR#..TRY220,23#,281

 1
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
92122-80818

1TR#..TRY220,23#,281

 4
16210 - COUPLING ASSY, FLUID
16210-75090

1TR#..TRY220,23#,281

 1
16371 - PULLEY, FAN
16371-75040

1TR#..TRY220,23#,281

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-31030

1TRFE..TRY220,230

 1
16603-31050

1TR#..TRY220,23#,281

 1
16603-31010

1TRFE..TRY220,230

 1
16603-31040

1TR#..TRY220,23#,281

 1
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-31010

1TRFE..TRY220,230

 1
16659-31011

1TRFE..TRY220,230

 1
Common parts
90109-10179
90387-10172
90387-10173
90387-10174
90560-10019
91551-80616
91552-81055
91672-81060
94151-80800
