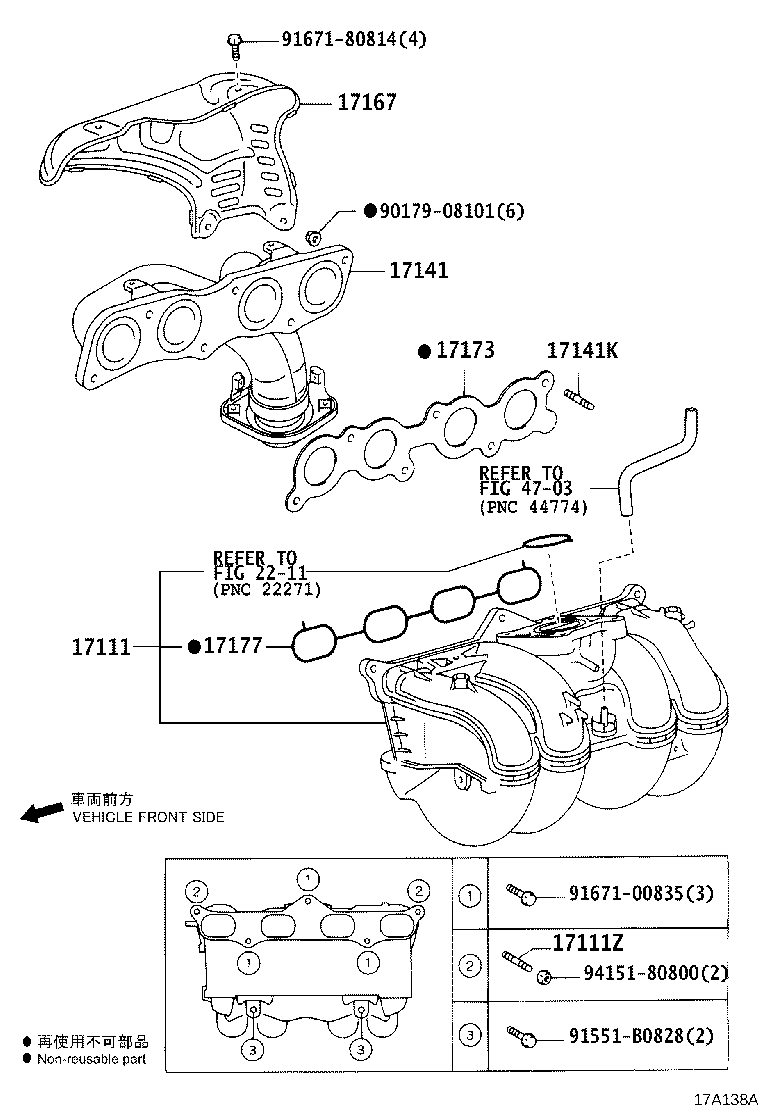

Toyota Dyna/toyoace TRY230 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-0C010	1TRFE..TRY220,230	02/2004 - 08/2015	1
17120-75010	1TRFE..TRY220,230	08/2003 - 02/2004	1
17120-0C011	1TRFE..TRY220,230	09/2015 - 07/2020	1
17120-0C012	1TRFE..TRY220,230	08/2020 - 12/2999	1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026	1TRFE..TRY220,230	08/2003 - 12/2999	2
17141 - MANIFOLD, EXHAUST
17141-75101	1TRFE..TRY220,230	04/2004 - 08/2007	1
17141-75120	1TRFE..TRY220,230	08/2007 - 12/2999	1
17141-75100	1TRFE..TRY220,230	08/2003 - 04/2004	1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08052	1TRFE..TRY220,230	08/2007 - 12/2999	8
90126-08037	1TRFE..TRY220,230	08/2003 - 07/2004	6
90126-08052	1TRFE..TRY220,230	08/2004 - 08/2007	6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-75150	1TRFE..TRY220,230	08/2003 - 04/2004	1
17167-75151	1TRFE..TRY220,230	04/2004 - 04/2007	1
17167-75171	1TR#..TRY220,23#,281	11/2014 - 12/2999	1
17167-75170	1TR#..TRY220,23#,281	04/2007 - 10/2014	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75040	1TRFE..TRY220,230	08/2007 - 12/2999	1
17173-75030	1TRFE..TRY220,230	08/2003 - 08/2007	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75040	1TRFE..TRY220,230	08/2003 - 02/2004	1
17177-0C010	1TRFE..TRY220,230	02/2004 - 12/2999	1
Common parts
90179-08101
91551-B0828
91671-00835
91671-80814
94151-80800
Linked diagrams
2211
4703

TRY230-TBPDK (2003)
