TRY230-PLMEK (2016)
Toyota Dyna/Toyoace
Production
Oct 2016
-
Sep 9999
Engine
1TRFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1610- )

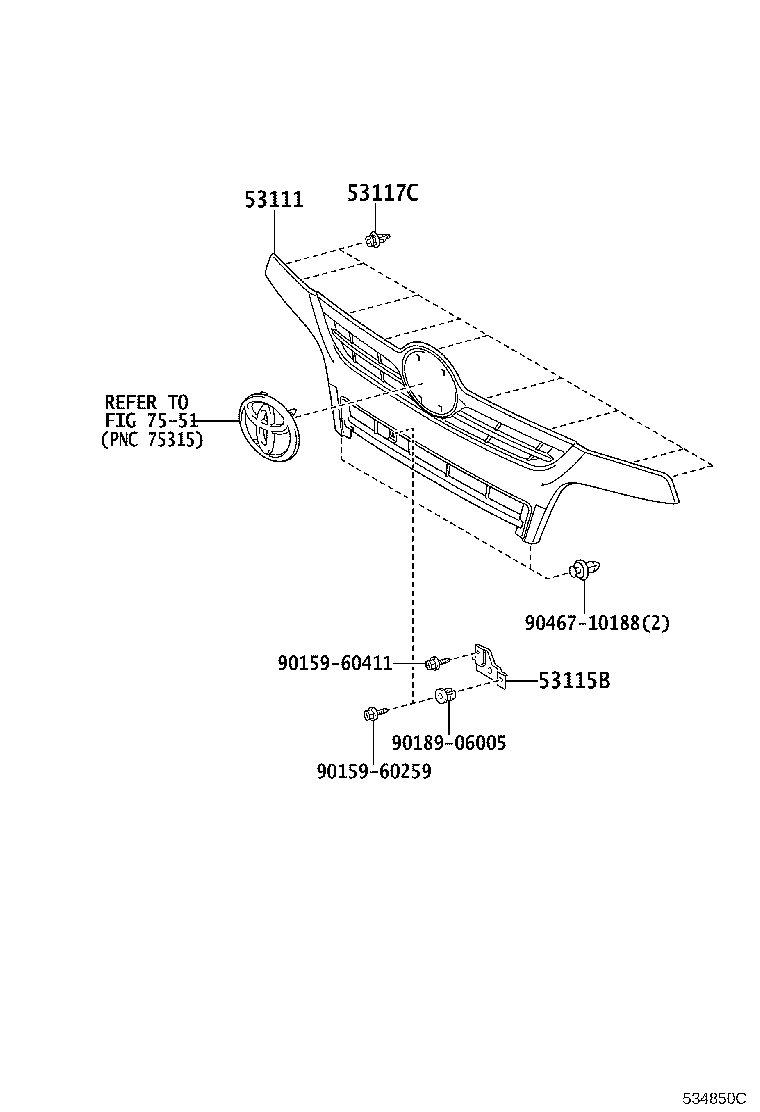

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-37A01B1 |
KDY221,231,271,281,TRY220,23#,281 SILVER ME.,199 |
1 | ||
| 53111-37A01H0 |
KDY221,231,241,271,281,TRY220,23#,281 TURQUOISE,766 |
1 | ||
| 53111-37A01A0 |
KDY221,231,241,271,281,TRY220,23#,281 WHITE,058 |
1 | ||
| 53111-37A11 |
KDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281 ﾒｯｷ |
1 | ||
| 53111-37A01J1 |
KDY221,231,241,271,281,TRY220,23#,281 BLUE,8P0 |
1 | ||
| 53115B - BRACKET, RADIATOR GRILLE | ||||
| 53115-37080 |
KDY221,231,241,271,281,TRY220,23#,281 |
1 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 67771-37040 |
KDY221,231,241,271,281,TRY220,23#,281 |
9 | ||
| Common parts | ||||
| 90159-60259 | ||||
| 90159-60411 | ||||
| 90189-06005 | ||||
| 90467-10188 | ||||
| Linked diagrams | ||||
| 7551 | ||||
