Toyota Dyna/toyoace TRY230 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
TRY230-PBMBK3 (2003)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

TRY230-PBMBK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 2016

Engine 1TRFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

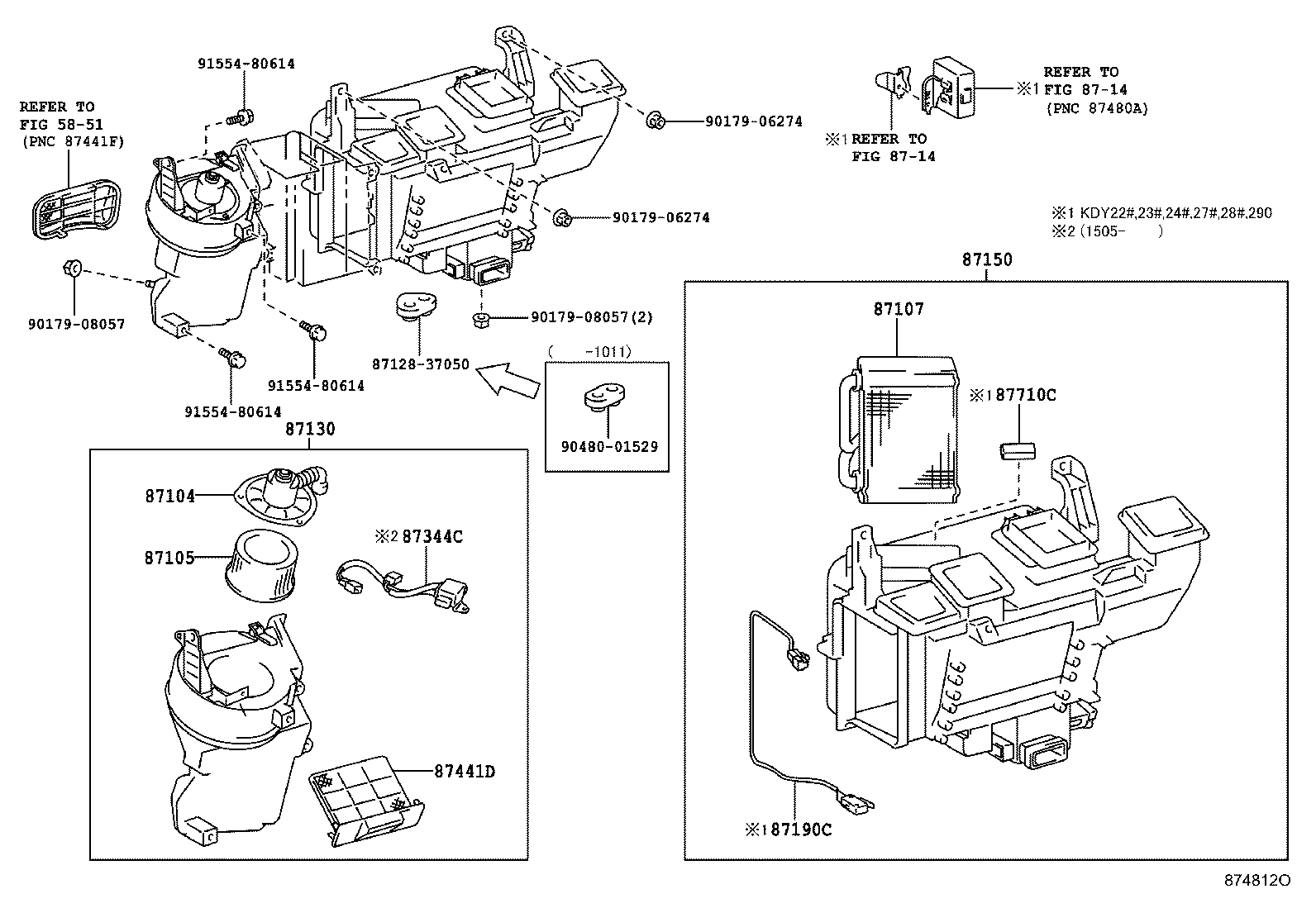

ILLUST NO. 1 OF 2(0107-1610)

Click highlighted areas on diagram

ﾌﾛﾝﾄ - ﾏﾆｭｱﾙｴｱｺﾝ

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37120	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87104-37120	KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)	07/2001 - 09/2016	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87105-37030	KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)	07/2001 - 09/2016	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-25050	TRY220,230..1T	06/2007 - 09/2016	1
87107-25050	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
87107-37040	RZY231,281,TRY220,230	07/2001 - 05/2007	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37150	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87130-37150	KDY221,231,241,271,281,TRY220,23#,281	07/2001 - 06/2010	1
87130-37160	KDY221,231..T4..TB;KDY271,281,TRY220,230;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｵ-ﾄｴｱｺﾝ	07/2001 - 04/2015	1
87130-25041	KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)	05/2015 - 09/2016	1
87130-25060	KDY221..T3,TW1;KDY231,TRY220,230..1T ｵ-ﾄｴｱｺﾝ	05/2015 - 09/2016	1
87130-37151	KDY221,231,241,271,281,TRY220,23#,281	07/2010 - 04/2015	1
87150 - RADIATOR ASSY, HEATER
87150-37160	TRY220,230 ｵ-ﾄｴｱｺﾝ	07/2001 - 05/2007	1
87150-25060	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
87150-25010	RZY231,281,TRY220,230 ﾏﾆﾕｱﾙｴｱｺﾝ	08/2003 - 05/2007	1
87150-37300	TRY220,230..1T ﾏﾆﾕｱﾙｴｱｺﾝ	06/2007 - 09/2016	1
87150-37200	RZY231,281,TRY220,230 ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	08/2003 - 05/2007	1
87150-37320	TRY220,230..1T ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	06/2007 - 09/2016	1
87150-37161	TRY220,230..1T ｵ-ﾄｴｱｺﾝ	06/2007 - 09/2016	1
87150-25050	KDY220,230,240,270,280,290 ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	08/2004 - 08/2007	1
87344C - WIRE, HEATER
87387-25010	KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)	05/2015 - 09/2016	1
87710C - HEATER ASSY, QUICK
87710-25010	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
Common parts
87128-37050
90179-06274
90179-08057
90480-01529
91554-80614
Linked diagrams
5851
8714

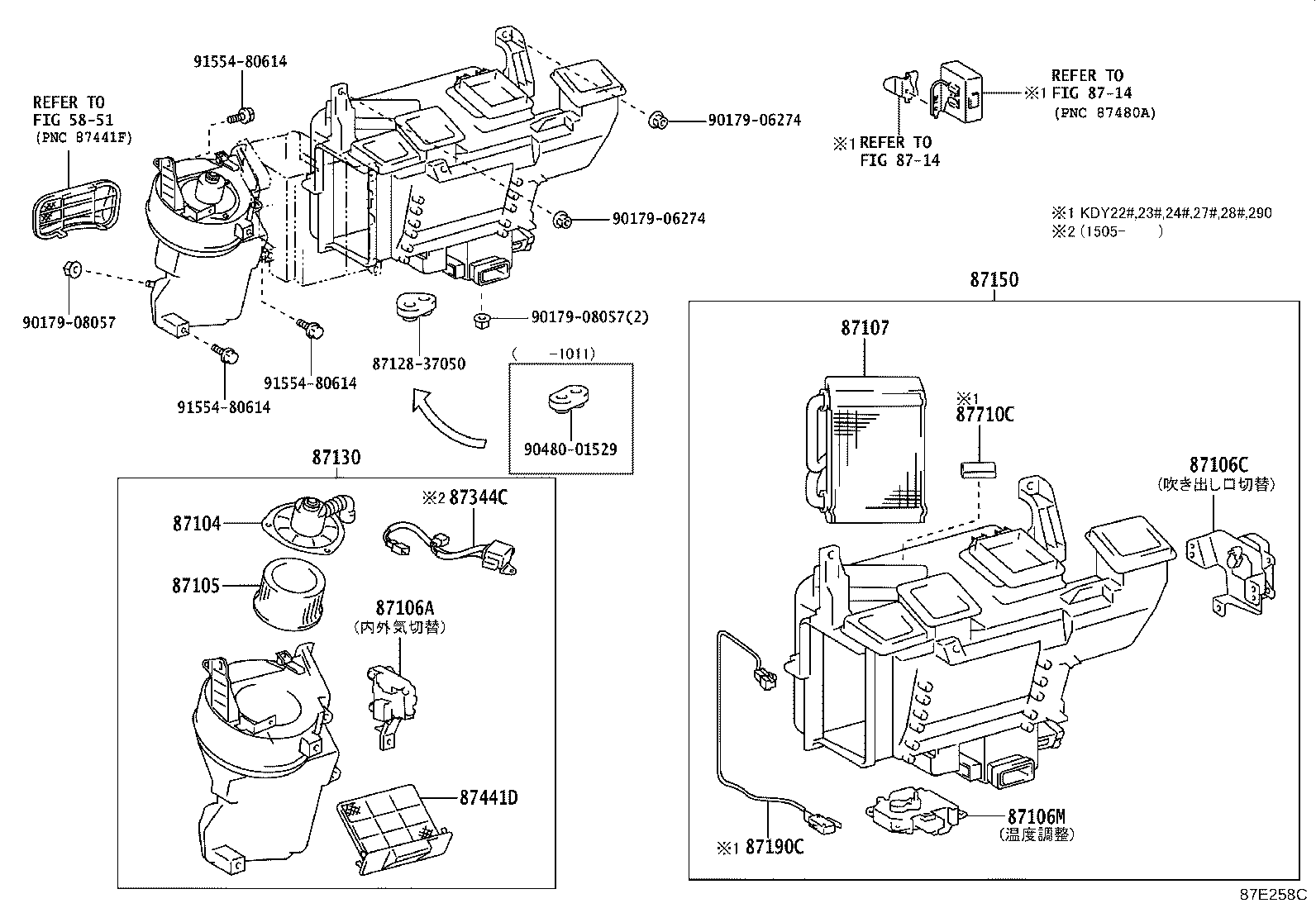

ILLUST NO. 1 OF 2(0107-1610)

Click highlighted areas on diagram

ﾌﾛﾝﾄ - ｵｰﾄｴｱｺﾝ

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37120	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87104-37120	KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)	07/2001 - 09/2016	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87105-37030	KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)	07/2001 - 09/2016	1
87106A - SERVO SUB-ASSY, DAMPER
87106-37040	KDY221..T3,TW1;KDY231,TRY220,230..1T ｵ-ﾄｴｱｺﾝ	07/2001 - 09/2016	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-37050	KDY221..T3,TW1;KDY231,TRY220,230..1T ｵ-ﾄｴｱｺﾝ	07/2001 - 09/2016	1
87106M - SERVO SUB-ASSY, DAMPER, NO.2
87106-37060	KDY221..T3,TW1;KDY231,TRY220,230..1T ｵ-ﾄｴｱｺﾝ	07/2001 - 09/2016	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-25050	TRY220,230..1T	06/2007 - 09/2016	1
87107-25050	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
87107-37040	RZY231,281,TRY220,230	07/2001 - 05/2007	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37150	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
87130-37150	KDY221,231,241,271,281,TRY220,23#,281	07/2001 - 06/2010	1
87130-37160	KDY221,231..T4..TB;KDY271,281,TRY220,230;KDY221,231..T2,T3,TW1,TW2,TW3,TW4 ｵ-ﾄｴｱｺﾝ	07/2001 - 04/2015	1
87130-25041	KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)	05/2015 - 09/2016	1
87130-25060	KDY221..T3,TW1;KDY231,TRY220,230..1T ｵ-ﾄｴｱｺﾝ	05/2015 - 09/2016	1
87130-37151	KDY221,231,241,271,281,TRY220,23#,281	07/2010 - 04/2015	1
87150 - RADIATOR ASSY, HEATER
87150-37160	TRY220,230 ｵ-ﾄｴｱｺﾝ	07/2001 - 05/2007	1
87150-25060	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
87150-25010	RZY231,281,TRY220,230 ﾏﾆﾕｱﾙｴｱｺﾝ	08/2003 - 05/2007	1
87150-37300	TRY220,230..1T ﾏﾆﾕｱﾙｴｱｺﾝ	06/2007 - 09/2016	1
87150-37200	RZY231,281,TRY220,230 ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	08/2003 - 05/2007	1
87150-37320	TRY220,230..1T ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	06/2007 - 09/2016	1
87150-37161	TRY220,230..1T ｵ-ﾄｴｱｺﾝ	06/2007 - 09/2016	1
87150-25050	KDY220,230,240,270,280,290 ｶﾝﾚｲﾁｼﾖｳ & ﾏﾆﾕｱﾙｴｱｺﾝ	08/2004 - 08/2007	1
87344C - WIRE, HEATER
87387-25010	KDY231,TRY220,230..1T;KDY221,241..(T3,TW1,VAN)..(06S,TS)	05/2015 - 09/2016	1
87710C - HEATER ASSY, QUICK
87710-25010	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
Common parts
87128-37050
90179-06274
90179-08057
90480-01529
91554-80614
Linked diagrams
5851
8714
