TRY230-PBMBK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 2016

Engine 1TRFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

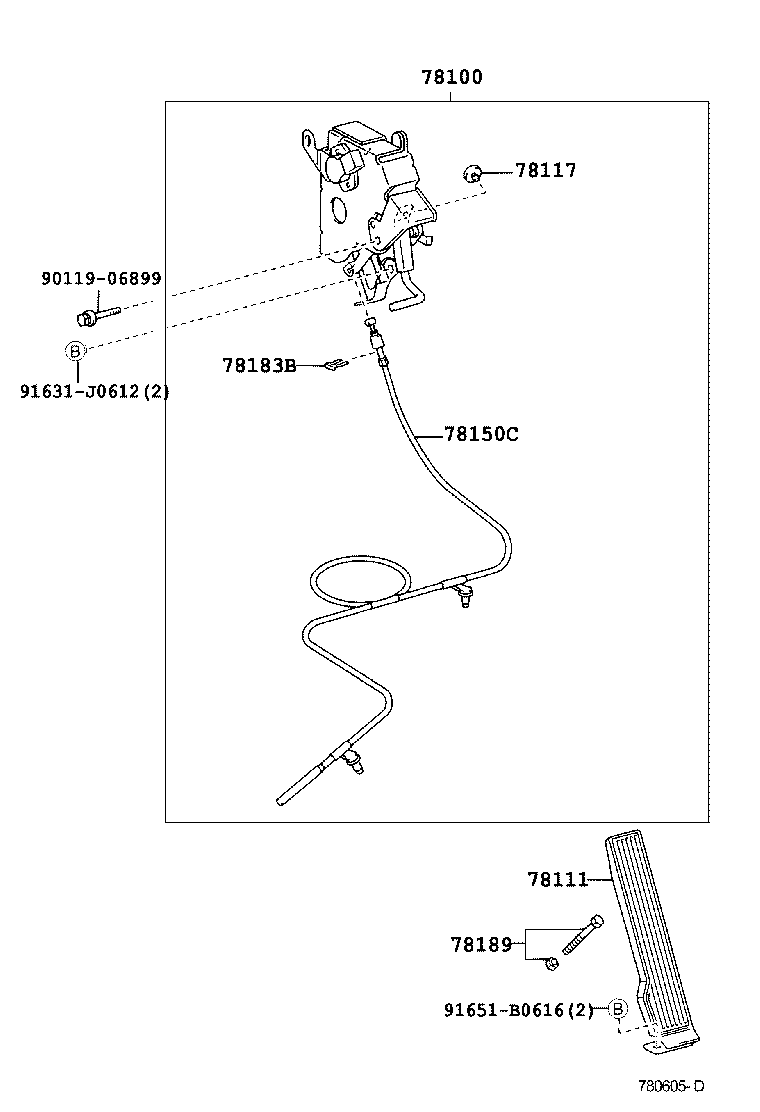

(0308-0710)TRY220,230

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
78100 - LINK ASSY, ACCELERATOR
78100-25210	LY230,280,RZY220,23#,281..MTM..(EFI,LPG)	07/2001 - 08/2007	1
78100-37750	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
78100-25170	TRY220,230	08/2003 - 10/2007	1
78111 - PEDAL, ACCELERATOR
78110-95410	KDY220,230,240,270,280,290,RZY231,281,TRY220,230	07/2001 - 08/2007	1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06038	TRY220,230	07/2001 - 10/2007	1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37482	TRY220,230	08/2003 - 10/2007	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-26170	TRY220,230	08/2003 - 10/2007	1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-25020	TRY220,230	08/2003 - 10/2007	1
78208-37080	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
Common parts
90119-06899
91631-J0612
91651-B0616

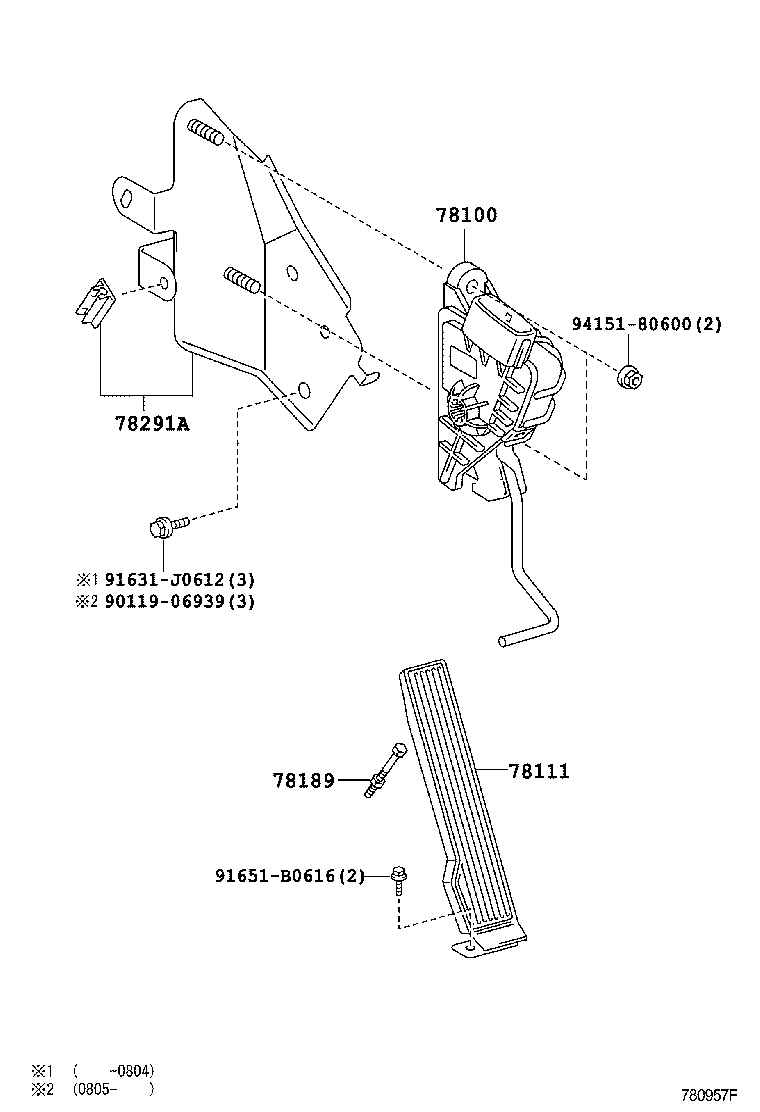

(0408- )KDY220,230,240,270,280,290

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
78100 - LINK ASSY, ACCELERATOR
78100-25210	LY230,280,RZY220,23#,281..MTM..(EFI,LPG)	07/2001 - 08/2007	1
78100-37750	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
78100-25170	TRY220,230	08/2003 - 10/2007	1
78111 - PEDAL, ACCELERATOR
78110-95410	KDY220,230,240,270,280,290,RZY231,281,TRY220,230	07/2001 - 08/2007	1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-25020	TRY220,230	08/2003 - 10/2007	1
78208-37080	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
78291A - BRACKET, ACCELERATOR LINK
78291-37070	KDY221,231,241,271,281,TRY220,23#,281	08/2007 - 12/2999	1
78291-37030	KDY220,230,270,280	08/2004 - 08/2007	1
Common parts
90119-06939
91631-J0612
91651-B0616
94151-80600

(0708- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35460	KDY221,231,241,271,281,TRY220,23#,281	08/2007 - 04/2016	1
78120-35461	KDY221,231,241,271,281,TRY220,23#,281	05/2016 - 12/2999	1
78291A - BRACKET, ACCELERATOR LINK
78291-37070	KDY221,231,241,271,281,TRY220,23#,281	08/2007 - 12/2999	1
78291-37030	KDY220,230,270,280	08/2004 - 08/2007	1
Common parts
90119-06939
91551-80814
94151-80600
