TRY230-PBMBK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 2016
Engine 1TRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KDY22#,23#,24#,27#,28#,290..MTM

Click highlighted areas on diagram

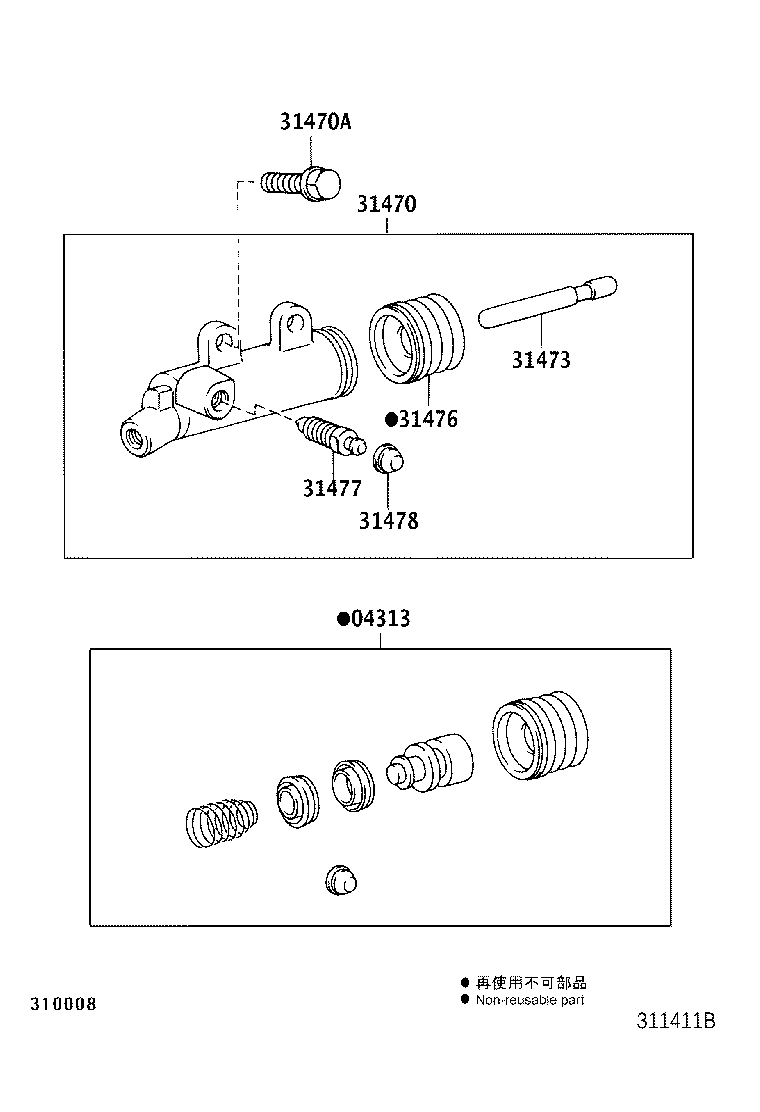

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-22030

KDY220,230,240..MTM

 1
04313-17010

LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-25040

KDY220,230,240,270,280,290..MTM

 1
31470-26100

LY230,RZY220,23#,281,TRY220,23#,281..MTM..(EFI,LPG)

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-B0825

LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM

*8−1.25PX25−25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-32010

KDY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM

 1
