TRY230-PBMBK (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 2016
Engine 1TRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

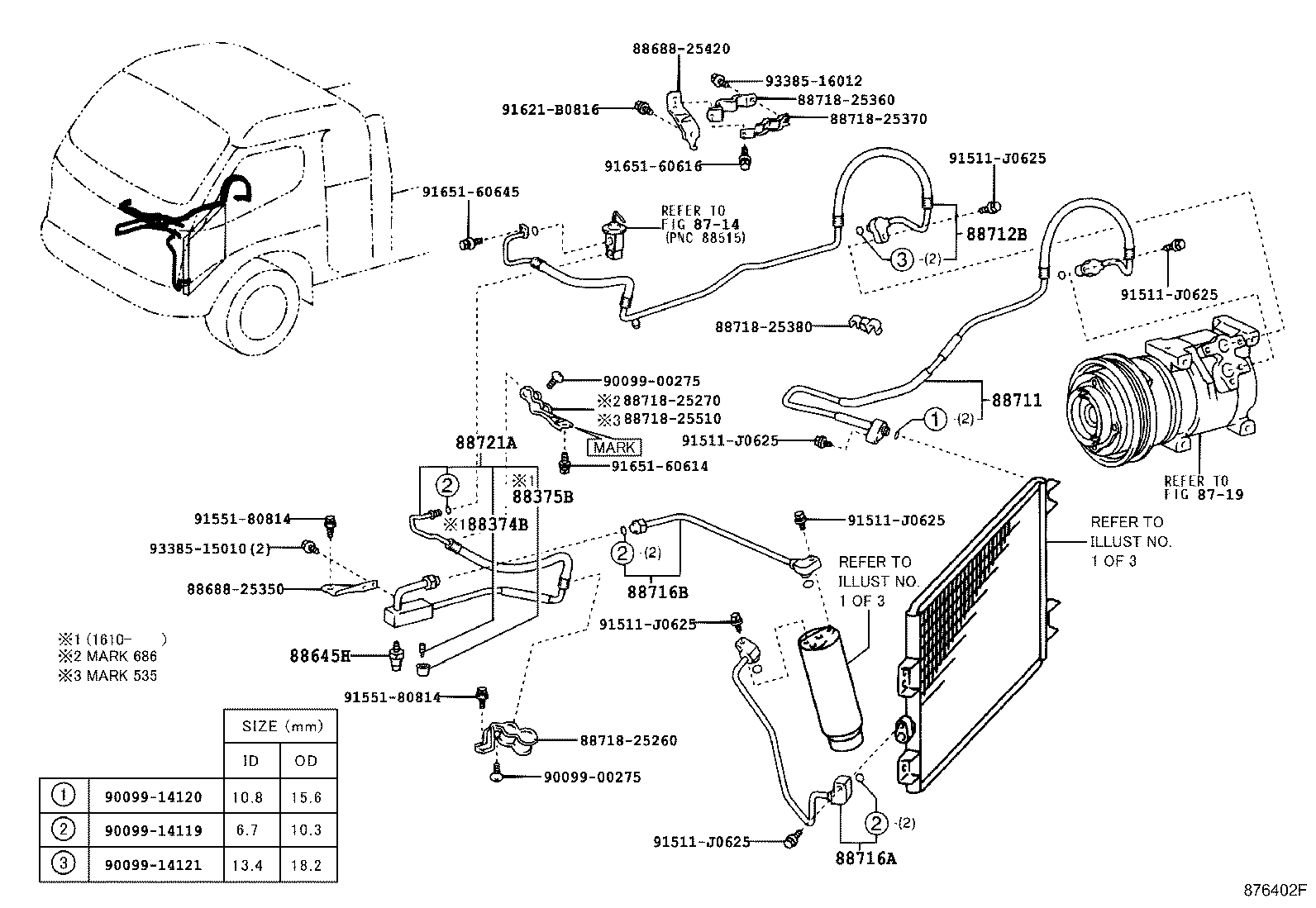

ILLUST NO. 2 OF 3(0308- )TRY220,23#,281

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8714 8719 88374B 88375B 88645H 8868825350 8868825420 88711 88712B 88716A 88716B 8871825260 8871825270 8871825360 8871825370 8871825380 8871825510 88721A 9009900275 9009900275 9009914119 9009914120 9009914121 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9155180814 9155180814 91621B0816 9165160614 9165160616 9165160645 9338515010 9338516012
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

TRY230..WT..IV6;KDY221,231,241,271,281;TRY220,230..TW1,TW2,TW3

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

TRY230..WT..IV6;TRY230..TS..125T..WT;KDY221,231,241,271,281,RZY220,230,TRY231,281

 1
88375-30280

TRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-25370

LY230,280,RZY220,23#,281..EFI,LPG

 1
88711-25420

TRY220,23#,281

 1
88711-25450

KDY220,230,240,270,280,290

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-25230

LY220..125T..ST;RZY230..TW4..CBU;LY230..TB..WT..DSL..IV3;LY230..(T2,T3)..ST..IV3;RZY230..T2..15T..ST..CBU;LY230,RZY220..T2..TB..15T..CBU;LY230..(T2,T3,TW3)..TS..(CBU,IV6);LY220,RZY231,281,TRY231,281..15T,1T;LY230..(T3,T4,TW2,TW4)..TB..DSL..CBU;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,TRY220,230..DCR,DSL,EFI

 1
88716-25360

KDY221,231,241,271,281,TRY220,23#,281

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-25260

KDY271..IV3;KDY221..T3..TS;KDY221..TB..IV3;KDY221..1T..CBU;KDY231..15T..WT..IV3;KDY221,281..(T2,T3,TW1)..(15T,1T)..IV3;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
88721A - HOSE, LIQUID, A
88721-25240

LY220,230,270,280,RZY220,230..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88721-25230

TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
Common parts
88688-25350
88688-25420
88718-25260
88718-25270
88718-25360
88718-25370
88718-25380
88718-25510
90099-00275
90099-14119
90099-14120
90099-14121
91511-J0625
91551-80814
91621-B0816
91651-60614
91651-60616
91651-60645
93385-15010
93385-16012
Linked diagrams
8714
8719

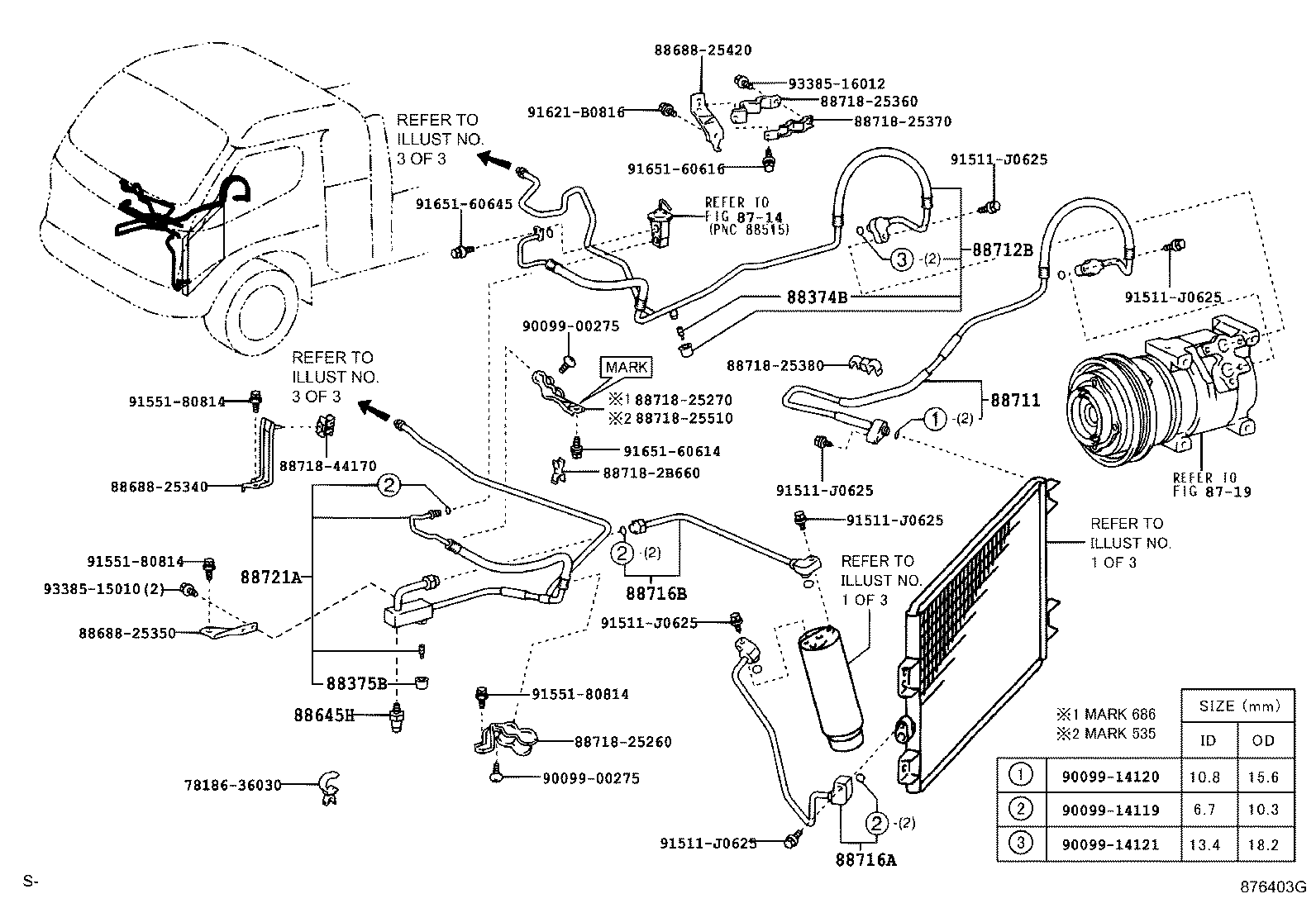

ILLUST NO. 2 OF 3(0308- )TRY220,230..TW1,TW2,TW3

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ｸ-ﾗ)

diagram 7818636030 8714 8719 88374B 88375B 88645H 8868825340 8868825350 8868825420 88711 88712B 88716A 88716B 8871825260 8871825270 8871825360 8871825370 8871825380 8871825510 887182B660 8871844170 88721A 9009900275 9009900275 9009914119 9009914120 9009914121 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9155180814 9155180814 9155180814 91621B0816 9165160614 9165160616 9165160645 9338515010 9338516012
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

TRY230..WT..IV6;KDY221,231,241,271,281;TRY220,230..TW1,TW2,TW3

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

TRY230..WT..IV6;TRY230..TS..125T..WT;KDY221,231,241,271,281,RZY220,230,TRY231,281

 1
88375-30280

TRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-25370

LY230,280,RZY220,23#,281..EFI,LPG

 1
88711-25420

TRY220,23#,281

 1
88711-25450

KDY220,230,240,270,280,290

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-25230

LY220..125T..ST;RZY230..TW4..CBU;LY230..TB..WT..DSL..IV3;LY230..(T2,T3)..ST..IV3;RZY230..T2..15T..ST..CBU;LY230,RZY220..T2..TB..15T..CBU;LY230..(T2,T3,TW3)..TS..(CBU,IV6);LY220,RZY231,281,TRY231,281..15T,1T;LY230..(T3,T4,TW2,TW4)..TB..DSL..CBU;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,TRY220,230..DCR,DSL,EFI

 1
88716-25360

KDY221,231,241,271,281,TRY220,23#,281

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-25260

KDY271..IV3;KDY221..T3..TS;KDY221..TB..IV3;KDY221..1T..CBU;KDY231..15T..WT..IV3;KDY221,281..(T2,T3,TW1)..(15T,1T)..IV3;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
88721A - HOSE, LIQUID, A
88721-25240

LY220,230,270,280,RZY220,230..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88721-25230

TRY231,281;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI

 1
Common parts
78186-36030
88688-25340
88688-25350
88688-25420
88718-25260
88718-25270
88718-25360
88718-25370
88718-25380
88718-25510
88718-2B660
88718-44170
90099-00275
90099-14119
90099-14120
90099-14121
91511-J0625
91551-80814
91621-B0816
91651-60614
91651-60616
91651-60645
93385-15010
93385-16012
Linked diagrams
8714
8719

ILLUST NO. 3 OF 3(0408- )KDY22#,23#,27#,28#..TW1,TW2,TW3,TW4

Click highlighted areas on diagram

ﾘﾔ

diagram 8714 8868825450 88712C 88716C 88717 8871825310 8871825320 8871825440 8871825450 8871825480 8871825500 8871837730 88721B 9009900264 9009900264 9009900264 9009900275 9009914119 9009914121 9155180814 9155180814 9155180814 9155180814 9155180814 9338516012
Part # Description Qty Price
88712C - HOSE, SUCTION
88712-25500

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-25340

TRY220,230..TW1,TW2,TW3

 1
88716-25310

TRY220,230..TW1,TW2,TW3

 1
88716-25300

LY220,230,270,280,RZY220,230..TW1,TW2,TW3,TW4

 1
88716-25330

KDY220,230,270,280..TW1,TW2,TW3,TW4

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-25290

LY220,230,270,280,RZY220,230..TW1,TW2,TW3,TW4

 1
88717-25330

TRY220,230..TW1,TW2,TW3

 1
88717-25300

TRY220,230..TW1,TW2,TW3

 1
88717-25320

KDY220,230,270,280..TW1,TW2,TW3,TW4

 1
88721B - HOSE, LIQUID, B
88721-25260

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
Common parts
88688-25450
88718-25310
88718-25320
88718-25440
88718-25450
88718-25480
88718-25500
88718-37730
90099-00264
90099-00275
90099-14119
90099-14121
91551-80814
93385-16012
Linked diagrams
8714

ILLUST NO. 1 OF 3(0408- )KDY220,230,240,270,280

Click highlighted areas on diagram

ﾚｲﾄｳｼｬ

diagram 8714 8719 88479 8856925010 8868825350 8868825380 88710 88711 88712B 88712C 8871430310 8871495J05 88716A 88716B 8871825260 8871825270 8871825510 9004464009 9009140620 9009140623 9009490424 9009490424 9009904464 9009914119 9009914120 9009914121 9009935037 9046320473 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9165160616 91651B0820 9338515010
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-25370

LY230,280,RZY220,23#,281..EFI,LPG

 1
88711-25420

TRY220,23#,281

 1
88711-25450

KDY220,230,240,270,280,290

 1
88712C - HOSE, SUCTION
88712-25500

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-25230

LY220..125T..ST;RZY230..TW4..CBU;LY230..TB..WT..DSL..IV3;LY230..(T2,T3)..ST..IV3;RZY230..T2..15T..ST..CBU;LY230,RZY220..T2..TB..15T..CBU;LY230..(T2,T3,TW3)..TS..(CBU,IV6);LY220,RZY231,281,TRY231,281..15T,1T;LY230..(T3,T4,TW2,TW4)..TB..DSL..CBU;KDY22#,23#,24#,27#,28#,290,LY240,270,280,290,TRY220,230..DCR,DSL,EFI

 1
88716-25360

KDY221,231,241,271,281,TRY220,23#,281

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-25260

KDY271..IV3;KDY221..T3..TS;KDY221..TB..IV3;KDY221..1T..CBU;KDY231..15T..WT..IV3;KDY221,281..(T2,T3,TW1)..(15T,1T)..IV3;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 1
Common parts
88569-25010
88688-25350
88688-25380
88714-30310
88714-95J05
88718-25260
88718-25270
88718-25510
90044-64009
90091-40620
90091-40623
90094-90424
90099-04464
90099-14119
90099-14120
90099-14121
90099-35037
90463-20473
91511-J0625
91651-60616
91651-B0820
93385-15010
Linked diagrams
8714
8719
