TRY220-TLPDK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999
Engine 1TRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )1TRFE

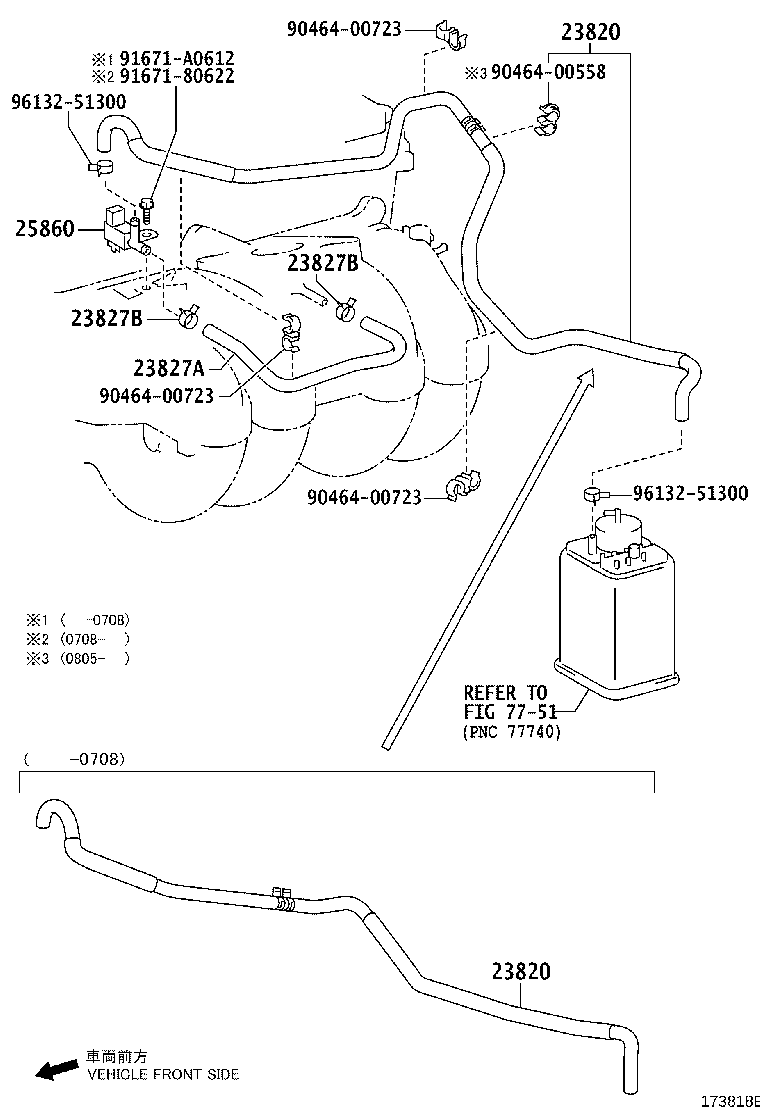

Click highlighted areas on diagram

diagram 23820 23820 23827A 23827B 23827B 25860 7751 9046400558 9046400723 9046400723 9046400723 9167180622 91671A0612 9613251300 9613251300
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-75100

1TRFE..TRY220,230

 1
23820-75101

1TRFE..TRY220,230

 1
23820-75102

1TRFE..TRY220,230

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-75100

1TRFE..TRY220,230

 1
23820-75101

1TRFE..TRY220,230

 1
23820-75102

1TRFE..TRY220,230

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75280

1TRFE..TRY220,230

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1TRFE..TRY220,230

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1TRFE..TRY220,230

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75270

1TRFE..TRY220,230

 1
90910-12280

1TRFE..TRY220,230

 1
Common parts
90464-00558
90464-00723
91671-80622
91671-A0612
96132-51300
Linked diagrams
7751
