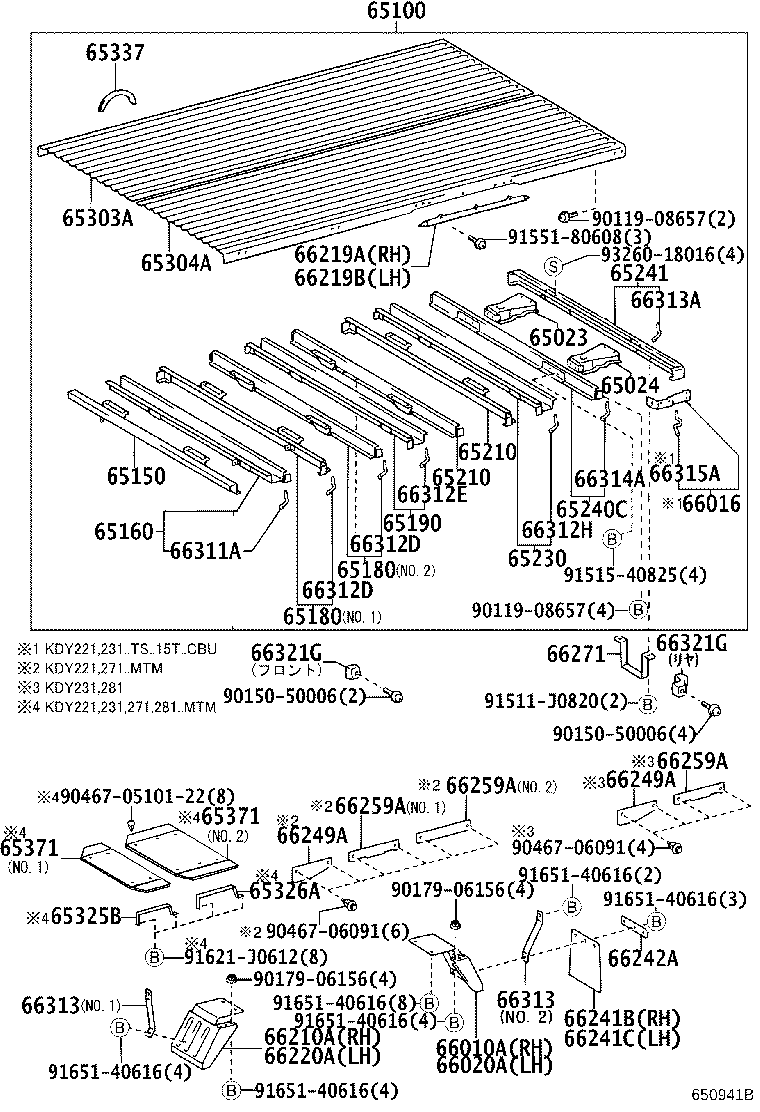

TRY220-TLPDK (2003)
Toyota Dyna/Toyoace
(0107-1004)T2..TS..CBU
ｽﾁ-ﾙﾃﾞｯｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65023 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH | ||||
| 65023-25020 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU |
1 | ||
| 65024 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH | ||||
| 65024-25020 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-2E260 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU *** |
1 | ||
| 65100-2E370 |
TRY220..1T..CBU *** |
1 | ||
| 65100-25C40 |
TRY220..T2..ST..CBU;KDY221..T2..ATM..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65100-25D80 |
TRY220..1T..CBU *** |
1 | ||
| 65100-25C30 |
TRY220..T2..ST..CBU;KDY221..T2..ATM..CBU *** |
1 | ||
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65150-25360 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-25330 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 65160-25370 |
RZY220,TRY220..1T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-25150 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU NO.1 |
1 | ||
| 65180-25160 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU NO.2 |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-25150 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU NO.1 |
1 | ||
| 65180-25160 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU NO.2 |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65210-95A03 |
KDY22#,27#,LY220,270,TRY220..1T..CBU |
1 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65210-95A03 |
KDY22#,27#,LY220,270,TRY220..1T..CBU |
1 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65230-25110 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-25100 |
KDY231..TS..MTM..125T..WT;KDY22#,23#,28#..(T2,TW2)..TS..ATM..CBU;LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..(125T,12T)..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65241-25060 |
KDY221,TRY220..T2..TS..ST..CBU;KDY231,TRY230..T2..TS..WT..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65240-25050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 65241-95A12 |
KDY23#,LY230..T2..TS..WT..CBU;KDY22#,270,LY220,270,RZY220,TRY220..T2..TS..ST..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65317 - PANEL, FLOOR SIDE, RH | ||||
| 65317-25030 |
KDY221,TRY220..T2..TS..CBU |
1 | ||
| 65318 - PANEL, FLOOR SIDE, LH | ||||
| 65318-95041 |
KDY221,271,TRY220..(T2,T3)..TS..CBU |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-25020 |
RZY220,TRY220..T2..TS..CBU NO.1 |
1 | ||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-25020 |
RZY220,TRY220..T2..TS..CBU NO.1 |
1 | ||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-25020 |
RZY220,TRY220..T2..TS..CBU NO.1 |
1 | ||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-25020 |
RZY220,TRY220..T2..TS..CBU NO.1 |
1 | ||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-25070 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-25060 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-95019 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-95021 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 76625-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 76625-25011 |
KDY221,231,281,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 76625-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 76625-25011 |
KDY221,231,281,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-95A00 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-95A01 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95014 |
KDY221,271..T3..TS..MTM..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66311-95011 |
KDY271..TS..125T..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95011 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95011 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66311-95011 |
KDY221..T2..TS..WT..CBU;KDY221,281..T2..ATM..CBU;KDY231,TRY220,230..T2..TS..CBU |
2 | ||
| 66311-95014 |
KDY221..T2..TS..WT..CBU;KDY221,281..T2..ATM..CBU;KDY231,TRY220,230..T2..TS..CBU |
2 | ||
| 66312H - HOOK, ROPE | ||||
| 66311-95011 |
KDY221..TS..ATM..CBU;TRY220..TS..(125T,15T)..CBU;KDY221,271..T3..TS..MTM..CBU;KDY231,281,TRY230..(T3,TW3)..TS..CBU |
2 | ||
| 66311-95014 |
KDY22#..ATM..CBU;LY220,RZY220..TS..15T..CBU;TRY220..TS..(125T,15T)..CBU;LY220,270,RZY220..TS..(125T,12T)..ST..CBU;KDY22#,27#,RZY230..(T3,TW3)..TS..MTM..CBU;KDY23#,28#,LY230,280,TRY230..(T3,TW3)..TS..CBU |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25060 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU ﾘﾔ |
2 | ||
| 66235-25040 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25060 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU ﾘﾔ |
2 | ||
| 66235-25040 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313A - HOOK, ROPE, NO.3 | ||||
| 66311-95707 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 右側 |
1 | ||
| 66312-95012 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 左側 |
1 | ||
| 66314A - HOOK, ROPE, NO.4 | ||||
| 66312-95A01 |
KDY231..TS..MTM..125T..WT;TRY220,230..(T2,TW2)..TS..125T..CBU;KDY22#,23#,28#..(T2,TW2)..TS..ATM..CBU;LY220,230,270,280,RZY220,230..T2..TS..ST..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66331-95010 |
KDY281..T3..TS..ATM..CBU;KDY23#,LY230..T2..TS..WT..CBU;KDY22#,271,LY220,RZY220,TRY220..T3..TS..MTM..CBU;KDY22#,270,LY220,270,RZY220,TRY220..T2..TS..ST..CBU |
2 | ||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66331-95010 |
KDY281..T3..TS..ATM..CBU;KDY23#,LY230..T2..TS..WT..CBU;KDY22#,271,LY220,RZY220,TRY220..T3..TS..MTM..CBU;KDY22#,270,LY220,270,RZY220,TRY220..T2..TS..ST..CBU |
2 | ||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| Common parts | ||||
| 90119-08657 | ||||
| 90150-50006 | ||||
| 90179-06156 | ||||
| 90467-0510122 | ||||
| 90467-06091 | ||||
| 91511-J0820 | ||||
| 91515-40825 | ||||
| 91621-J0612 | ||||
| 91631-40614 | ||||
| 91651-40616 | ||||
| 93260-18016 | ||||
(1004- )T2..TS..CBU
ｽﾁｰﾙﾃﾞｯｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65023 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH | ||||
| 65023-25020 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU |
1 | ||
| 65024 - BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH | ||||
| 65024-25020 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-2E260 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU *** |
1 | ||
| 65100-2E370 |
TRY220..1T..CBU *** |
1 | ||
| 65100-25C40 |
TRY220..T2..ST..CBU;KDY221..T2..ATM..CBU ***,ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65100-25D80 |
TRY220..1T..CBU *** |
1 | ||
| 65100-25C30 |
TRY220..T2..ST..CBU;KDY221..T2..ATM..CBU *** |
1 | ||
| 65150 - SILL ASSY, CROSS, NO.1 | ||||
| 65150-25360 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-25330 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 65160-25370 |
RZY220,TRY220..1T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-25150 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU NO.1 |
1 | ||
| 65180-25160 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU NO.2 |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-25150 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU NO.1 |
1 | ||
| 65180-25160 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU NO.2 |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65210-95A03 |
KDY22#,27#,LY220,270,TRY220..1T..CBU |
1 | ||
| 65210 - SILL ASSY, CROSS, NO.6 | ||||
| 65210-25090 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
2 | ||
| 65210-95A03 |
KDY22#,27#,LY220,270,TRY220..1T..CBU |
1 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65230-25110 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-25100 |
KDY231..TS..MTM..125T..WT;KDY22#,23#,28#..(T2,TW2)..TS..ATM..CBU;LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..(125T,12T)..CBU |
1 | ||
| 65241 - SILL, REAR CROSS | ||||
| 65241-25060 |
KDY221,TRY220..T2..TS..ST..CBU;KDY231,TRY230..T2..TS..WT..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65240-25050 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 65241-95A12 |
KDY23#,LY230..T2..TS..WT..CBU;KDY22#,270,LY220,270,RZY220,TRY220..T2..TS..ST..CBU ﾊﾟﾜ-ﾘﾌﾄ = TECSｶﾀｼｷ -V*CC** |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-25580 |
TRY220..T2..ST..CBU;KDY221..T2..ATM..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-25470 |
TRY220..T2..ST..CBU;KDY221..T2..ATM..CBU |
1 | ||
| 65337 - PLATE, FLOOR SIDE FRAME, RH | ||||
| 65337-25020 |
TRY220..T2..ST..CBU;KDY221..T2..ATM..CBU |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-25020 |
RZY220,TRY220..T2..TS..CBU NO.1 |
1 | ||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-25020 |
RZY220,TRY220..T2..TS..CBU NO.1 |
1 | ||
| 65371-25120 |
RZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU NO.2 |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-25070 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-25060 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-95019 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-25020 |
TRY220..T2..ST..CBU;KDY221..T2..ATM..CBU;KDY231,TRY230..TS..125T..WT |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66229-25010 |
TRY220..T2..ST..CBU;KDY221..T2..ATM..CBU;KDY231,TRY230..TS..125T..WT |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-95021 |
KDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 76625-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU |
1 | ||
| 76625-25011 |
KDY221,231,281,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 76625-25010 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 76625-25011 |
KDY221,231,281,TRY220,230..T2..TS..ST..CBU |
1 | ||
| 66242A - PLATE, BAFFLE RUBBER | ||||
| 66242-95A00 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-95A01 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95014 |
KDY221,271..T3..TS..MTM..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66311-95011 |
KDY271..TS..125T..CBU;KDY221,231,281,TRY220,230..T2..TS..CBU |
2 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95011 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-95014 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66311-95011 |
KDY221,231,281,TRY220,230..T2..TS..CBU |
4 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66311-95011 |
KDY221..T2..TS..WT..CBU;KDY221,281..T2..ATM..CBU;KDY231,TRY220,230..T2..TS..CBU |
2 | ||
| 66311-95014 |
KDY221..T2..TS..WT..CBU;KDY221,281..T2..ATM..CBU;KDY231,TRY220,230..T2..TS..CBU |
2 | ||
| 66312H - HOOK, ROPE | ||||
| 66311-95011 |
KDY221..TS..ATM..CBU;TRY220..TS..(125T,15T)..CBU;KDY221,271..T3..TS..MTM..CBU;KDY231,281,TRY230..(T3,TW3)..TS..CBU |
2 | ||
| 66311-95014 |
KDY22#..ATM..CBU;LY220,RZY220..TS..15T..CBU;TRY220..TS..(125T,15T)..CBU;LY220,270,RZY220..TS..(125T,12T)..ST..CBU;KDY22#,27#,RZY230..(T3,TW3)..TS..MTM..CBU;KDY23#,28#,LY230,280,TRY230..(T3,TW3)..TS..CBU |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25060 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU ﾘﾔ |
2 | ||
| 66235-25040 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66236-25060 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU ﾘﾔ |
2 | ||
| 66235-25040 |
KDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313A - HOOK, ROPE, NO.3 | ||||
| 66311-95707 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 右側 |
1 | ||
| 66312-95012 |
KDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU 左側 |
1 | ||
| 66314A - HOOK, ROPE, NO.4 | ||||
| 66312-95A01 |
KDY231..TS..MTM..125T..WT;TRY220,230..(T2,TW2)..TS..125T..CBU;KDY22#,23#,28#..(T2,TW2)..TS..ATM..CBU;LY220,230,270,280,RZY220,230..T2..TS..ST..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66331-95010 |
KDY281..T3..TS..ATM..CBU;KDY23#,LY230..T2..TS..WT..CBU;KDY22#,271,LY220,RZY220,TRY220..T3..TS..MTM..CBU;KDY22#,270,LY220,270,RZY220,TRY220..T2..TS..ST..CBU |
2 | ||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66331-95010 |
KDY281..T3..TS..ATM..CBU;KDY23#,LY230..T2..TS..WT..CBU;KDY22#,271,LY220,RZY220,TRY220..T3..TS..MTM..CBU;KDY22#,270,LY220,270,RZY220,TRY220..T2..TS..ST..CBU |
2 | ||
| 66321-25020 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾘﾔ |
2 | ||
| 66331-95010 |
KDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU ﾌﾛﾝﾄ |
2 | ||
| Common parts | ||||
| 90119-08657 | ||||
| 90150-50006 | ||||
| 90179-06156 | ||||
| 90467-0510122 | ||||
| 90467-06091 | ||||
| 91511-J0820 | ||||
| 91515-40825 | ||||
| 91551-80608 | ||||
| 91621-J0612 | ||||
| 91651-40616 | ||||
| 93260-18016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
