TRY220-TLPDK (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999
Engine 1TRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )TRY220,230..ATM..125T

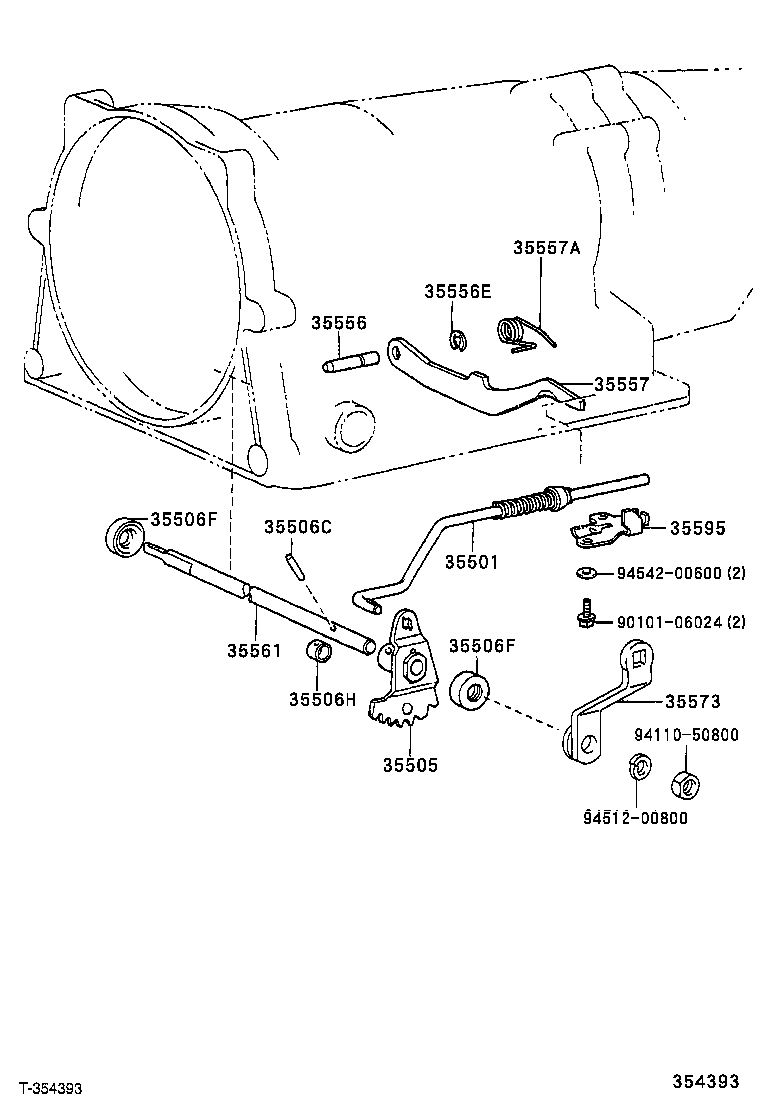

Click highlighted areas on diagram

A45DE

diagram 35501 35505 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35561 35573 35595 9010106024 9411050800 9451200800 9454200600
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-26020

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22020

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11003

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11003

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 2
35556 - SHAFT, PARKING LOCK PAWL
35556-26010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

KDY22#,23#,28#,LY220,230,280,RZY220,230,TRY220,230..ATM..(125T,1T)..ST

 1
35557 - PAWL, PARKING LOCK
35557-26040

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21001

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-30060

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH
35573-25020

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-26010

LY220,230,280,RZY220,230,TRY220,230..TS..ATM

 1
Common parts
90101-06024
94110-50800
94512-00800
94542-00600
