TRY220-TLMGK3 (2003)
Toyota Dyna/Toyoace
(0107-0709)KDY280,LY230,280,RZY230,TRY230..T2,T3,TW3..125T,1T ; (0107-0709)KDY220,2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37012B0 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37110B0 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-25030C0 |
KDY281,TRY230..TW1;KDY231,TRY230..TB..125T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..15T..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 46210-37111C0 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 BLACK,TRIM1# |
1 | ||
| 46210-37111B0 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 DK.CHARCOAL,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-37020B0 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 DK.CHARCOAL,TRIM1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25230 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 |
1 | ||
| 46410-25150 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220..WT |
1 | ||
| 46410-25151 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2;KDY221,231,241,271,281,TRY231,281 |
3 | ||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2;KDY221,231,241,271,281,TRY231,281 |
3 | ||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2;KDY221,231,241,271,281,TRY231,281 |
3 | ||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2;KDY221,231,241,271,281,TRY231,281 |
3 | ||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 |
4 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-25050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 33826-37210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90206-09001 | ||||
| 90468-06068 | ||||
| 90468-14033 | ||||
| 90468-14039 | ||||
| 90949-01167 | ||||
| 90949-01359 | ||||
| 91611-G0612 | ||||
| 91622-G1014 | ||||
| 91641-K0822 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

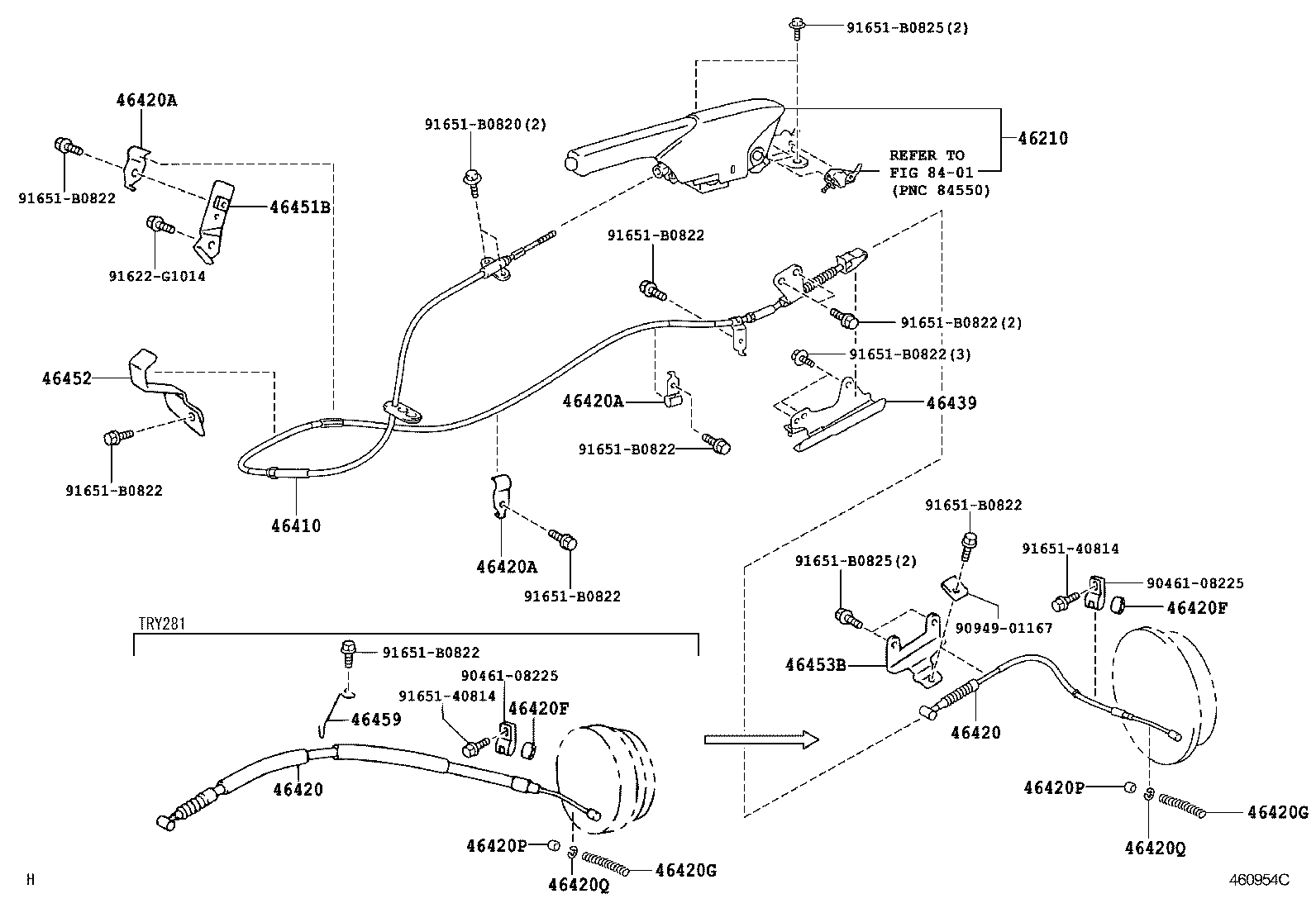

ILLUST NO. 1 OF 2(0708- )TRY230..15T ; (0708- )TRY230..TW1,TW2 ; (0708- )TRY220,231,281..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37012B0 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37110B0 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-25030C0 |
KDY281,TRY230..TW1;KDY231,TRY230..TB..125T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..15T..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 46210-37111C0 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 BLACK,TRIM1# |
1 | ||
| 46210-37111B0 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 DK.CHARCOAL,TRIM1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25230 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 |
1 | ||
| 46410-25150 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220..WT |
1 | ||
| 46410-25151 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2;KDY221,231,241,271,281,TRY231,281 |
3 | ||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2;KDY221,231,241,271,281,TRY231,281 |
3 | ||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 |
4 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2;KDY221,231,241,271,281,TRY231,281 |
3 | ||
| 46411-25010 |
TRY220..WT;TRY230..15T;TRY230..TW1,TW2 |
4 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY23#,281,LY230,RZY230,TRY230..12T,15T,175T;KDY23#,281,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY22#,24#,290,LY220,240,290,RZY220,231,281,TRY220,231,281..WT |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46408-25020 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 |
1 | ||
| 46408-25010 |
TRY230..15T;TRY230..TW1,TW2;RZY231,281,TRY220..WT |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-25050 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 33826-37210 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 46453B - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-25040 |
KDY280,LY280..TB;KDY280,LY280..TW1;KDY230,LY230,RZY230,TRY230..12T,15T,175T;KDY230,LY230,RZY230,TRY230..(TW1,TW2,TW4)..125T;KDY220,240,290,LY220,240,290,RZY220,231,281,TRY220..WT |
1 | ||
| 46453-25070 |
KDY231,281,TRY230..15T;KDY221,241,TRY220,231,281..WT;KDY231,281,TRY230..TW1,TW2,TW4 |
1 | ||
| Common parts | ||||
| 90461-08225 | ||||
| 90949-01167 | ||||
| 91622-G1014 | ||||
| 91651-40814 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
