TRY220-TLMEK (2003)
Toyota Dyna/Toyoace
(0308- )1TR#

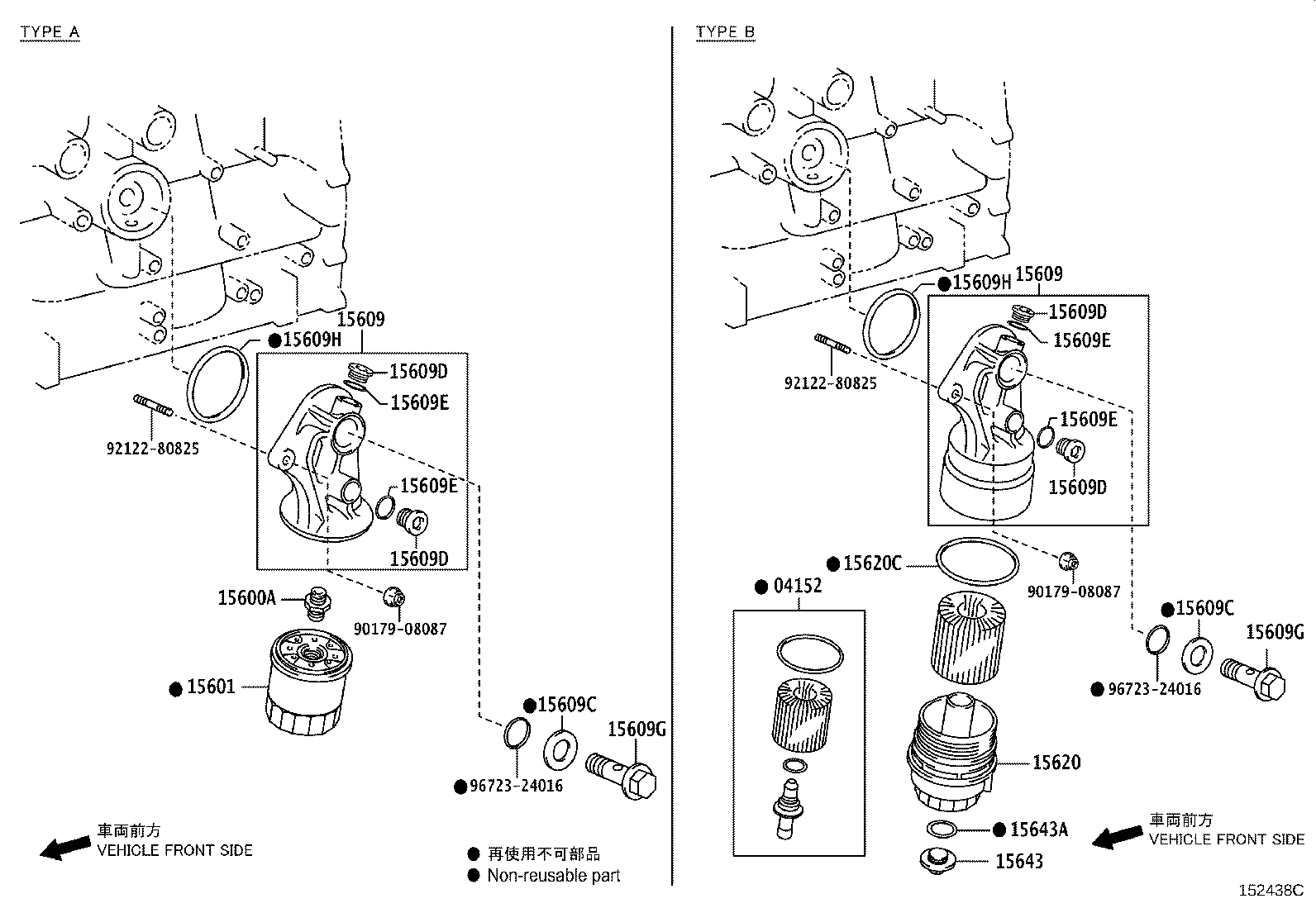

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04152 - ELEMENT KIT, OIL FILTER | ||||
| 04152-38010 |
1TRFE..TRY220,230 |
1 | ||
| 04152-31060 |
1TRFE..TRY220,230 |
1 | ||
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90404-19015 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-20003 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-75080 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15609-75050 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-75080 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15609-75050 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 15609C - GASKET(FOR OIL FILTER BRACKET UNION) | ||||
| 90430-28004 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90430-28004 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15609C - GASKET(FOR OIL FILTER BRACKET UNION) | ||||
| 90430-28004 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90430-28004 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16023 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90341-16023 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16023 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90341-16023 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16023 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90341-16023 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-16023 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90341-16023 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-16009 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90430-16009 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-16009 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90430-16009 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-16009 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90430-16009 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-16009 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90430-16009 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 15609G - BOLT, UNION(FOR OIL FILTER BRACKET) | ||||
| 90401-19005 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90401-19005 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15609G - BOLT, UNION(FOR OIL FILTER BRACKET) | ||||
| 90401-19005 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90401-19005 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 90301-68005 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90301-68005 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15609H - RING, O(FOR OIL FILTER BRACKET) | ||||
| 90301-68005 |
1TRFE..TRY220,230 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90301-68005 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-31050 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 90301-79006 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15643 - PLUG, OIL FILTER DRAIN | ||||
| 15643-31050 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15643-31040 |
1TRFE..TRY220,230 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 15643A - RING, O(FOR OIL FILTER DRAIN PLUG) | ||||
| 96723-35028 |
1TR#..TRY220,23#,281 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90179-08087 | ||||
| 92122-80825 | ||||
| 96723-24016 | ||||
