Toyota Dyna/toyoace TRY220 EXHAUST PIPE

TRY220-TLMDK3 (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 9999

Engine 1TRFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0308-0708)1TRFE..TRY220

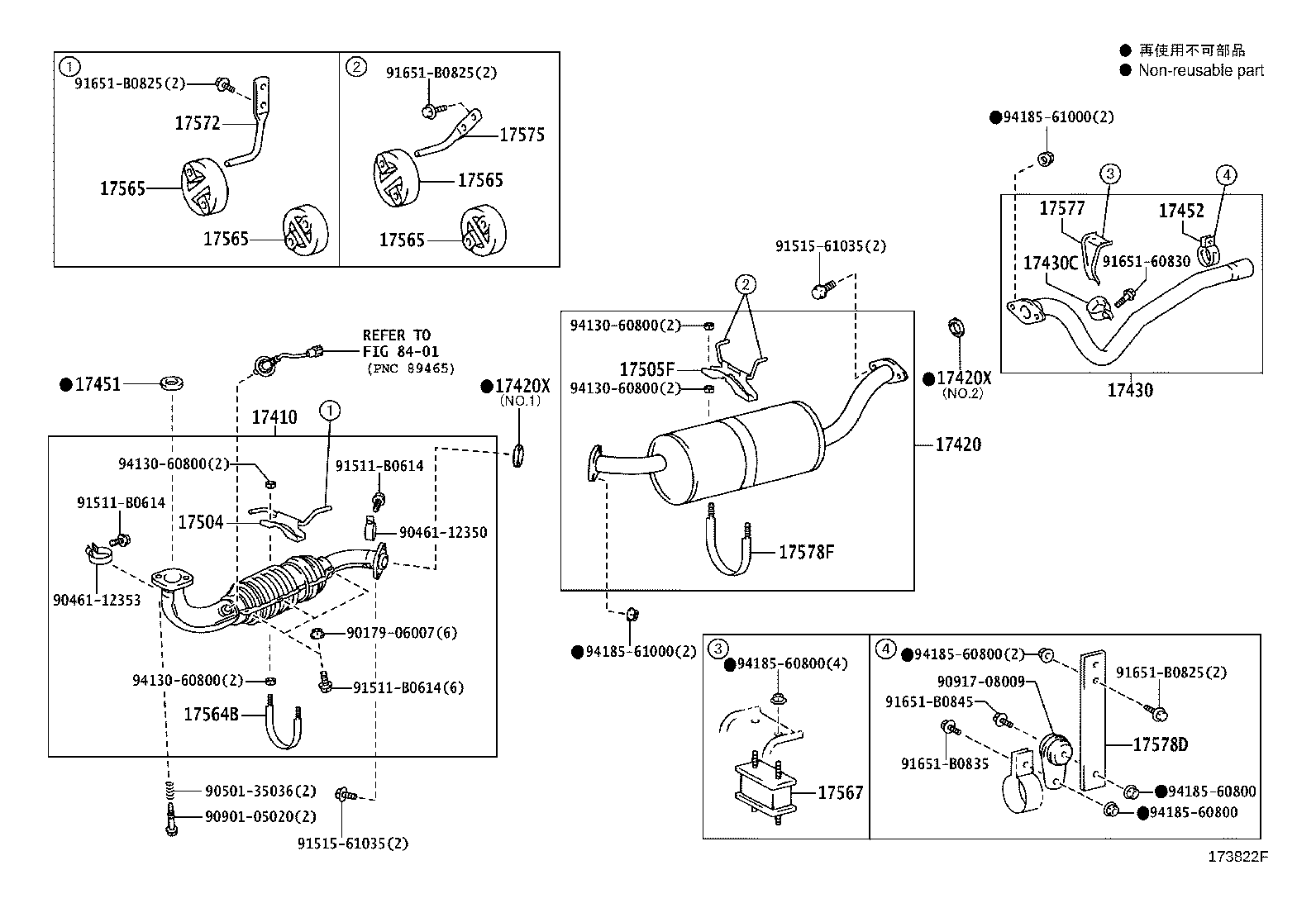

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-75410	1TRFE..TRY220	08/2003 - 08/2007	1
17410-75570	1TRFE..TRY220	08/2007 - 12/2999	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-75410	3RZFPE,1TR#..RZY231,281,TRY220,23#,281	08/2003 - 12/2999	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078	5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2	07/2001 - 12/2999	1
90917-06045	5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1	07/2001 - 12/2999	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078	5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2	07/2001 - 12/2999	1
90917-06045	5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1	07/2001 - 12/2999	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-75600	2KDFTV,1RZE,3RZFPE,1TR#..KDY220,230,270,280,LY230,280,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
90461-32007	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17451 - GASKET, EXHAUST PIPE
17451-74040	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
17452 - CLAMP, EXHAUST PIPE
17452-54011	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-75030	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
17505F - SUPPORT SUB-ASSY, EXHAUST PIPE
17505-54240	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17564B - SUPPORT, CATALYTIC CONVERTER
17564-75070	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290	2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 04/2007	4
17565-31040	2KDFTV,3RZFPE,1TR#..KDY220,230,240,270,280,290,RZY231,281,TRY220,23#,281	05/2007 - 12/2999	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290	2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 04/2007	4
17565-31040	2KDFTV,3RZFPE,1TR#..KDY220,230,240,270,280,290,RZY231,281,TRY220,23#,281	05/2007 - 12/2999	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290	2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 04/2007	4
17565-31040	2KDFTV,3RZFPE,1TR#..KDY220,230,240,270,280,290,RZY231,281,TRY220,23#,281	05/2007 - 12/2999	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290	2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 04/2007	4
17565-31040	2KDFTV,3RZFPE,1TR#..KDY220,230,240,270,280,290,RZY231,281,TRY220,23#,281	05/2007 - 12/2999	4
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-35010	1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-54270	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-71050	1TR#..TRY220,23#,281	07/2001 - 07/2010	1
17575-30030	1KDFTV,1TR#..KDY221,231,241,271,281,TRY220,23#,281	08/2010 - 12/2999	1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-54050	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-54020	1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17578F - CLAMP, PIPE(FOR CENTER PIPE)
17578-54030	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
Common parts
90179-06007
90461-12350
90461-12353
90501-35036
90901-05020
90917-08009
91511-B0614
91515-61035
91651-60830
91651-B0825
91651-B0835
91651-B0845
94130-60800
94185-60800
94185-61000
Linked diagrams
8401

(0708- )1TRFE..TRY220

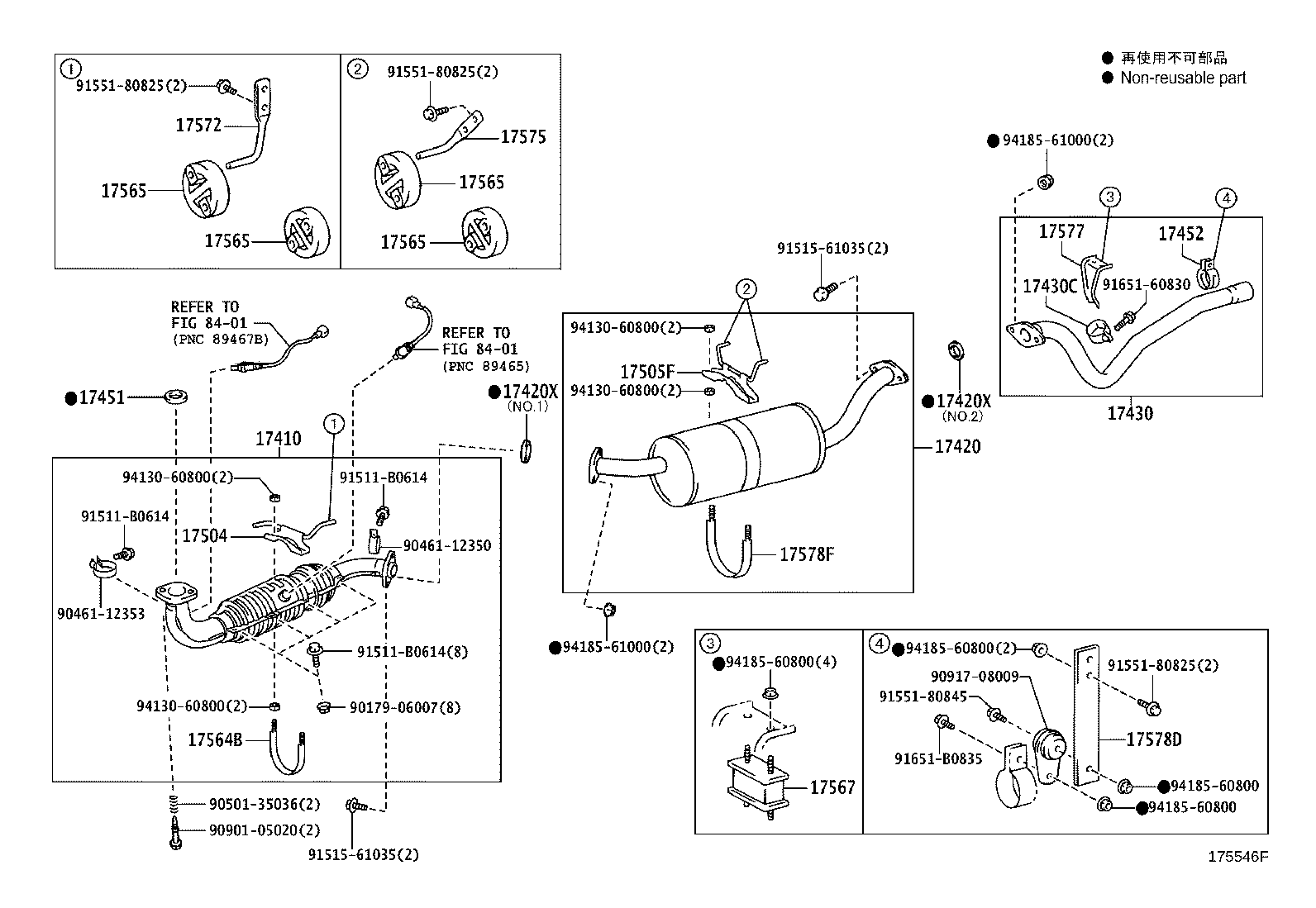

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-75410	1TRFE..TRY220	08/2003 - 08/2007	1
17410-75570	1TRFE..TRY220	08/2007 - 12/2999	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-75410	3RZFPE,1TR#..RZY231,281,TRY220,23#,281	08/2003 - 12/2999	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078	5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2	07/2001 - 12/2999	1
90917-06045	5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1	07/2001 - 12/2999	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06078	5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.2	07/2001 - 12/2999	1
90917-06045	5L,1RZE,3RZFPE,1TR#..LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 NO.1	07/2001 - 12/2999	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-75600	2KDFTV,1RZE,3RZFPE,1TR#..KDY220,230,270,280,LY230,280,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
90461-32007	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17451 - GASKET, EXHAUST PIPE
17451-74040	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
17452 - CLAMP, EXHAUST PIPE
17452-54011	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-75030	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
17505F - SUPPORT SUB-ASSY, EXHAUST PIPE
17505-54240	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17564B - SUPPORT, CATALYTIC CONVERTER
17564-75070	1TR#..TRY220,23#,281	08/2003 - 12/2999	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290	2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 04/2007	4
17565-31040	2KDFTV,3RZFPE,1TR#..KDY220,230,240,270,280,290,RZY231,281,TRY220,23#,281	05/2007 - 12/2999	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290	2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 04/2007	4
17565-31040	2KDFTV,3RZFPE,1TR#..KDY220,230,240,270,280,290,RZY231,281,TRY220,23#,281	05/2007 - 12/2999	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290	2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 04/2007	4
17565-31040	2KDFTV,3RZFPE,1TR#..KDY220,230,240,270,280,290,RZY231,281,TRY220,23#,281	05/2007 - 12/2999	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74290	2KDFTV,5L,1RZE,3RZFPE,1TRFE..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 04/2007	4
17565-31040	2KDFTV,3RZFPE,1TR#..KDY220,230,240,270,280,290,RZY231,281,TRY220,23#,281	05/2007 - 12/2999	4
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-35010	1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-54270	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-71050	1TR#..TRY220,23#,281	07/2001 - 07/2010	1
17575-30030	1KDFTV,1TR#..KDY221,231,241,271,281,TRY220,23#,281	08/2010 - 12/2999	1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-54050	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-54020	1KDFTV,2KDFTV..KDY22#;1KDFTV,2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
17578F - CLAMP, PIPE(FOR CENTER PIPE)
17578-54030	2KDFTV,5L,1RZE,3RZFPE,1TR#..KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
Common parts
90179-06007
90461-12350
90461-12353
90501-35036
90901-05020
90917-08009
91511-B0614
91515-61035
91551-80825
91551-80845
91651-60830
91651-B0835
94130-60800
94185-60800
94185-61000
Linked diagrams
8401
