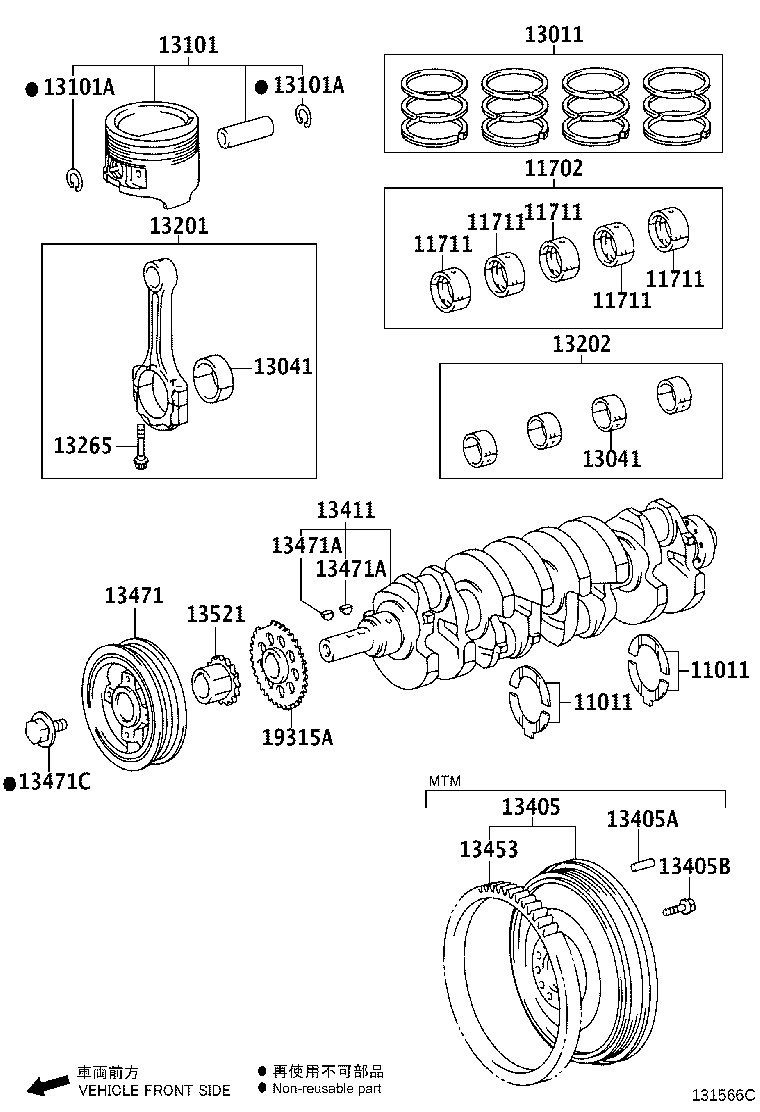

TRY220-TLMDK3 (2003)
Toyota Dyna/Toyoace
(0308- )1TR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-75020 |
1TR#..TRY220,23#,281 STD |
2 | ||
| 11011-75020 |
1TRFE..TRY220,230 STD |
1 | ||
| 11011-75021 |
1TRFE..TRY220,230 STD |
2 | ||
| 11011-75020 |
1TR#..TRY220,23#,281 STD |
2 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-75020 |
1TR#..TRY220,23#,281 STD |
2 | ||
| 11011-75020 |
1TRFE..TRY220,230 STD |
1 | ||
| 11011-75021 |
1TRFE..TRY220,230 STD |
2 | ||
| 11011-75020 |
1TR#..TRY220,23#,281 STD |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-75032 |
1TR#..TRY220,23#,281 U/S 0.25 |
1 | ||
| 11704-75033 |
1TRFE..TRY220,230 U/S 0.25 |
1 | ||
| 11704-75031 |
1TR#..TRY220,23#,281 U/S 0.25 |
1 | ||
| 11704-75034 |
1TR#..TRY220,23#,281 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503001 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503002 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503003 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503102 |
1TR#..TRY220,23#,281 MARK2 |
5 | ||
| 11701-7503201 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503203 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503202 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503205 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 11701-7503204 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503101 |
1TR#..TRY220,23#,281 MARK1 |
5 | ||
| 11701-7503103 |
1TR#..TRY220,23#,281 MARK3 |
5 | ||
| 11701-7503303 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503301 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503402 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503302 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503401 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503304 |
1TRFE..TRY220,230 MARK 4 |
5 | ||
| 11701-7503404 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503305 |
1TRFE..TRY220,230 MARK 5 |
5 | ||
| 11701-7503403 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503405 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503001 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503002 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503003 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503102 |
1TR#..TRY220,23#,281 MARK2 |
5 | ||
| 11701-7503201 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503203 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503202 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503205 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 11701-7503204 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503101 |
1TR#..TRY220,23#,281 MARK1 |
5 | ||
| 11701-7503103 |
1TR#..TRY220,23#,281 MARK3 |
5 | ||
| 11701-7503303 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503301 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503402 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503302 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503401 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503304 |
1TRFE..TRY220,230 MARK 4 |
5 | ||
| 11701-7503404 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503305 |
1TRFE..TRY220,230 MARK 5 |
5 | ||
| 11701-7503403 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503405 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503001 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503002 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503003 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503102 |
1TR#..TRY220,23#,281 MARK2 |
5 | ||
| 11701-7503201 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503203 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503202 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503205 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 11701-7503204 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503101 |
1TR#..TRY220,23#,281 MARK1 |
5 | ||
| 11701-7503103 |
1TR#..TRY220,23#,281 MARK3 |
5 | ||
| 11701-7503303 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503301 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503402 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503302 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503401 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503304 |
1TRFE..TRY220,230 MARK 4 |
5 | ||
| 11701-7503404 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503305 |
1TRFE..TRY220,230 MARK 5 |
5 | ||
| 11701-7503403 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503405 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503001 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503002 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503003 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503102 |
1TR#..TRY220,23#,281 MARK2 |
5 | ||
| 11701-7503201 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503203 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503202 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503205 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 11701-7503204 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503101 |
1TR#..TRY220,23#,281 MARK1 |
5 | ||
| 11701-7503103 |
1TR#..TRY220,23#,281 MARK3 |
5 | ||
| 11701-7503303 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503301 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503402 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503302 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503401 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503304 |
1TRFE..TRY220,230 MARK 4 |
5 | ||
| 11701-7503404 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503305 |
1TRFE..TRY220,230 MARK 5 |
5 | ||
| 11701-7503403 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503405 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7503001 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503002 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503003 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503102 |
1TR#..TRY220,23#,281 MARK2 |
5 | ||
| 11701-7503201 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503203 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503202 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503205 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 11701-7503204 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503101 |
1TR#..TRY220,23#,281 MARK1 |
5 | ||
| 11701-7503103 |
1TR#..TRY220,23#,281 MARK3 |
5 | ||
| 11701-7503303 |
1TRFE..TRY220,230 MARK 3 |
5 | ||
| 11701-7503301 |
1TRFE..TRY220,230 MARK 1 |
5 | ||
| 11701-7503402 |
1TR#..TRY220,23#,281 MARK 2 |
5 | ||
| 11701-7503302 |
1TRFE..TRY220,230 MARK 2 |
5 | ||
| 11701-7503401 |
1TR#..TRY220,23#,281 MARK 1 |
5 | ||
| 11701-7503304 |
1TRFE..TRY220,230 MARK 4 |
5 | ||
| 11701-7503404 |
1TR#..TRY220,23#,281 MARK 4 |
5 | ||
| 11701-7503305 |
1TRFE..TRY220,230 MARK 5 |
5 | ||
| 11701-7503403 |
1TR#..TRY220,23#,281 MARK 3 |
5 | ||
| 11701-7503405 |
1TR#..TRY220,23#,281 MARK 5 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-75100 |
1TRFE..TRY220,230 STD |
1 | ||
| 13013-75100 |
1TRFE..TRY220,230 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7503004 |
1TRFE..TRY220,230 MARK 4 |
4 | ||
| 13041-7503006 |
1TRFE..TRY220,230 MARK 6 |
4 | ||
| 13041-7505005 |
1TR#..TRY220,23#,281 MARK5 |
4 | ||
| 13041-7505204 |
1TR#..TRY220,23#,281 MARK 4 |
4 | ||
| 13041-7505006 |
1TR#..TRY220,23#,281 MARK6 |
4 | ||
| 13041-7505205 |
1TR#..TRY220,23#,281 MARK 5 |
4 | ||
| 13041-7503005 |
1TRFE..TRY220,230 MARK 5 |
4 | ||
| 13041-7505206 |
1TR#..TRY220,23#,281 MARK 6 |
4 | ||
| 13041-7505004 |
1TR#..TRY220,23#,281 MARK4 |
4 | ||
| 13041-7507006 |
1TR#..TRY220,23#,281 MARK 6 |
4 | ||
| 13041-7507005 |
1TR#..TRY220,23#,281 MARK 5 |
4 | ||
| 13041-7507004 |
1TR#..TRY220,23#,281 MARK 4 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7503004 |
1TRFE..TRY220,230 MARK 4 |
4 | ||
| 13041-7503006 |
1TRFE..TRY220,230 MARK 6 |
4 | ||
| 13041-7505005 |
1TR#..TRY220,23#,281 MARK5 |
4 | ||
| 13041-7505204 |
1TR#..TRY220,23#,281 MARK 4 |
4 | ||
| 13041-7505006 |
1TR#..TRY220,23#,281 MARK6 |
4 | ||
| 13041-7505205 |
1TR#..TRY220,23#,281 MARK 5 |
4 | ||
| 13041-7503005 |
1TRFE..TRY220,230 MARK 5 |
4 | ||
| 13041-7505206 |
1TR#..TRY220,23#,281 MARK 6 |
4 | ||
| 13041-7505004 |
1TR#..TRY220,23#,281 MARK4 |
4 | ||
| 13041-7507006 |
1TR#..TRY220,23#,281 MARK 6 |
4 | ||
| 13041-7507005 |
1TR#..TRY220,23#,281 MARK 5 |
4 | ||
| 13041-7507004 |
1TR#..TRY220,23#,281 MARK 4 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-75120 |
1TRFE..TRY220,230 STD |
4 | ||
| 13103-75120 |
1TRFE..TRY220,230 O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
1TR#..TRY220,23#,281 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
1TR#..TRY220,23#,281 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-79455 |
1TRFE..TRY220,230 |
1 | ||
| 13201-79478 |
1TR#..TRY220,23#,281 |
4 | ||
| 13201-79476 |
1TR#..TRY220,23#,281 |
4 | ||
| 13201-79477 |
1TR#..TRY220,23#,281 |
4 | ||
| 13201-79455 |
1TRFE..TRY220,230 |
4 | ||
| 13201-79479 |
1TR#..TRY220,23#,281 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-75052 |
1TR#..TRY220,23#,281 U/S 0.25 |
1 | ||
| 13204-75050 |
1TR#..TRY220,23#,281 U/S 0.25 |
1 | ||
| 13204-75030 |
1TRFE..TRY220,230 U/S 0.25 |
1 | ||
| 13204-75070 |
1TR#..TRY220,23#,281 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28020 |
1TR#..TRY220,23#,281 |
8 | ||
| 13265-28010 |
1TR#..TRY220,23#,281 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-75050 |
1TR#..TRY220,23#,281..MTM |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
1TR#..TRY220,23#,281..MTM 長さ=23,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90910-02116 |
1TR#..TRY220,23#,281..MTM |
10 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-75010 |
1TR#..TRY220,23#,281 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
1TR#..TRY220,23#,281..MTM |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-75040 |
1TRFE..TRY220,230 |
1 | ||
| 13408-75050 |
1TR#..TRY220,23#,281 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
1TR#..TRY220,23#,281 |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
1TR#..TRY220,23#,281 |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16041 |
1TR#..TRY220,23#,281 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-75021 |
1TR#..TRY220,23#,281 |
1 | ||
| 13521-75020 |
1TR#..TRY220,23#,281 |
1 | ||
| 19315A - ROTOR, CRANK POSITION SENSOR | ||||
| 19315-75020 |
1TR#..TRY220,23#,281 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
