TRY220-PSMBK (2003)

Toyota Dyna/Toyoace

Production Aug 2003 - Sep 2016
Engine 1TRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0709)KDY280,LY230,280,RZY230,TRY230..T2,T3,TW3..125T,1T ; (0107-0709)KDY220,2

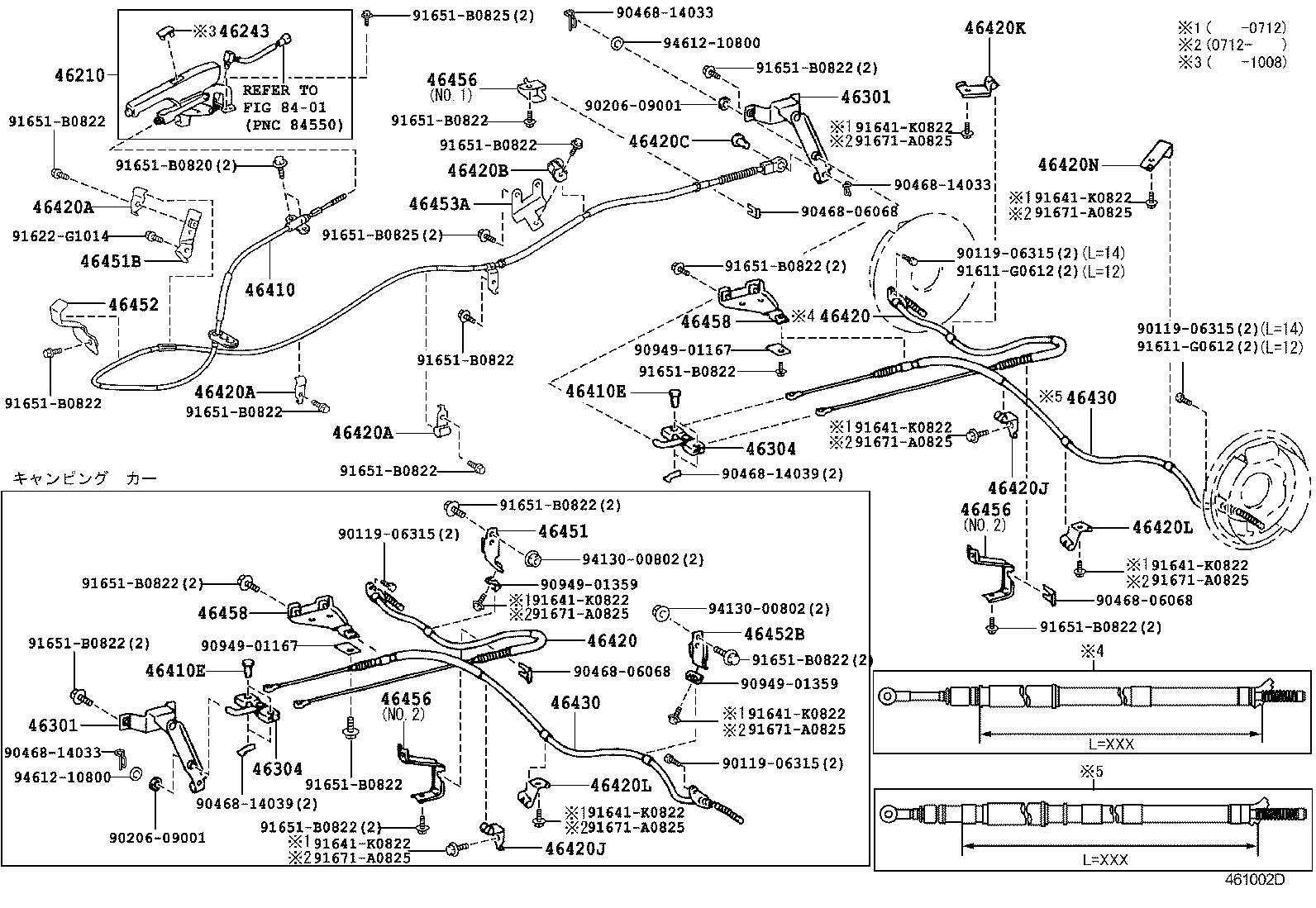

Click highlighted areas on diagram

diagram 46210 46243 46301 46301 46304 46304 46410 46410E 46410E 46420 46420 46420A 46420A 46420A 46420A 46420B 46420C 46420J 46420J 46420K 46420L 46420L 46420N 46430 46430 46451 46451B 46452 46452B 46453A 46456 46456 46456 46458 46458 8401 9011906315 9011906315 9011906315 9011906315 9020609001 9020609001 9046806068 9046806068 9046806068 9046814033 9046814033 9046814033 9046814039 9046814039 9094901167 9094901167 9094901359 9094901359 91611G0612 91611G0612 91622G1014 91641K0822 91641K0822 91641K0822 91641K0822 91641K0822 91641K0822 91641K0822 91641K0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0825 91651B0825 9413000802 9413000802 9461210800 9461210800
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-37012B0

KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281

DK.CHARCOAL,TRIM1#

 1
46210-25030B0

KDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T)

DK.CHARCOAL,TRIM1#

 1
46210-25030C0

TRY230..IV6;KDY231..WT..IV6;KDY221,271,TRY220..ST;KDY231..TS..(125T,1T);KDY281..(T2,T3,TW3)..(125T,1T);TRY230..(T2,T3,TW2,TW3)..TS..(125T,1T)..(CBU,IV3)

BLACK,TRIM1#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-37020B0

KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281

DK.CHARCOAL,TRIM1#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46320-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46320-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-25240

KDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T)

 1
46410-25190

KDY280,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,270,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)
90240-10044

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 2
46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)
90240-10044

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 2
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-25390

KDY22#,27#,LY220,270,RZY220,TRY220..T3,TW1

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-25390

KDY22#,27#,LY220,270,RZY220,TRY220..T3,TW1

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST

 3
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 4
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST

 3
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 4
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST

 3
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 4
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST

 3
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 4
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-60040

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08017

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46411-25030

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46411-25030

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46421-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46431-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46431-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE)
46431-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-25090

KDY22#,27#,LY220,270,RZY220,TRY220..T3,TW1

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-25090

KDY22#,27#,LY220,270,RZY220,TRY220..T3,TW1

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-25050

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
33826-37210

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-25040

KDY280,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,270,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46453-25070

KDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T)

 1
46456 - BRACKET, CABLE RETAINING
46457-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.2

 1
46456-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.1

 1
46456 - BRACKET, CABLE RETAINING
46457-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.2

 1
46456-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.1

 1
46456 - BRACKET, CABLE RETAINING
46457-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.2

 1
46456-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.1

 1
46458 - RETAINER, CABLE
46458-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46458 - RETAINER, CABLE
46458-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
Common parts
90119-06315
90206-09001
90468-06068
90468-14033
90468-14039
90949-01167
90949-01359
91611-G0612
91622-G1014
91641-K0822
91651-B0822
91651-B0825
94130-00802
94612-10800
Linked diagrams
8401

(0709- )TRY220..ST ; (0709- )TRY230..T2,T3,TW3..TS..ST

Click highlighted areas on diagram

diagram 46210 46243 46301 46301 46304 46304 46410 46410E 46410E 46420 46420 46420A 46420A 46420A 46420B 46420C 46420J 46420J 46420K 46420L 46420L 46420N 46430 46430 46451 46451B 46452 46452B 46453A 46456 46456 46456 46458 46458 8401 9011906315 9011906315 9011906315 9011906315 9020609001 9020609001 9046806068 9046806068 9046806068 9046814033 9046814033 9046814033 9046814039 9046814039 9094901167 9094901167 9094901359 9094901359 91611G0612 91611G0612 91622G1014 91641K0822 91641K0822 91641K0822 91641K0822 91641K0822 91641K0822 91641K0822 91641K0822 91651B0820 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0825 91651B0825 91671A0825 91671A0825 91671A0825 91671A0825 91671A0825 91671A0825 91671A0825 91671A0825 9413000802 9413000802 9461210800 9461210800
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-37012B0

KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281

DK.CHARCOAL,TRIM1#

 1
46210-25030B0

KDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T)

DK.CHARCOAL,TRIM1#

 1
46210-25030C0

TRY230..IV6;KDY231..WT..IV6;KDY221,271,TRY220..ST;KDY231..TS..(125T,1T);KDY281..(T2,T3,TW3)..(125T,1T);TRY230..(T2,T3,TW2,TW3)..TS..(125T,1T)..(CBU,IV3)

BLACK,TRIM1#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-37020B0

KDY221,231,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,240,27#,280,290,LY220,230,240,270,280,290,RZY220,23#,281

DK.CHARCOAL,TRIM1#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46320-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46320-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-25240

KDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T)

 1
46410-25190

KDY280,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,270,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)
90240-10044

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 2
46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)
90240-10044

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 2
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-25390

KDY22#,27#,LY220,270,RZY220,TRY220..T3,TW1

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-25390

KDY22#,27#,LY220,270,RZY220,TRY220..T3,TW1

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST

 3
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 4
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST

 3
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 4
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST

 3
46411-25010

TRY220..ST;TRY230..(T2,T3,TW3)..TS..ST;KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281

 4
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-60040

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08017

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46411-25030

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46411-25030

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46421-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46431-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46431-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE)
46431-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-25090

KDY22#,27#,LY220,270,RZY220,TRY220..T3,TW1

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-25090

KDY22#,27#,LY220,270,RZY220,TRY220..T3,TW1

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-25050

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
33826-37210

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-25040

KDY280,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY220,230,270,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46453-25070

KDY221,231,271,TRY220..(125T,1T)..ST;KDY281,TRY230..(T2,T3,TW3)..(125T,1T)

 1
46456 - BRACKET, CABLE RETAINING
46457-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.2

 1
46456-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.1

 1
46456 - BRACKET, CABLE RETAINING
46457-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.2

 1
46456-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.1

 1
46456 - BRACKET, CABLE RETAINING
46457-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.2

 1
46456-25020

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

NO.1

 1
46458 - RETAINER, CABLE
46458-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
46458 - RETAINER, CABLE
46458-25010

KDY28#,LY230,280,RZY230,TRY230..(T2,T3,TW3)..(125T,1T);KDY22#,23#,27#,LY220,270,RZY220,TRY220..(125T,12T,1T)..ST

 1
Common parts
90119-06315
90206-09001
90468-06068
90468-14033
90468-14039
90949-01167
90949-01359
91611-G0612
91622-G1014
91641-K0822
91651-B0820
91651-B0822
91651-B0825
91671-A0825
94130-00802
94612-10800
Linked diagrams
8401
