TRY220-PSMBK (2003)
Toyota Dyna/Toyoace

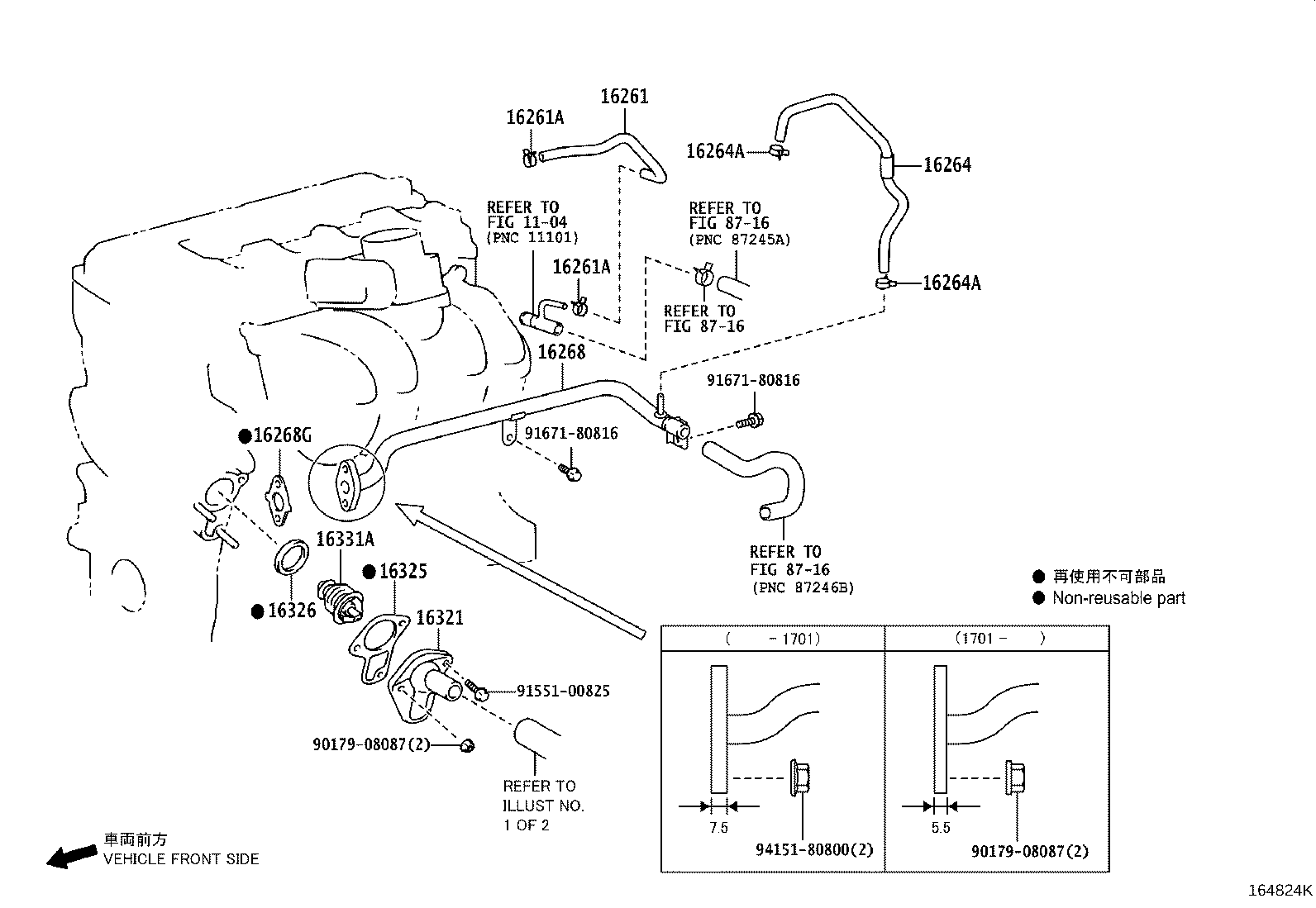

ILLUST NO. 2 OF 2(0308-1105)1TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75140 |
1TRFE..TRY220,230 |
1 | ||
| 16261-75141 |
1TRFE..TRY220,230 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-13003 |
1TRFE..TRY220,230 |
2 | ||
| 96137-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 96136-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-13003 |
1TRFE..TRY220,230 |
2 | ||
| 96137-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 96136-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75080 |
1TRFE..TRY220,230 |
1 | ||
| 16264-75081 |
1TRFE..TRY220,230 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-13003 |
1TRFE..TRY220,230 |
2 | ||
| 96136-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 96137-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-13003 |
1TRFE..TRY220,230 |
2 | ||
| 96136-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 96137-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75091 |
1TRFE..TRY220,230 |
1 | ||
| 16268-75090 |
1TRFE..TRY220,230 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
1TRFE..TRY220,230 |
1 | ||
| 16258-75020 |
1TRFE..TRY220,230 |
1 | ||
| 16258-75021 |
1TR#..TRY220,23#,281 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-75020 |
1TR#..TRY220,23#,281 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-75010 |
1TR#..TRY220,23#,281 |
1 | ||
| 16325-75011 |
1TR#..TRY220,23#,281 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-76010 |
1TR#..TRY220,23#,281 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TR#..TRY220,23#,281 *WAX 82−95 |
1 | ||
| Common parts | ||||
| 90179-08087 | ||||
| 91551-00825 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8716 | ||||

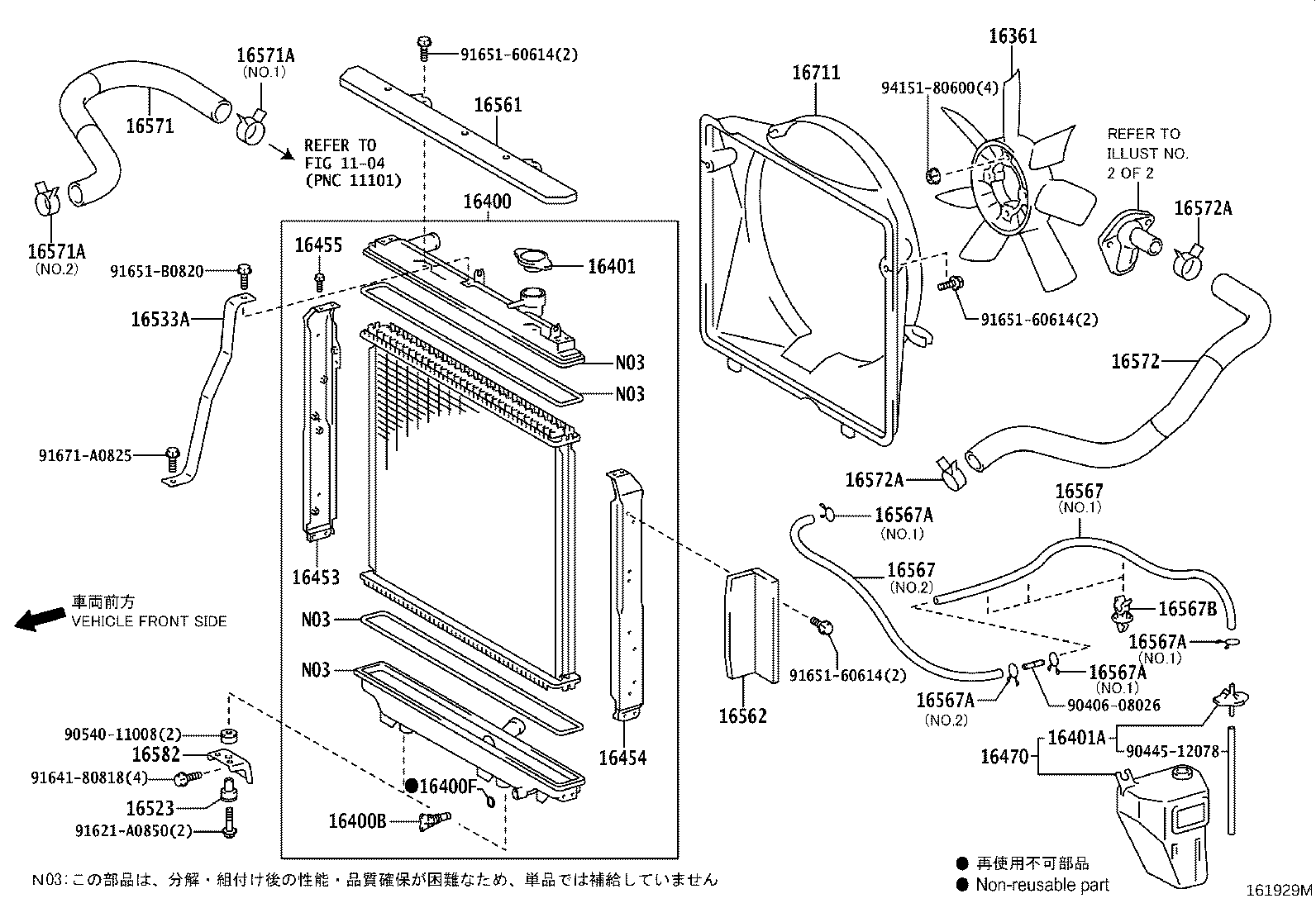

ILLUST NO. 1 OF 2(0308- )1TRFE..TW1,TW2,TW3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-38010 |
1TR#..TRY220,23#,281 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75390 |
1TR#..TRY220,23#,281..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1TR#..TRY220,23#,281 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1TR#..TRY220,23#,281 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-17020 |
1TR#..TRY220,23#,281 |
1 | ||
| 16401-67150 |
1TR#..TRY220,23#,281 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16405-78030 |
1TRFE..TRY220,230..TW1,TW2,TW3 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-75390 |
1TR#..TRY220,23#,281 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-75390 |
1TR#..TRY220,23#,281 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-61160 |
1TR#..TRY220,23#,281 |
8 | ||
| 16455-67020 |
1TR#..TRY220,23#,281 |
8 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54420 |
1TRFE..TRY220,230..TW1,TW2,TW3 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-54050 |
1TR#..TRY220,23#,281 |
2 | ||
| 16533A - SUPPORT, SUB-RADIATOR | ||||
| 16533-54050 |
1TR#..TRY220,23#,281 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-54040 |
1TR#..TRY220,23#,281 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-54010 |
1TR#..TRY220,23#,281 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54180 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.2 |
1 | ||
| 16567-54190 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
1 | ||
| 16567-54191 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
1 | ||
| 16567-54181 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.2 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54180 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.2 |
1 | ||
| 16567-54190 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
1 | ||
| 16567-54191 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
1 | ||
| 16567-54181 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.2 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.2 |
1 | ||
| 90467-11085 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
3 | ||
| 90467-12058 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
3 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.2 |
1 | ||
| 90467-11085 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
3 | ||
| 90467-12058 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
3 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.2 |
1 | ||
| 90467-11085 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
3 | ||
| 90467-12058 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
3 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.2 |
1 | ||
| 90467-11085 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
3 | ||
| 90467-12058 |
1TRFE..TRY220,230..TW1,TW2,TW3 NO.1 |
3 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90469-12009 |
1TRFE..TRY220,230..TW1,TW2,TW3 |
3 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-75241 |
1TR#..TRY220,23#,281 |
1 | ||
| 16571-75240 |
1TRFE..TRY220,230 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1TRFE..TRY220,230 NO.2 |
1 | ||
| 90466-35001 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) NO.1 & NO.2 |
2 | ||
| 90466-35001 |
1TRFE..TRY220,230 NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
1TRFE..TRY220,230 NO.2 |
1 | ||
| 90466-35001 |
1TRFE..TRY230..ST..IV6;1TRFE..TRY230..TB..125T;1TR#..TRY220,23#,281..(T2,T3,T4,TW1,TW3)..(CBU,IV3) NO.1 & NO.2 |
2 | ||
| 90466-35001 |
1TRFE..TRY220,230 NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75250 |
1TR#..TRY220,23#,281 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1TRFE..TRY220,230 |
2 | ||
| 90466-35001 |
1TR#..TRY220,23#,281 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1TRFE..TRY220,230 |
2 | ||
| 90466-35001 |
1TR#..TRY220,23#,281 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-54050 |
1TR#..TRY220,23#,281 |
2 | ||
| Common parts | ||||
| 90406-08026 | ||||
| 90445-12078 | ||||
| 90540-11008 | ||||
| 91621-A0850 | ||||
| 91641-80818 | ||||
| 91651-60614 | ||||
| 91651-B0820 | ||||
| 91671-A0825 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||

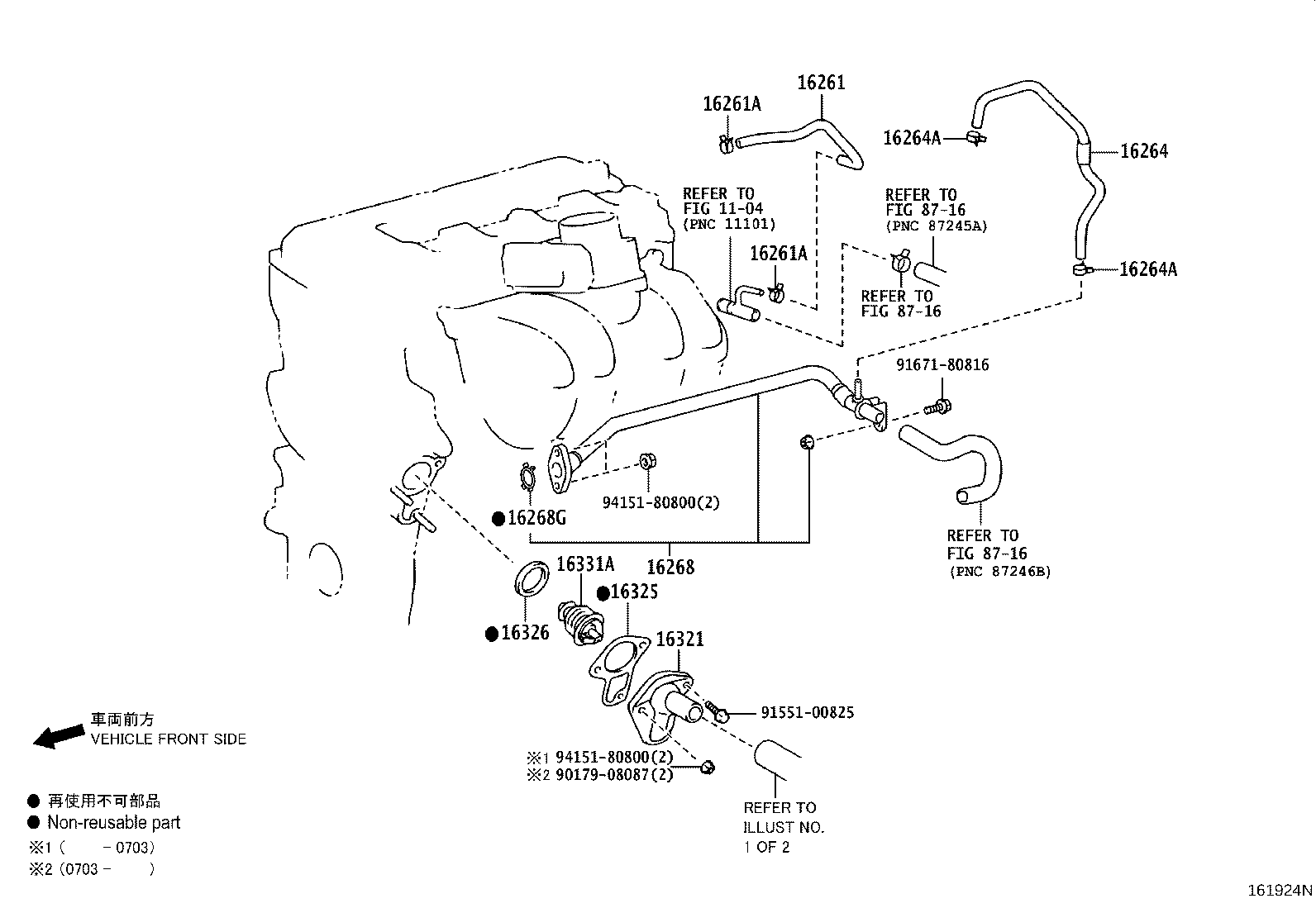

ILLUST NO. 2 OF 2(1105- )1TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75140 |
1TRFE..TRY220,230 |
1 | ||
| 16261-75141 |
1TRFE..TRY220,230 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-13003 |
1TRFE..TRY220,230 |
2 | ||
| 96137-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 96136-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-13003 |
1TRFE..TRY220,230 |
2 | ||
| 96137-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 96136-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75080 |
1TRFE..TRY220,230 |
1 | ||
| 16264-75081 |
1TRFE..TRY220,230 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-13003 |
1TRFE..TRY220,230 |
2 | ||
| 96136-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 96137-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-13003 |
1TRFE..TRY220,230 |
2 | ||
| 96136-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 96137-41501 |
1TR#..TRY220,23#,281 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75091 |
1TRFE..TRY220,230 |
1 | ||
| 16268-75090 |
1TRFE..TRY220,230 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75010 |
1TRFE..TRY220,230 |
1 | ||
| 16258-75020 |
1TRFE..TRY220,230 |
1 | ||
| 16258-75021 |
1TR#..TRY220,23#,281 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-75020 |
1TR#..TRY220,23#,281 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-75010 |
1TR#..TRY220,23#,281 |
1 | ||
| 16325-75011 |
1TR#..TRY220,23#,281 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-76010 |
1TR#..TRY220,23#,281 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1TR#..TRY220,23#,281 *WAX 82−95 |
1 | ||
| Common parts | ||||
| 90179-08087 | ||||
| 91551-00825 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8716 | ||||
